System Sensor 400 series

From The Fire Panel
400 series
System_Sensor_1400_smoke_detector.png: Infobox image for 400 series the infobox device.

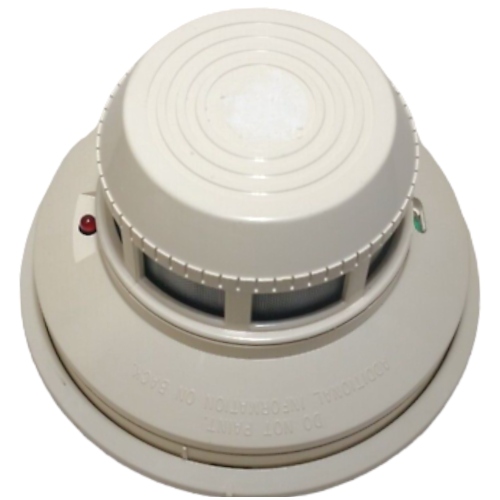

2400.jpg: Infobox image for 400 series the infobox device.
Manufacturer

System Sensor {"label": "Manufacturer", "field": "System Sensor"}

Introduced

1988[1] {"label": "Introduced", "field": "1988[1]"}

Discontinued

2005 (2400 series)
2007, 2008 (1451) {"label": "Discontinued", "field": "2005 (2400 series)
2007, 2008 (1451)"}

Preceded by

BRK 800 series
System Sensor 2300 series {"label": "Preceded by", "field": "BRK 800 series
System Sensor 2300 series"}

Succeeded by

System Sensor 100 series
System Sensor BEAM series
System Sensor FAAST series
System Sensor i3 series {"label": "Succeeded by", "field": "System Sensor 100 series
System Sensor BEAM series
System Sensor FAAST series
System Sensor i3 series"}

{
    "rows": [],
    "title": "400 series",
    "images": [
        "System_Sensor_1400_smoke_detector.png",
        "2400.jpg"
    ]
}

The 400 series is a lineup of conventional detectors produced by System Sensor.

History

The 1400 series ionization smoke detectors were introduced in 1988 and was phased out after 2007, while the 2400 series was introduced in 1988 and was discontinued in 2005. The 2400 replaced the BRK 2800 series and was replaced by the System Sensor i3.

In 1993, duct smoke detectors were released.[2] The 5451 heat detector was also released in 1993.[3]

In 1997, the sounder models of the photoelectric detectors were discontinued due to the release of new 100 series models that produced a temporal 3 pattern.[4]

In 2005, 2400TH, 2412THB, 2424TH, and 2451TH units manufactured between March and September 2004 were recalled.[5][6] Around this time, the photoelectric detectors were discontinued. Direct-Wire models were replaced with the i3 series, while the plug-in models were replaced with the 2151.

In 2006, the 6424 beam detector was discontinued and replaced with the BEAM1224.[7]

In 2007, the Direct-Wire ionization detectors were discontinued and replaced with the plug-in 1451.[8] The 1451 was discontinued at the end of 2008 with no direct replacement.[9]

In 2011, the 5451 was discontinued and replaced with the 5151.[10]

Some say that the 100 series replaced the 400 series, but that is only partially true because the 100 series was produced alongside the 400 series, as a low-profile version.

Models

Ionization smoke detectors

Model Wiring Application Voltage Relay? Replaced Replaced by
1400[11] 2-wire Spot 12 VDC & 24 VDC No 1800 2W-B
B401 + 1451
1412[12] 4-wire Spot 12 VDC Yes 1812 1412B
1412B 4-wire Spot 12 VDC Yes 1112/24D
1412 		4W-B
4WTR-B
1424 4-wire Spot 24 VDC Yes 1824 4W-B
4WTR-B
B402B + 1451
1451[13] Plug-in Spot 24 VDC No 1151
1400 (with B401)
1424 (with B402B)
1851 		2151
8100
1451DH[14] Plug-in Duct 12 VDC & 24 VDC No 1851DH
1451DHHT[15] Plug-in High-temperature duct 24 VAC/VDC & 120 VAC & 220 VAC No None

Photoelectric smoke detectors

Model Wiring Voltage Heat sensor Horn? Replaced Replaced by
2400[16] 2-wire, head wired 12 VDC & 24 VDC None No 2800 2W-B
2400TH 2-wire, head wired 12 VDC & 24 VDC Integral No 2800TH 2WT-B
2400AT 2-wire 24 VDC Integral Yes 2100AT
2400AIT 2-wire 24 VDC Isolated Yes 2112/24AITR
2412 4-wire 12 VDC None No 2812 2412B
2412TH 4-wire 12 VDC Integral No 2312/24T
2812TH 		2412THB
2412B 4-wire, head wired, auxiliary contacts 12 VDC None No 2412 4W-B
4WTR-B
2412THB 4-wire, head wired, auxiliary contacts 12 VDC Integral No 2412TH 4WTR-B
2412AT 4-wire 12 VDC Integral Yes 2112/24ATR
2424 4-wire, head wired, auxiliary contacts 24 VDC None No 2824 4W-B
4WTR-B
2424TH 4-wire, head wired, auxiliary contacts 24 VDC Integral No 2312/24T
2824TH 		4WTR-B
2424AT 4-wire 24 VDC Integral Yes 2112/24ATR
2424AIT 4-wire 24 VDC Isolated Yes 2112/24AITR
2451[17] Plug-in, base wired 24 VDC None No 2851B
2851DH 		2151
2451TH Plug-in, base wired 24 VDC Integral No 2851BTH 2WT-B
4WT-B
2151T

Heat detectors

Model Wiring Voltage Sensitivity Listing Replaced Replaced by
4451HT[18] Plug-in 24 VDC & 120 VAC 190°F / 88°C UL
4451HTA Plug-in 24 VDC & 120 VAC 190°F / 88°C ULC
5451 Plug-in 24 VDC & 120 VAC 135° F / 57.6°C UL 5151

Beam detectors

Model Wiring Voltage Listing Replaced Replaced by
6424[19] 4-wire 24 VDC UL BEAM1224
6424A 4-wire 24 VDC ULC

Duct detectors

Model Sensor type Wiring Voltage High temperature? Listing Replaced Replaced by
DH400I Ionization 2-wire 12 VDC & 24 VDC No UL DH1851DC DH100P
DH400A Ionization 2-wire 12 VDC & 24 VDC No ULC
DH400P Photoelectric 2-wire 12 VDC & 24 VDC No UL DH2851DC DH100P
DH400ACDCI[20] Ionization 4-wire 24 VAC/VDC & 120 VAC & 220/240 VAC No UL DH1851AC
DH1851DC + AR-10 		DH100ACDCI
DH400ACDCA Ionization 4-wire 24 VAC/VDC & 120 VAC & 220/240 VAC No ULC
DH400ACDCP Photoelectric 4-wire 24 VAC/VDC & 120 VAC & 220/240 VAC No UL DH2851AC
DH2851DC + AR-10 		DH100ACDCP
DH400ACDCIHT Ionization 4-wire 24 VAC/VDC & 120 VAC & 220 VAC Yes UL D4120

Rebrands

Faraday

Faraday rebranded 400 series products as part of the 8400 series, 9100 series, and 9300 series until 2004.[21][22]

Fire Control Instruments

FCI model System Sensor model Replaced Replaced by
SBS-1101[23] 1400[24] 1400
SBS-1201 2400 2400
SBS-1201T 2400TH 2400TH
301I[25] 1451 301IL
301I-DH[26] 1451DH
301P[27] 2451 301PL
301PT 2451TH

Fire-Lite Alarms

Fire-Lite model System Sensor model Replaced Replaced by
CP400[28][29] 1400 1400
CP451 1451 1451
SD400 2400 SD800 2400
SD400T 2400TH 2400TH
SD451 2451 2451
SD451T 2451TH 2451TH

Honeywell

Honeywell model System Sensor model Replaced Replaced by
TC805C1000[30] 1451

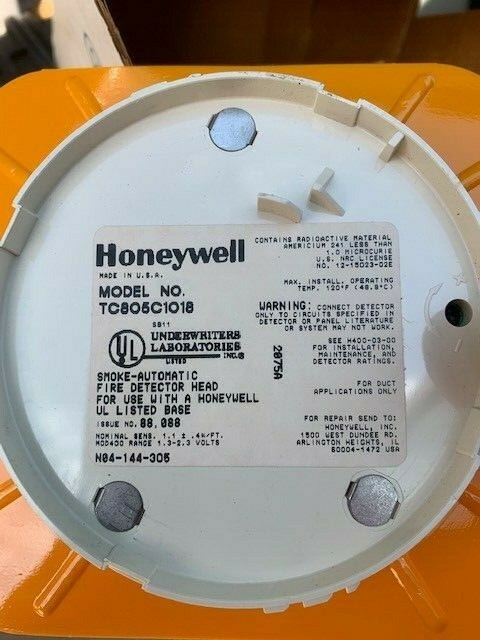

TC805C1018[31] 1451DH

Simplex

Simplex model System Sensor model Replaced Replaced by
2098-9110 1400A
2098-9577 1400
