Wheelock MT
Wheelock MT-24-MCW.jpg: Infobox image for Wheelock MT the infobox device.
Wheelock MT-24-LSM.jpg: Infobox image for Wheelock MT the infobox device.
whe_mt4-115-wh-vfr.jpg: Infobox image for Wheelock MT the infobox device.
Manufacturer

Wheelock {"label": "Manufacturer", "field": "Wheelock"}

Color(s)
Red
Nickel
White
{"label": "Color(s)", "field": "
Red
Nickel
White
"}
Rated Voltage

8-17.5VDC & 16-33VDC {"label": "Rated Voltage", "field": "8-17.5VDC & 16-33VDC"}

Introduced

1993[1] {"label": "Introduced", "field": "1993[1]"}

Discontinued

2023 {"label": "Discontinued", "field": "2023"}

Preceded by

Wheelock 30 series
Wheelock 7000 series
Wheelock ES series
Wheelock EH series
Wheelock EW series {"label": "Preceded by", "field": "Wheelock 30 series
Wheelock 7000 series
Wheelock ES series
Wheelock EH series
Wheelock EW series"}

Succeeded by

Wheelock WP series
Wheelock Eluxa series {"label": "Succeeded by", "field": "Wheelock WP series
Wheelock Eluxa series"}

{
    "rows": [],
    "title": "Wheelock MT",
    "images": [
        "Wheelock MT-24-MCW.jpg",
        "Wheelock MT-24-LSM.jpg",
        "whe_mt4-115-wh-vfr.jpg"
    ]
}

The Wheelock MT is a series of 8-tone horns and horn strobes. There are models for fire alarm signaling, and mass notification. The tone can be selected using DIP switches on the back of the device, and every tone has 2 volume settings.

History

The AMT was in development as early as 1991 when early specifications were included with the AES patent.[2] This plan of the AMT included an option to manually select a tone instead of applying the prioritization algorithm, a feature that was ultimately excluded and placed in the MT series.

The MT was released in 1993 as a remote horn and a horn strobe with the WM strobe.[1] The remote horn was available for flush mounting (MT models) and 4-inch square surface mounting (MT4 models), while the horn strobe was only available for flush mounting.[3] The MT models had tabs to cover the screws, while the MT4 models had the same visible screws as the previous EL-mounted devices. The original A&E specification stated that the device would have a continuous "tone" in place of the electronic bell, but this was changed shortly after release if not before release.[4]

Later in 1993, models with ADA strobes, namely the LS, LSM, MS, and IS, were released for both MT and MT4 models. MT models with synchronizable strobes were released after that point.

In 1994, WH and RH models of the MT were released for outdoor applications. The WM model could also be used for outdoor applications.

In 1996, the strobe models of the MT4 were discontinued.[3]

In late 2001, the MT-121575W-FR, MT-241575W-FR, and MT-2475W-FR were released for ULC applications together with the MTWP-2475W-FR, and the MT-24-LS-VFR-ULC was discontinued.[5] The strobe was moved to slightly above the horn for optimal sound output while leaving space for the screw cover tabs, and the lettering was moved to the sides of the device, resembling the NS. At the beginning of 2002, these models were released for UL applications, and the LS/LSM/MS/IS models were discontinued.[6] The RSSP was recommended for applications requiring candela settings other than 15/75 and 75.

In March 2004, the MT-24MCW models were released with a similar strobe to the HS4-24MCW-FR, and the MT-2475W-FR was discontinued at the end of April 2004.[7][8]

At the end of 2015, the MT-241575W models were discontinued. Customers were instructed to switch to the corresponding MT-24MCW models.[9]

In 2019, the MT series was updated to make the Code 3 horn synchronizable.[10] The Code 3 tone remains unsynchronizable.

In 2023, the MT was mostly discontinued due to the release of the Eluxa ELMT and ELMTS.[11] The MT4-12/24 horns and MTWP horn strobes were discontinued in late 2024.[12]

Features

The MT can produce 8 tones: continuous horn, vibrating bell, march time horn, Code 3 horn, Code 3 tone, slow whoop, siren, and hi/lo. Tones are selected through DIP switches on the back of the device, making each horn only usable for a single tone at a time. The strobes were manufactured in 15, 15/75, 30, and 75 candela models, as well as multi-candela models.

Models

Model Number Nominal Voltage Candela Strobe Orientation Replaces Replaced By
MT-12/24-R 12VDC/24VDC N/A N/A ES-DL1
EH-DL1
EH-DL2
EW-BH1
EW-DH1
MT-12/24-ULC 		ELMTR
EL3RMT-NR (with WFP-R)
EL4XMT-NR (with IOB-R)
MT-12/24-W 12VDC/24VDC N/A N/A ELMTW
EL3RMT-NW (with WFP-W)
EL4XMT-NW (with IOB-W)
MT-12/24-ULC 12VDC/24VDC N/A N/A MT-12/24-R
MT4-12/24-R 12VDC/24VDC N/A N/A 34T-12
34T-24
36T-24
ES-EL1
EH-EL1
EH-EL2
EW-EH1 		ELMTR
EL4XMT-NR (with WBB-R)
MT4-12/24-S 12VDC/24VDC N/A N/A ELMTW
EL4XMT-NW (with WBB-S)
MT-24-WM-VFR 24VDC 117 Vertical EH-DL1-WM-24
EW-DH1-WM-24 		MT-12-LSM-VFR
MT4-12-LSM-VFR
MT-24-LSM-VFR
MT4-24-LSM-VFR
MT-12/24-R + HSPW-24-HFR
MTWP-2475W-FR
MT-24-WS-VFR-ULC 24VDC 1.5 Vertical MTWP-2475W-FR
MT4-115-R 115VAC N/A N/A None None
MT4-115-S 115VAC N/A N/A None None
MT4-115-WH-VFR 115VAC 15 Vertical None None
MT4-115-WH-VNS 115VAC 15 Vertical None None
MT-12-LS-VFR 12VDC 15 Vertical EH-DL2-WH-24
MT4-12-LS-VFR 		MT-121575W-FR
MT-12-LSM-VFR 12VDC 15/75 Vertical MT-24-WM-VFR
MT4-12-LSM-VFR 		MT-121575W-FR
MT-12-MS-VFR 12VDC 30 Vertical MT4-12-MS-VFR None
MT4-12-LS-VFR 12VDC 15 Vertical EH-EL2-WH-24 MT-12-LS-VFR
MT4-12-LSM-VFR 12VDC 15/75 Vertical MT-24-WM-VFR MT-12-LSM-VFR
MT4-12-MS-VFR 12VDC 30 Vertical None MT-12-MS-VFR
MT-24-LS-VFR[13][14][15] 24VDC 15 Vertical F34T-24-WS
7001T-24
V7001T-24
EH-DL1-WH-24
EW-DH1-WH-24
MT4-24-LS-VFR 		MT-241575W-FR
MT-12/24-R + RSSP-24MCW-FR
MT-24-LS-VFR-ULC 24VDC 15 Vertical MT-241575W-FR
MT-24-LSM-VFR[16] 24VDC 15/75 Vertical MT-24-WM-VFR
MT4-24-LSM-VFR 		MT-241575W-FR
MT-24-LSM-VFW[17] 24VDC 15/75 Vertical MT-241575W-FW
MT-24-MS-VFR[18][19][20] 24VDC 30 Vertical MT4-24-MS-VFR MT-12/24-R + RSSP-24MCW-FR

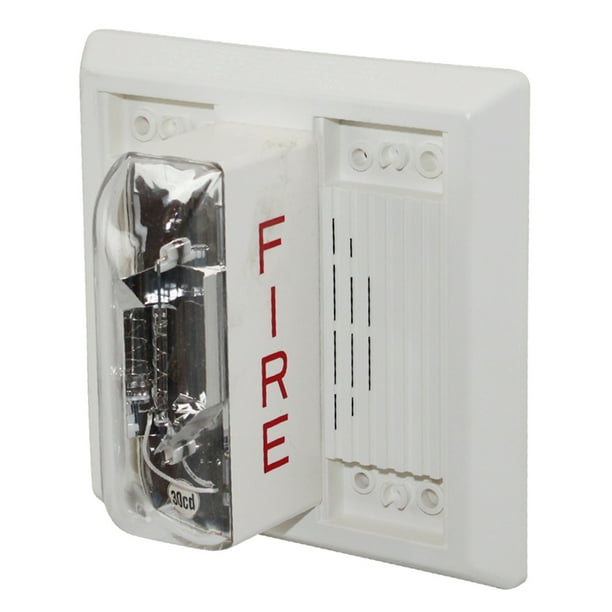

MT-24-MS-VFW[21] 24VDC 30 Vertical MT-12/24-W + RSSP-24MCW-FW
MT-24-IS-VFR[22][23][24] 24VDC 75 Vertical MT4-24-IS-VFR MT-2475W-FR
MT-24-IS-VFW[25][26][27] 24VDC 75 Vertical MT-2475W-FW
MT4-24-LS-VFR 24VDC 15 Vertical 32PT-24-WS
7002T-24
EH-EL1-WH-24
EW-EH1-WH-24 		MT-24-LS-VFR
MT4-24-LSM-VFR 24VDC 15/75 Vertical MT-24-WM-VFR MT-24-LSM-VFR
MT4-24-MS-VFR 24VDC 30 Vertical None MT-24-MS-VFR
MT4-24-IS-VFR 24VDC 75 Vertical None MT-24-IS-VFR
MT-24-SL-VFR 24VDC 15 Vertical None MT-241575W-FR
MT-12/24-R + RSSP-24MCW-FR
MT-24-SLM-VFR 24VDC 15/75 Vertical None MT-241575W-FR
MT-121575W-FR 12VDC 15/75 Horizontal MT-12-LSM-VFR None
MT-121575W-FW 12VDC 15/75 Horizontal None
MT-241575W-FR 24VDC 15/75 Horizontal MT-24-LS-VFR
MT-24-LS-VFR-ULC
MT-24-LSM-VFR
MT-24-SL-VFR
MT-24-SLM-VFR 		MT-24MCW-FR
MT-241575W-AR 24VDC 15/75 Horizontal MT-24-LS-VAR MT-24MCW-AR
MT-241575W-FW 24VDC 15/75 Horizontal MT-24-LSM-VFW MT-24MCW-FW
MT-241575W-NW 24VDC 15/75 Horizontal MT-24MCW-NW
MT-2475W-FR 24VDC 75 Horizontal MT-24-IS-VFR MT-24MCW-FR
MT-2475W-AR 24VDC 75 Horizontal MT-24MCW-AR
MT-2475W-FW 24VDC 75 Horizontal MT-24MCW-FW
MT-2475W-NW 24VDC 75 Horizontal MT-24MCW-NW
MT-2475W-GW 24VDC 75 Horizontal None
MT-24MCW-FR 24VDC 15, 30, 75, 110 Horizontal MT-12/24-R + RSSP-24MCW-FR
MT-241575W-FR
MT-2475W-FR 		ELMTSR
MT-24MCW-AR 24VDC 15, 30, 75, 110 Horizontal MT-241575W-AR
MT-2475W-AR 		ELMTSR-A
MT-24MCW-FW 24VDC 15, 30, 75, 110 Horizontal MT-12/24-W + RSSP-24MCW-FW
MT-241575W-FW 		ELMTSW
MT-24MCW-NW 24VDC 15, 30, 75, 110 Horizontal MT-241575W-NW
MT-2475W-NW 		ELMTSW-N

Rebrands

Cerberus Pyrotronics

Cerberus Pyrotronics model Wheelock model Replaced Replaced by
MT[28] MT-12/24-R EH-24
EHM-D (with S110-RET) 		MT-F
MT4 MT4-12/24-R MT-S
MTS-15 MT-24-LS-VFR EH-24S
ES0-24S
HSD-24F 		MT-S15-F
MTS4-15 MT4-24-LS-VFR HSD-24 MT-S15-S
MTS-15/75[29][30][31] MT-24-LSM-VFR EHM-D MT-S17-F
MTS4-15/75[32] MT4-24-LSM-VFR MT-S17-S
MTS-30 MT-24-MS-VFR U-MMT-S30
MTS4-30 MT4-24-MS-VFR U-MMT-S30
MTS-75 MT-24-IS-VFR MT-S75-F
MTS4-75 MT4-24-IS-VFR MT-S75-S

Fenwal

Wheelock produced AGENT strobe models specifically for Fenwal before the horizontal strobe models were released. The Fenwal-rebranded horizontal strobe models were given a -FEN suffix by Wheelock, but this was not typically visible to the consumer.

Model Candela Lettering Replaces Replaced by
MT-24-LS-VAR[33] 15 AGENT MT4-24-LS-VAR MT-24MCW-AR
MT4-24-LS-VAR[34] 15 AGENT MT-24-LS-VAR
MT-2475W-AR 75 AGENT MT-24MCW-AR
MT-2475W-FR 75 FIRE MT-24MCW-FR

Gamewell

The Gamewell rebrands of the MT were given a -GAM suffix by Wheelock, but this was not typically visible to the consumer.

Gamewell model Wheelock model Replaces Replaced by
71138[35] MT-12/24-R MT-12/24-R
72162 MT-241575W-FR MT-241575W-FR
72163 MT-2475W-FR MT-24MCW-FR

Honeywell

Honeywell model Wheelock model Replaced Replaced by
SC716A-1003 MT-12/24-R SC806A1038 XLS757-1A-T
SC716B-1019 MT-24-IS-VFR XLS757-4A-T
SC716B-1027 MT-24-LSM-VFR SC807C1001 XLS757-7A-T

Monaco

Monaco model Wheelock model Replaced Replaced by
585-018-00[36] MT4-115-WH-VFR Still in production
585-065-00 MT-24MCW-FR Still in production

Potter

Potter rebranded some MT devices as components of certain SASH devices.

Siemens

Siemens started rebranding the MT series around 2007 as a result of the Wheelock, Inc., v. Siemens Building Technologies, Inc. lawsuit that required the Siemens U series to be discontinued. The series was also sold under the Faraday brand using the same model names.[37]

Siemens model Wheelock model Replaces Replaced by
MTH-R MT-12/24-R U-HN
U-HNH
U-MMT-1G
U-MMT 		SL2MTWR-F[38]
MTH-W MT-12/24-W U-HN-W
U-HN-C
U-HNH-W
U-HNH-C
U-MMT-1G-W
U-MMT-W 		SL2MTWW-F
MTH-MC-R MT-24MCW-FR U-HN-MCS
U-HNH-MCS
U-MMT-MCS 		SL2MTSWR-F[39]
MTH-MC-R-AR MT-24MCW-AR SL2MTSWR-A[40]
MTH-MC-W MT-24MCW-FW U-HN-MCS-W
U-HNH-MCS-W
U-MMT-MCS-W 		SL2MTSWW-F[41]
MTH-75-R-WP MTWP-2475W-FR U-HN-MCS-WP
U-HNH-MCS-WP 		Still in production
MTH-15-115-R-WP MT4-115-WH-VFR Still in production
MTH-15-115-W-WP[42] MT4-115-WH-VNS Still in production
MTH-HMC-R-WP MTWP-24MCWH-FR U-HN-MCS-WP
U-HNH-MCS-WP 		Still in production
MTH-HMC-W-WP MTWP-24MCWH-FW U-HN-MCS-WP
U-HNH-MCS-WP 		Still in production
MTH-HMC-CR-WP MTWP-24MCCH-FR U-HN-MCS-WP
U-HNH-MCS-WP 		Still in production
MTH-HMC-CW-WP MTWP-24MCCH-FW U-HN-MCS-WP
U-HNH-MCS-WP 		Still in production

Simplex

Simplex model Wheelock model Replaces Replaced by
4901-9821 MT-12/24-R
4903-9234[43][44][45][46][47][48][49][50][51][52][53][54][55] MT-24-LSM
4903-9235[56] MT-24-WM

References

  1. ↑ 1.0 1.1 https://nfpa.access.preservica.com/uncategorized/IO_e739b0ac-5683-41d8-8725-3d1426de8e70/
  2. ↑ https://www.freepatentsonline.com/5293155.html
  3. ↑ 3.0 3.1 https://web.archive.org/web/19970214014039fw_/http://www.wheelockinc.com/MT/mt3.html
  4. ↑ https://web.archive.org/web/19970214014844/http://www.wheelockinc.com/MT/mt4.html
  5. ↑ https://web.archive.org/web/20061108085944/http://www.cooperwheelock.com/literature/Disc.Repl.ULC.pdf
  6. ↑ "Series MT" Wheelock. Archive 2001-12-30 vs. 2002-06-16
  7. ↑ https://web.archive.org/web/20060322120633/http://www.wheelockinc.com/literature/NotifNewsFeb04.pdf
  8. ↑ https://web.archive.org/web/20040804164315/http://www.wheelockinc.com/Specs/s-series/s2000.pdf
  9. ↑ https://www.eaton.com/content/dam/eaton/products/safety-security-emergency-communications/lsmns/wheelock/product-discontinuation/wheelock-ps-amt-ch-e-et-hs4-mt-rss-product-discontinuation-notice.pdf
  10. ↑ https://www.eaton.com/content/dam/eaton/products/safety-security-emergency-communications/lsmns/wheelock/mt/wheelock-mt-horns-data-sheet-TD450152EN.pdf
  11. ↑ https://www.eaton.com/content/dam/eaton/products/safety-security-emergency-communications/lsmns/wheelock/product-discontinuation/Xenon%20Tube%20Cessation.pdf
  12. ↑ https://www.eaton.com/content/dam/eaton/products/safety-security-emergency-communications/lsmns/wheelock/product-discontinuation/lsmns_%20EOL_Aug_19_2024_Update.pdf
  13. ↑ https://i.ebayimg.com/images/g/sOoAAeSwAMdoP1Gy/s-l1600.webp
  14. ↑ https://i.ebayimg.com/images/g/nXYAAeSwam1oP1Gz/s-l1600.webp
  15. ↑ https://i.ebayimg.com/images/g/fR4AAeSw~AVoP1Gz/s-l1600.webp
  16. ↑ https://firealarms.tv/collection/wheelock-mt-24-lsm/
  17. ↑ https://i.ebayimg.com/images/g/3dQAAOSwgLdn9YzS/s-l1600.webp
  18. ↑ https://i.ebayimg.com/images/g/8ysAAOSwVKdnaLuS/s-l1600.jpg
  19. ↑ https://i.ebayimg.com/images/g/oPwAAOSwtPxnaLub/s-l1600.jpg
  20. ↑ https://i.ebayimg.com/images/g/9PMAAOSwXuhnaLwd/s-l1600.jpg
  21. ↑ https://i5.walmartimages.com/asr/d37251fb-4e1c-4d28-832b-52735f1eba50_1.2d555f1c6525e43fe0fe2460e12e55d3.jpeg?odnWidth=612&odnHeight=612&odnBg=ffffff
  22. ↑ https://i.ebayimg.com/images/g/hLMAAOSwMIpnaMG5/s-l1600.webp
  23. ↑ https://i.ebayimg.com/images/g/cXAAAOSwa7dnaMHB/s-l1600.webp
  24. ↑ https://i.ebayimg.com/images/g/MswAAOSwr8lnaMHK/s-l1600.webp
  25. ↑ https://i.ebayimg.com/images/g/90wAAOSw9KRnwioz/s-l1600.webp
  26. ↑ https://i.ebayimg.com/images/g/EX8AAOSwuulnwiop/s-l1600.webp
  27. ↑ https://i.ebayimg.com/images/g/92sAAOSwP~5nwioh/s-l1600.webp
  28. ↑ "Compatible Notification Appliances" (315-096363-7). Siemens Building Technologies, Inc..
  29. ↑ https://i.ebayimg.com/images/g/VJEAAOSwIG5nmVDu/s-l1600.webp
  30. ↑ https://i.ebayimg.com/images/g/sNUAAOSwBKBnmVDw/s-l1600.webp
  31. ↑ https://i.ebayimg.com/images/g/8IIAAOSwt25nmVDz/s-l1600.webp
  32. ↑ https://fazone.net/html/cerberus_pyrotronics_mts4-15-75.html
  33. ↑ https://firealarms.tv/collection/fenwal-mt-24-ls/
  34. ↑ https://firealarms.tv/collection/fenwal-mt4-24-ls-var/
  35. ↑ https://web.archive.org/web/20030409050500/http://gamewell.com/pdf/datasheets/CS-2247.pdf
  36. ↑ "Monaco Products Catalog". Monaco Enterprises (September 2024).
  37. ↑ https://web.archive.org/web/20110716071442/http://www.us.sbt.siemens.com/faraday/notification.html
  38. ↑ https://cache.industry.siemens.com/dl/files/018/109823018/att_1149033/v2/A6V14140230.pdf
  39. ↑ https://mall.industry.siemens.com/mall/en/buildingtechnologiesusa/Catalog/Product/S54329-F237-A1
  40. ↑ https://mall.industry.siemens.com/mall/en/buildingtechnologiesusa/Catalog/Product/S54329-F239-A1
  41. ↑ https://mall.industry.siemens.com/mall/en/buildingtechnologiesusa/Catalog/Product/S54329-F235-A1
  42. ↑ https://mall.industry.siemens.com/mall/en/buildingtechnologiesusa/Catalog/Products/10553724?tree=CatalogTree
  43. ↑ https://i.ebayimg.com/images/g/AKAAAOSw-m1oJ5KZ/s-l1200.jpg
  44. ↑ https://i.ebayimg.com/images/g/9ekAAOSwDSVoJ5Kb/s-l1200.jpg
  45. ↑ https://i.ebayimg.com/images/g/JEsAAOSwHuNoJ5Kc/s-l1200.jpg
  46. ↑ https://i.ebayimg.com/images/g/VW0AAOSwxfxoJ5Ke/s-l1200.jpg
  47. ↑ https://i.ebayimg.com/images/g/7~oAAOSwB9BoJ5Kg/s-l1200.jpg
  48. ↑ https://i.ebayimg.com/images/g/S6sAAOSwCaJoJ5Kh/s-l1200.jpg
  49. ↑ https://i.ebayimg.com/images/g/0SwAAOSwAWZoJ5Ki/s-l1200.jpg
  50. ↑ https://i.ebayimg.com/images/g/Y9MAAOSwPgJoJ5Kk/s-l1200.jpg
  51. ↑ https://i.ebayimg.com/images/g/NbAAAOSwJRVoJ5Kl/s-l1200.jpg
  52. ↑ https://i.ebayimg.com/images/g/H3QAAOSwqQxoJ5Km/s-l1200.jpg
  53. ↑ https://i.ebayimg.com/images/g/~XIAAOSwxr9oJ5Ko/s-l1200.jpg
  54. ↑ https://i.ebayimg.com/images/g/LpEAAOSwr79oJ5Kp/s-l1200.jpg
  55. ↑ https://i.ebayimg.com/images/g/5PQAAOSwWAhoJ5Kq/s-l1200.jpg
  56. ↑ http://www.fazone.net/html/wheelock_mt-24-wm.html
Retrieved from "https://wiki.thefirepanel.com/index.php?title=Wheelock_MT_series&oldid=3647"
