Faraday 6200 series

6200 series

Manufacturer	Faraday {"label": "Manufacturer", "field": "Faraday"}
Color(s)	Red Gray {"label": "Color(s)", "field": " Red Gray "}
Rated Voltage	21-30VDC {"label": "Rated Voltage", "field": "21-30VDC"}
Preceded by	Faraday 6100 series {"label": "Preceded by", "field": "Faraday 6100 series"}
Succeeded by	Faraday HS series Faraday MTH series Faraday N series {"label": "Succeeded by", "field": "Faraday HS series Faraday MTH series Faraday N series"}

{
    "rows": [],
    "title": "6200 series",
    "images": []
}

The Faraday 6200 series is a series of DC electromechanical horns.

History

The 6200 series was released in 1993 with a new contactless horn that was more durable than the 6100 series horn. The original 6220 had a similar modular design to the 6100 series.

In 1995, Faraday released the 6226, 6227, and 6228 horn strobes. These were less modular, but they featured screw terminals for the strobes. There was also the 6224, which was a surface mount horn without a strobe.

In 1998, these horns were replaced with a Faraday-branded version of the U-HN and U-HNH.

Models

First generation

Model	Mounting	Replaced	Replaced by

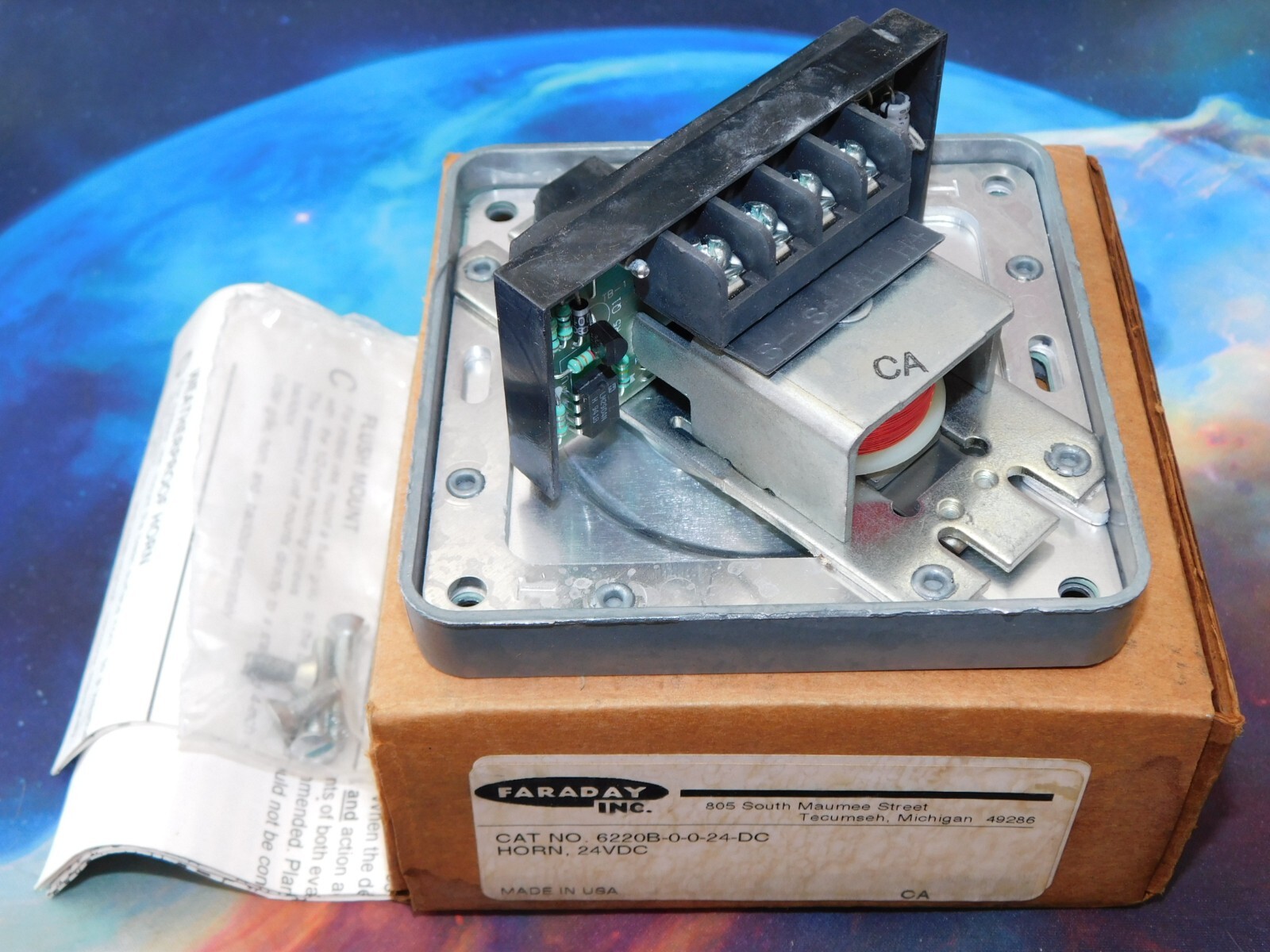

6220B-0-0-12-DC	No grille
6220B-0-0-24-DC	No grille
6223	Flush
6224	Surface
6226	Flush
6227	Surface
6228	Ceiling
6244	Surface

Rebrands

Gentex

The Gentex GM series horns consist of a 6220B-0-0-24-DC with a cover plate and optional strobe manufactured by Gentex.

Siemens

The second generation of 6200 series horns was also sold under the Siemens brand as part of the U series.

Simplex

Simplex rebranded the 6200 series remote horns as part of the 4901 series. The horns were available with either a unique grille from Simplex or with the original Faraday grille. Horn strobes were also available with a grille and strobe from Simplex as part of the 4903 series.
