Simplex 4903 series

From The Fire Panel
4903 series
Manufacturer

Simplex
Faraday[note 1]
Gentex[note 2] {"label": "Manufacturer", "field": "Simplex
Faraday[note 1]
Gentex[note 2]"}

Color(s)
Red
White
{"label": "Color(s)", "field": "
Red
White
"}
Preceded by

Simplex 2903 series {"label": "Preceded by", "field": "Simplex 2903 series"}

{
    "rows": [],
    "title": "4903 series",
    "images": []
}

The Simplex 4903 series is a series of strobe plates and combination strobes. The 4903 series was first introduced around 1989–90 as the light plates and 4.75CD Strobe plates. In around 1992, Simplex replaced those with the 4903–9105 100CD strobe plates with a magnified strobe from Gentex. They replaced the strobe design in 1994 with a clear lensed 15/75CD strobe with a reflector. In around 1993–94 was when they introduced the 15, 30 & 110CD units that we use today. The original 1993–94 units only flashed at 24 times a minute while in late 1994 they changed the flash rate to 60 times a minute and introduced separate 4903–93XX Speaker/Strobes & 4903–94XX Horn/Strobes that had synchronized strobes. These separate Free Run only 4903–91XX Series Speaker/Strobes & 4903–92XX Series Horn strobes and their synchronized 4903-93XX & 4903–94XX counterparts were discontinued in 2000. The electromechanical horn/strobes were discontinued however in 1998 being replaced with the Electronic Horns that were introduced that same year and were discontinued in 2000. Simplex also made separate Speaker/Strobe models for 25VRMS & 70VRMS lines. Nowadays Simplex uses selectable 4903s to replace all legacy 4903 units that preceded them. These 4903s have the same exact counterparts as the TrueAlerts and the speaker/strobes were dual voltage. In 1997 Simplex added a colored shape indicator on the strobe reflector to indicate the candela. This included a Green Asterisk to indicate 15CD (or 15/75CD), a Blue Circle to indicate 30CD (or 30/110CD) and an Orange Triangle to indicate 110CD. In around late 1999 Simplex used clear candela stickers using black numbers and letters inside of a round white circle to indicate the candela.

Models

Light/strobe plates

Model number Voltage Type Candela Strobe orientation Color
4903-9001 24 VDC Light plate 0.5 Red
4903-9051 120 VAC Light plate 0.32
4903-9101[1] 24 VDC Strobe plate 4.75 Vertical/Horizontal Red
4903-9102[2] 24 VDC Light plate 0.5 Horizontal Red
4903-9104[3] 24 VDC Strobe plate 4.75 Ceiling Red
4903-9105[4] 24 VDC Strobe plate 100 (Sometimes 15/75) Vertical/Horizontal Red
4903-9151 120 VAC Strobe plate 8.4
4903-9152 120 VAC Light plate 0.32
4903-9154 120 VAC Strobe plate 8.4
4903-9501 N/A Plate N/A N/A Red

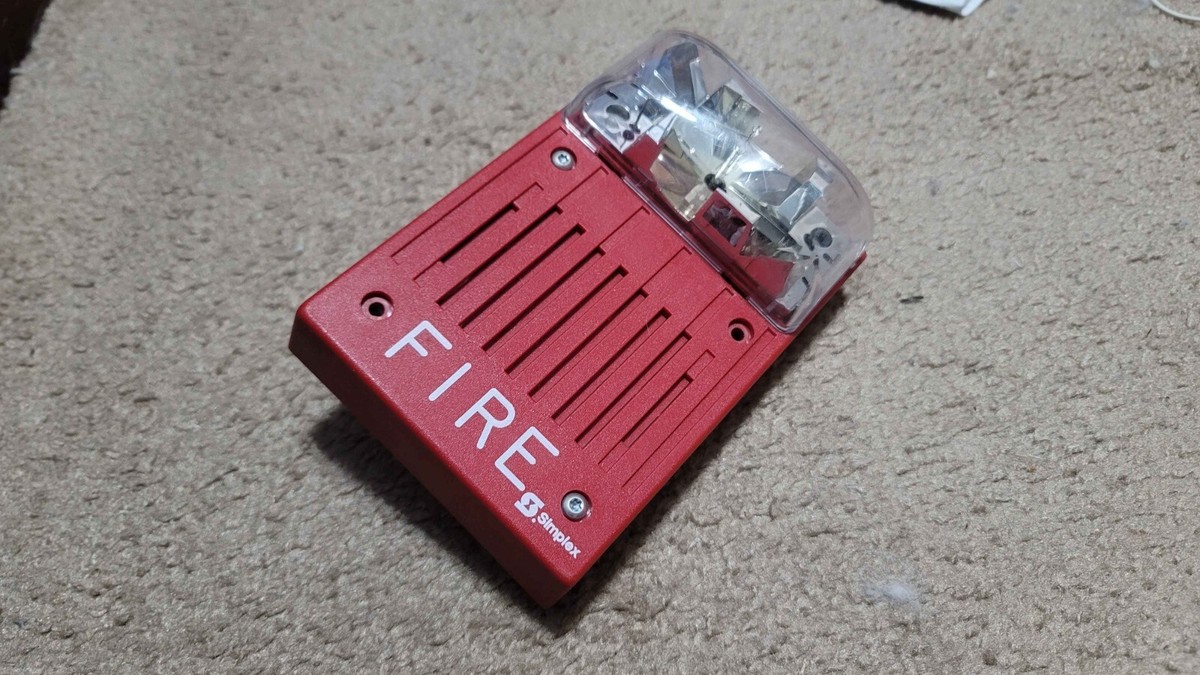

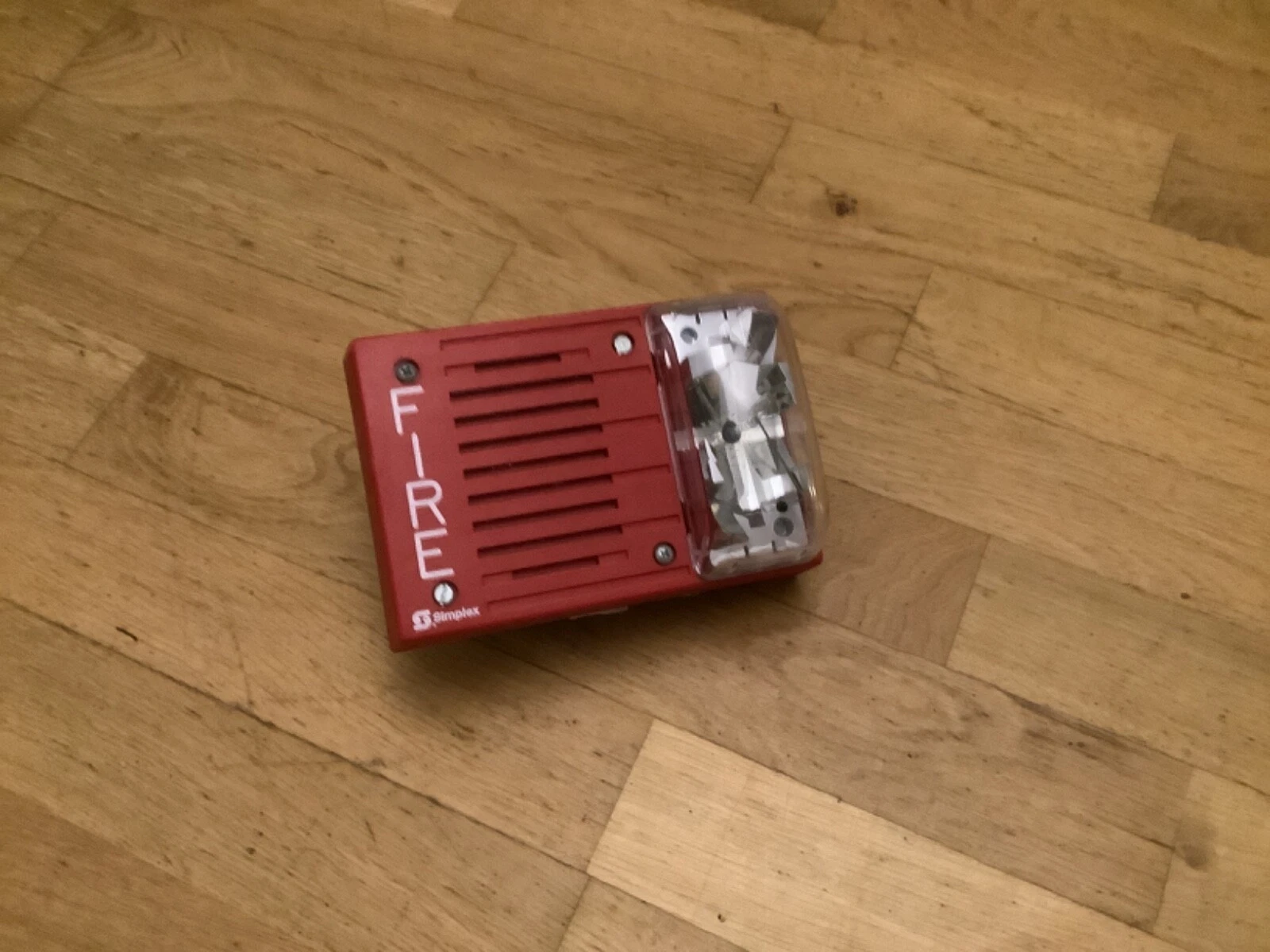

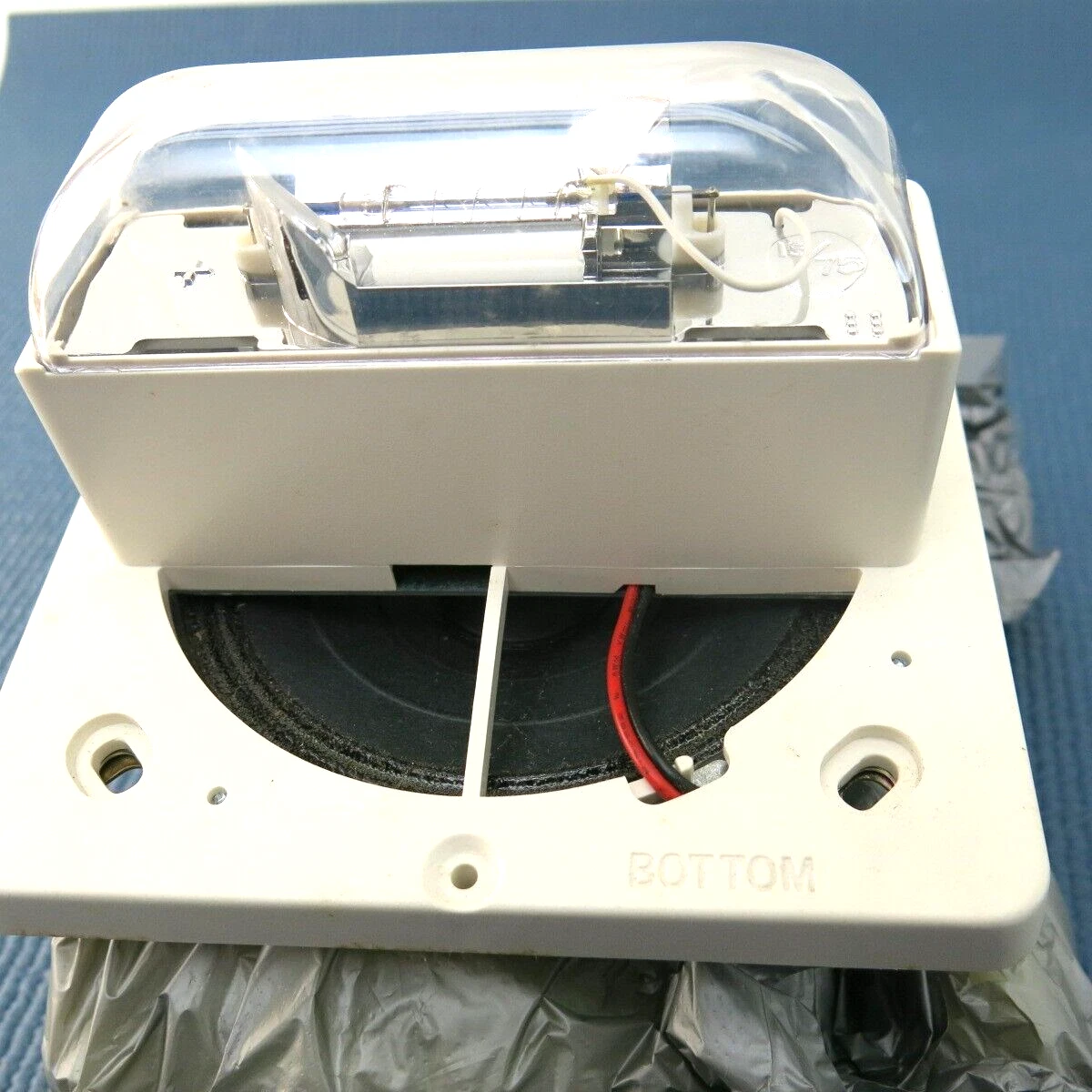

Speaker strobes

Model number Candela Synchronization Volts RMS Strobe/Fire Lettering orientation Color Mounting orientation Replaces Replaced By Current Replacement
4903-9106[5][6][7][8] 15 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) 25 Vertical Red Horizontal 4903-9146 4903-9150
4903-9107[9] 110 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) 25 Vertical Red Horizontal 4903-9144 4903-9149
4903-9109 [10] 110 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) 70 Vertical Red Horizontal 4903-9174
4903-9136[11][12] 15 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) 25 Horizontal Red Vertical 4903-9147 4903-9153
4903-9142[13] 30 Free-run 25 Vertical Red Horizontal 4903-9148
4903-9143 30 Free-run 25 Horizontal Red Vertical 4903-9199
4903-9144[14][15] 110 Free-run 25 Vertical Red Horizontal 4903-9107 4903-9149

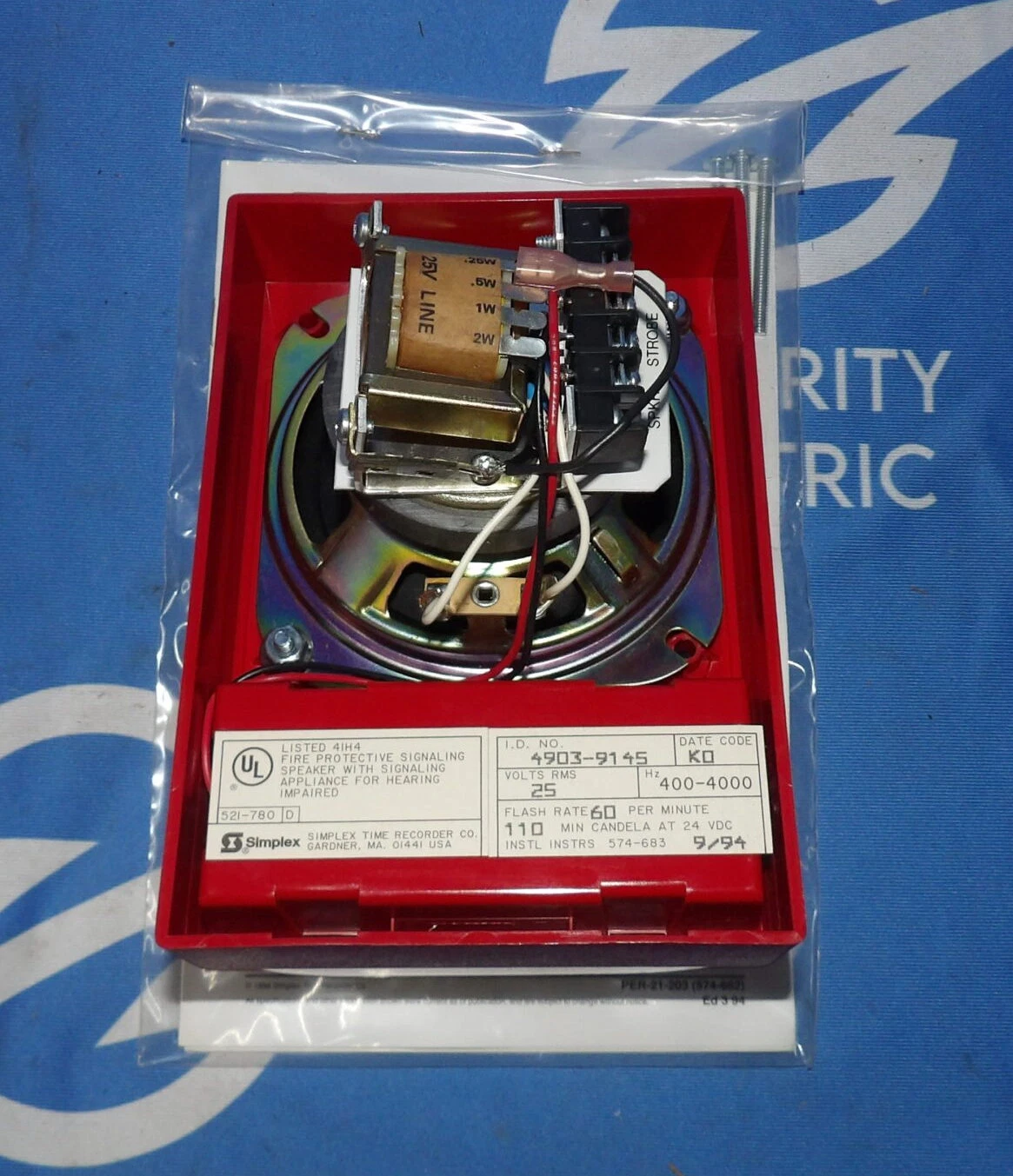

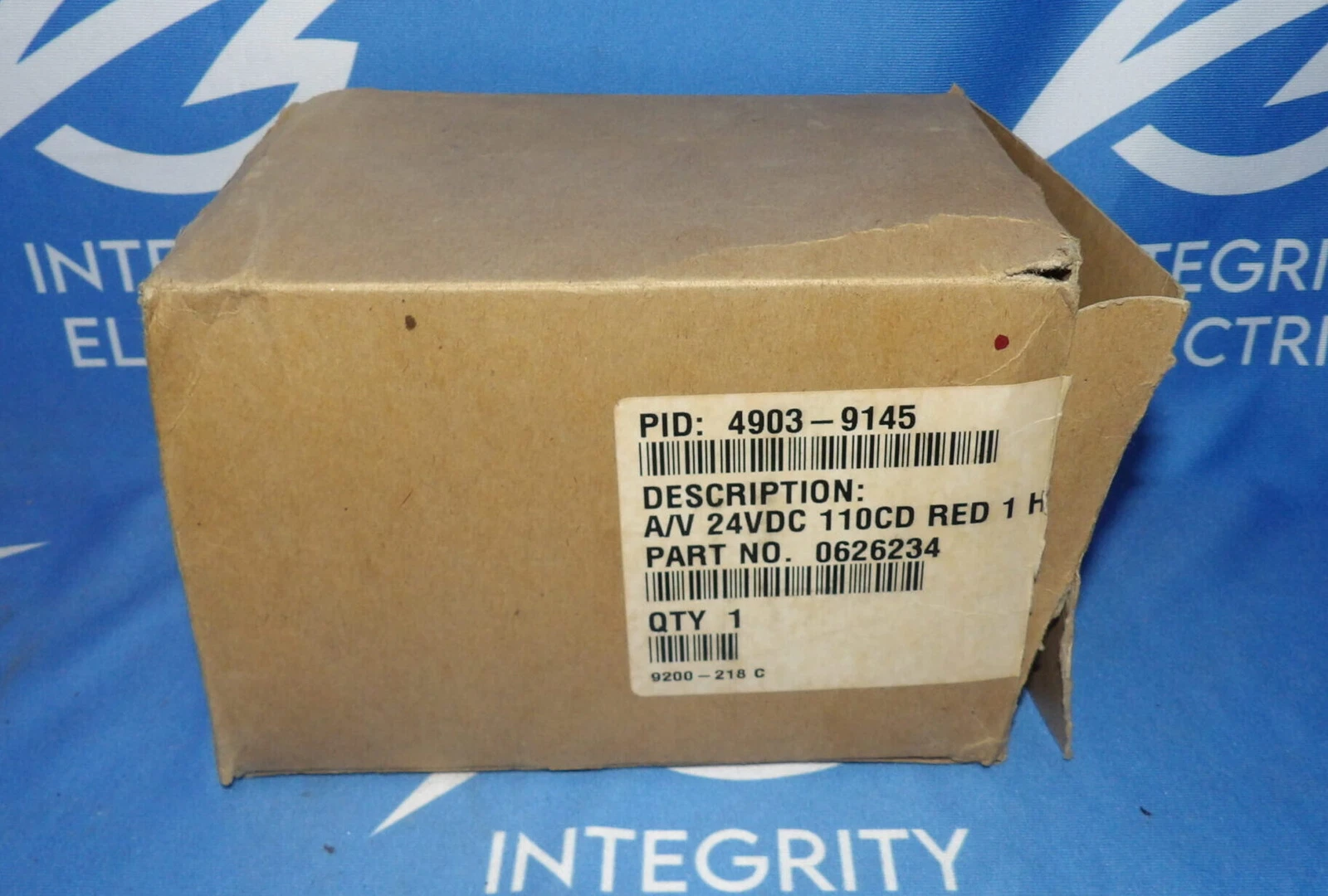

4903-9145[16][17][18] 110 Free-run 25 Horizontal Red Vertical 4903-9343
4903-9146[19] 15 Free-run 25 Vertical Red Horizontal 4903-9150
4903-9147[20] 15 Free-run 25 Horizontal Red Vertical 4903-9136 4903-9153
4903-9148[21][22] 30 Free-run/Synchronized 25/70 Vertical Red Horizontal 4903-9142, 4903-9171, 4903-9303, 4903-9329
4903-9149[23] 110 Free-run/Synchronized 25/70 Vertical Red Horizontal 4903-9107, 4903-9109, 4903-9144, 4903-9174, 4903-9305, 4903-9332
4903-9150[24] 15 Free-run/Synchronized 25/70 Vertical Red Horizontal 4903-9146, 4903-9168, 4903-9301, 4903-9326
4903-9153[25] 15 Free-run/Synchronized 25/70 Horizontal Red Vertical 4903-9136, 4903-9147, 4903-9176, 4903-9302, 4903-9334
4903-9155[26] 15 Free-run 25 Ceiling White (Round) Round 4903-9196

4903-9371

4903-9156 15 Free-run 25 Vertical White (Round) Round
4903-9157 15 Free-run 70 Ceiling White (Round) Round 4903-9196

4903-9371

4903-9158 15 Free-run 70 Wall White (Round) Round
4903-9159 30 Free-run 25 Ceiling White (Round) Round 4903-9197

4903-9372 (75CD)

4903-9160 30 Free-run 25 Vertical White (Round) Round
4903-9161 30 Free-run 70 Ceiling White (Round) Round 4903-9197

4903-9372 (75CD)

4903-9162 30 Free-run 70 Wall White (Round) Round
4903-9163 110 Free-run 25 Ceiling White (Round) Round 4903-9198

4903-9373

4903-9164 110 Free-run 25 Vertical White (Round) Round
4903-9165 110 Free-run 70 Ceiling White (Round) Round 4903-9198

4903-9373

4903-9166 110 Free-run 70 Vertical White (Round) Round
4903-9167[27] 15 Free-run 25 Vertical White Horizontal 4903-9193
4903-9168[28] 15 Free-run 70 Vertical Red Horizontal 4903-9150
4903-9169 15 Free-run 70 Vertical White Horizontal 4903-9193
4903-9170[29] 30 Free-run 25 Vertical White Horizontal 4903-9194
4903-9171 30 Free-run 70 Vertical Red Horizontal 4903-9148
4903-9172 30 Free-run 70 Vertical White Horizontal 4903-9194
4903-9173[30] 110 Free-run 25 Vertical White Horizontal 4903-9195
4903-9174[31] 110 Free-run 70 Vertical Red Horizontal 4903-9109 4903-9149
4903-9175 110 Free-run 70 Vertical White Horizontal 4903-9195
4903-9176 15 Free-run 70 Horizontal Red Vertical 4903-9153
4903-9177 30 Free-run 70 Horizontal Red Vertical 4903-9199
4903-9178 110 Free-run 70 Horizontal Red Vertical 4903-9343
4903-9193[32] 15 Free-run/Synchronized 25/70 Vertical White Horizontal 4903-9167, 4903-9169, 4903-9325, 4903-9327
4903-9194 30 Free-run/Synchronized 25/70 Vertical White Horizontal 4903-9170, 4903-9172, 4903-9328, 4903-9330
4903-9195[33] 110 Free-run/Synchronized 25/70 Vertical White Horizontal 4903-9173, 4903-9175, 4903-9331, 4903-9333
4903-9196[34] 15 Free-run/Synchronized 25/70 Ceiling White Round 4903-9155, 4903-9157, 4903-9313, 4903-9315
4903-9197[35] 30 Free-run/Synchronized 25/70 Ceiling White Round 4903-9159, 4903-9161, 4903-9317, 4903-9321
4903-9198[36] 110 Free-run/Synchronized 25/70 Ceiling White Round 4903-9163, 4903-9165, 4903-9321, 4903-9323
4903-9199 30 Free-run/Synchronized 25/70 Horizontal Red Vertical 4903-9143, 4903-9177, 4903-9304, 4903-9335

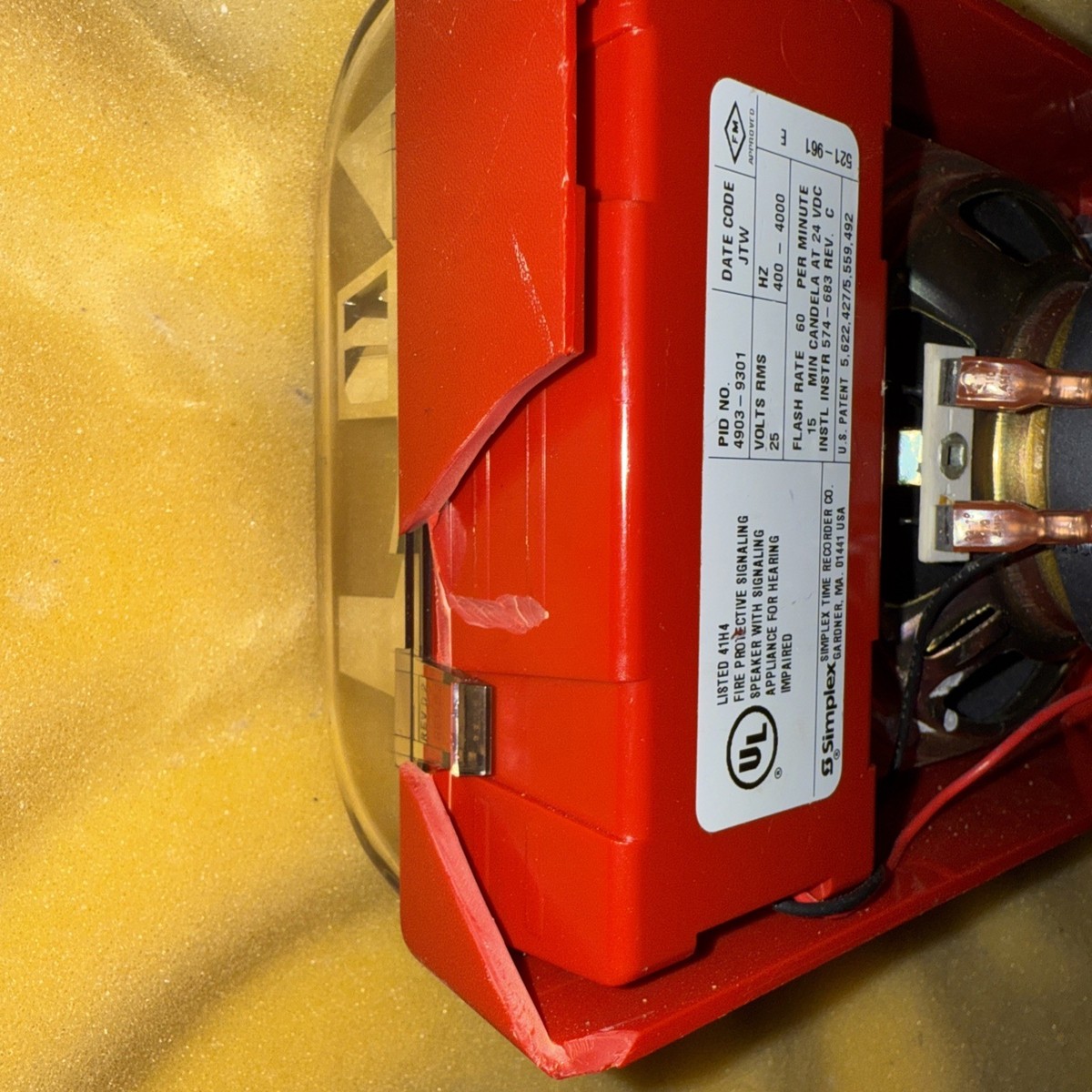

4903-9301 [37][38][39] 15 Synchronized 25 Vertical Red Horizontal 4903-9150
4903-9302 15 Synchronized 25 Horizontal Red Vertical 4903-9153
4903-9303[40] 30 Synchronized 25 Vertical Red Horizontal 4903-9148
4903-9304 30 Synchronized 25 Horizontal Red Vertical 4903-9199

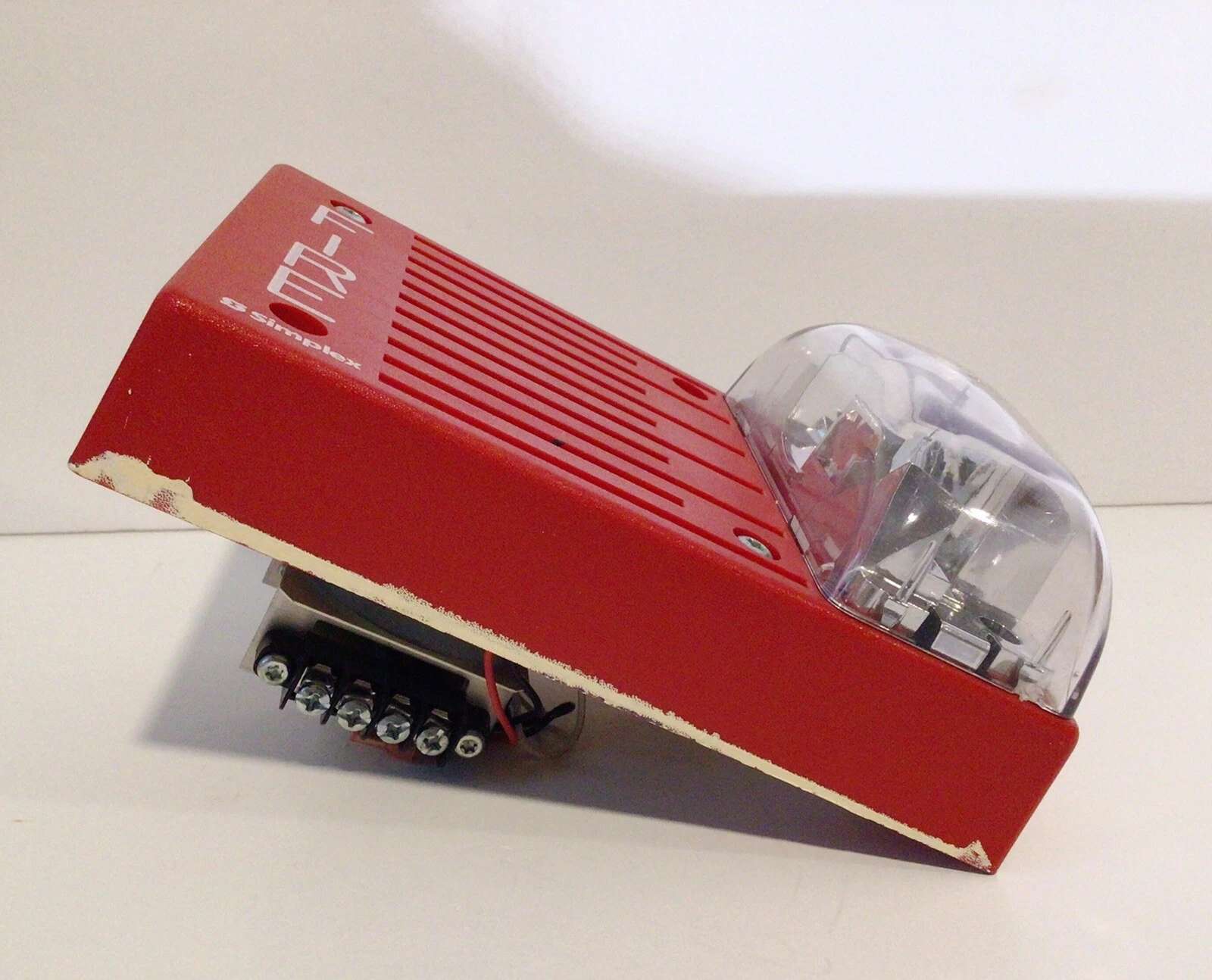

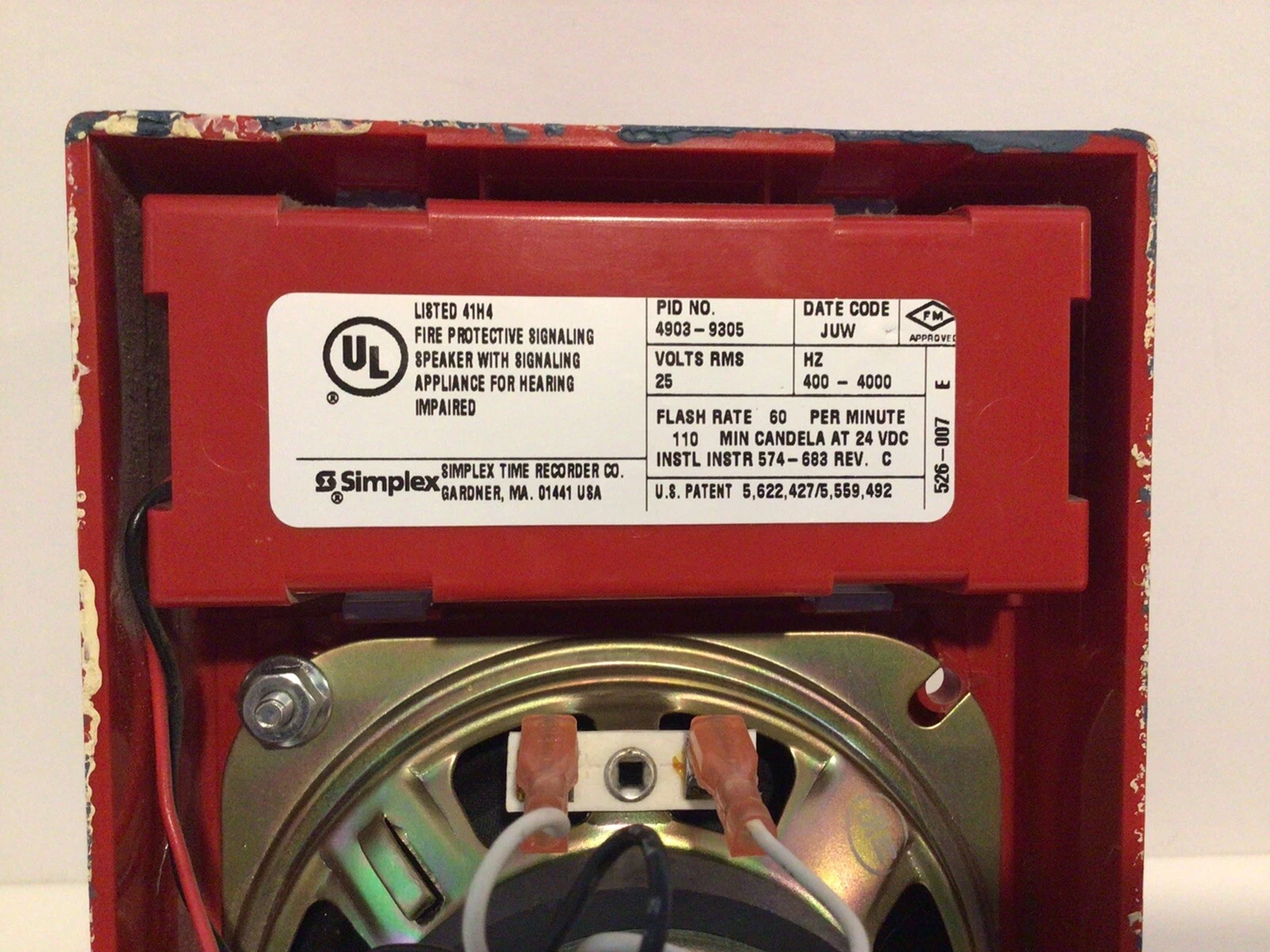

4903-9305[41][42][43][44][45][46][47] 110 Synchronized 25 Vertical Red Horizontal 4903-9149
4903-9306 110 Synchronized 25 Horizontal Red Vertical 4903-9343
4903-9307 15 Synchronized 25 Ceiling Red Round 4903-9347 4906-9160 (15CD)
4903-9308 30 Synchronized 25 Ceiling Red Round 4903-9348

4903-9369 (75CD)

4906-9160 (30CD)
4903-9309 110 Synchronized 25 Ceiling Red Round 4903-9349

4903-9370

4906-9160 (110CD)
4903-9310 15 Synchronized 70 Ceiling Red Round 4903-9347 4906-9160 (15CD)
4903-9311 30 Synchronized 70 Ceiling Red Round 4903-9348

4903-9369 (75CD)

4906-9160 (30CD)
4903-9312 110 Synchronized 70 Ceiling Red Round 4903-9349

4903-9370

4906-9160 (110CD)
4903-9313 15 Synchronized 25 Ceiling White (Round) Round 4903-9196

4903-9371

4906-9154 (15CD)
4903-9314 15 Synchronized 25 Wall White (Round) Round
4903-9315 15 Synchronized 70 Ceiling White (Round) Round 4903-9196

4903-9371

4906-9154 (15CD)
4903-9316 15 Synchronized 70 Vertical White (Round) Round
4903-9317 30 Synchronized 25 Ceiling White (Round) Round 4903-9197

4903-9372 (75CD)

4906-9154 (30CD)
4903-9318 30 Synchronized 25 Vertical White (Round) Round
4903-9319 30 Synchronized 70 Ceiling White (Round) Round 4903-9197

4903-9372 (75CD)

4906-9154 (30CD)
4903-9320 30 Synchronized 70 Wall White (Round) Round
4903-9321 110 Synchronized 25 Ceiling White (Round) Round 4903-9198

4903-9373

4906-9154 (110CD)
4903-9322 110 Synchronized 25 Vertical White (Round) Round
4903-9323 110 Synchronized 70 Ceiling White (Round) Round 4903-9198

4903-9373

4906-9154 (110CD)
4903-9324 110 Synchronized 70 Vertical White (Round) Round
4903-9325 15 Synchronized 25 Vertical White Horizontal 4903-9193
4903-9326[48] 15 Synchronized 70 Vertical Red Horizontal 4903-9150
4903-9327 15 Synchronized 70 Vertical White Horizontal 4903-9193
4903-9328 30 Synchronized 25 Vertical White Horizontal 4903-9194
4903-9329[49][50][51] 30 Synchronized 70 Vertical Red Horizontal 4903-9148
4903-9330 30 Synchronized 70 Vertical White Horizontal 4903-9194
4903-9331 110 Synchronized 25 Vertical White Horizontal 4903-9195
4903-9332[52][53][54] 110 Synchronized 70 Vertical Red Horizontal 4903-9149
4903-9333 110 Synchronized 70 Vertical White Horizontal 4903-9195
4903-9334 15 Synchronized 70 Horizontal Red Vertical 4903-9153
4903-9335 30 Synchronized 70 Horizontal Red Vertical 4903-9199
4903-9336 110 Synchronized 70 Horizontal Red Vertical 4903-9343
4903-9337 15 Synchronized 25 Horizontal White Vertical 4903-9344
4903-9338 30 Synchronized 25 Horizontal White Vertical 4903-9345
4903-9339 110 Synchronized 25 Horizontal White Vertical 4903-9346
4903-9340 15 Synchronized 70 Horizontal White Vertical 4903-9344
4903-9341 30 Synchronized 70 Horizontal White Vertical 4903-9345
4903-9342 110 Synchronized 70 Horizontal White Vertical 4903-9346
4903-9343 110 Free-run/Synchronized 25/70 Horizontal Red Vertical 4903-9145, 4903-9178, 4903-9306, 4903-9336
4903-9344 15 Free-run/Synchronized 25/70 Horizontal White Vertical 4903-9179, 4903-9182, 4903-9337, 4903-9340
4903-9345 30 Free-run/Synchronized 25/70 Horizontal White Vertical 4903-9180, 4903-9183, 4903-9338, 4903-9341
4903-9346 110 Free-run/Synchronized 25/70 Horizontal White Vertical 4903-9181, 4903-9184, 4903-9339, 4903-9342
4903-9347 15 Free-run/Synchronized 25/70 Ceiling Red Round 4903-9307, 4903-9310
4903-9348 30 Free-run/Synchronized 25/70 Ceiling Red Round 4903-9308, 4903-9311
4903-9349 110 Free-run/Synchronized 25/70 Ceiling Red Round 4903-9309, 4903-9312

Rectangular horn strobes

Model number Horn model Candela Strobe orientation Strobe sync Mounting orientation Color Replaces Replaced By Current Replacement
4903-9200[55] 4901-9805 15 Vertical 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) Horizontal Red 4903-9219 4903-9252

4903-9425

4903-9201 4901-9805 30 Vertical 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) Horizontal Red 4903-9215 4903-9253

4903-9426 (75CD)

4903-9202[56] 4901-9805 110 Vertical 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) Horizontal Red 4903-9217 4903-9254

4903-9427

4903-9203 4901-9805 15 Horizontal 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) Vertical Red 4903-9220 4903-9255

4903-9425

4903-9204 4901-9805 30 Horizontal 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) Vertical Red 4903-9216 4903-9426 (75CD)
4903-9205 4901-9805 110 Horizontal 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) Vertical Red 4903-9218 4903-9256

4903-9427

4903-9206 4901-9805 15 Vertical 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) Horizontal White 4903-9221 4903-9431
4903-9207 4901-9805 30 Vertical 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) Horizontal White 4903-9222 4903-9432 (75CD)
4903-9208 4901-9805 110 Vertical 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) Horizontal White 4903-9223 4903-9433
4903-9209 4901-9805 15 Ceiling 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) Ceiling Red 4903-9262 4903-9274

4903-9434

4903-9210 4901-9805 30 Ceiling 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) Ceiling Red 4903-9263 4903-9275

4903-9436 (75CD)

4903-9211 4901-9805 110 Ceiling 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) Ceiling Red 4903-9264 4903-9276

4903-9436

4903-9212 4901-9805 15 Ceiling 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) Ceiling White 4903-9265 4903-9277

4903-9437

4903-9213 4901-9805 30 Ceiling 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) Ceiling White 4903-9266 4903-9278

4903-9438 (75CD)

4903-9214 4901-9805 110 Ceiling 24 FPM (Note; this is NOT SmartSync, this just takes a long time for the strobe to charge up) Ceiling White 4903-9267 4903-9279

4903-9439

4903-9215[57] 4901-9805 30 Vertical Free-run Horizontal Red 4903-9201 4903-9237 4903-9253

4903-9426 (75CD)

4903-9216 4901-9805 30 Horizontal Free-run Vertical Red 4903-9204 4903-9426 (75CD)
4903-9217[58] 4901-9805 110 Vertical Free-run Horizontal Red 4903-9202 4903-9238 4903-9254

4903-9427

4903-9218[59] 4901-9805 110 Horizontal Free-run Vertical Red 4903-9205 4903-9240 4903-9256

4903-9427

4903-9219[60] 4901-9805 15 Vertical Free-run Horizontal Red 4903-9200 4903-9236 4903-9252

4903-9425

4903-9220[61] 4901-9805 15 Horizontal Free-run Vertical Red 4903-9203 4903-9239 4903-9255

4903-9425

4903-9221[62] 4901-9806 15 Vertical Free-run Horizontal White 4903-9206 4903-9241 4903-9431
4903-9222[63] 4901-9806 30 Vertical Free-run Horizontal White 4903-9207 4903-9242 4903-9432 (75CD)
4903-9223 4901-9806 110 Vertical Free-run Horizontal White 4903-9208 4903-9243 4903-9433
4903-9225 4901-9806 15 Horizontal Free-run Vertical White 4903-9244 4903-9431
4903-9226 4901-9806 30 Horizontal Free-run Vertical White 4903-9432 (75CD)
4903-9227 4901-9806 110 Horizontal Free-run Vertical White 4903-9245 4903-9433
4903-9236[64] 4901-9822 15 Vertical Free-run Horizontal Red 4903-9200, 4903-9219 4903-9252, 4903-9425
4903-9237[65] 4901-9822 30 Vertical Free-run Horizontal Red 4903-9201, 4903-9215 4903-9253, 4903-9426 (75CD)
4903-9238[66] 4901-9822 110 Vertical Free-run Horizontal Red 4903-9202, 4903-9217 4903-9254, 4903-9427
4903-9239[67] 4901-9822 15 Horizontal Free-run Vertical Red 4903-9203, 4903-9220 4903-9255, 4903-9425
4903-9240 4901-9822 110 Horizontal Free-run Vertical Red 4903-9205, 4903-9218 4903-9256, 4903-9427
4903-9241[68] 4901-9822 (in white) 15 Vertical Free-run Horizontal White 4903-9206, 4903-9221 4903-9257, 4903-9431 4903-9431
4903-9242[69] 4901-9822 (in white) 30 Vertical Free-run Horizontal White 4903-9207, 4903-9222 4903-9258, 4903-9432 (75CD) 4903-9432 (75CD)
4903-9244 4901-9822 (in white) 15 Horizontal Free-run Vertical White 4903-9225 4903-9260

4903-9431

4903-9245 4901-9822 (in white) 110 Horizontal Free-run Vertical White 4903-9227 4903-9261

4903-9433

4903-9252[70][71] 4901-9822 15 Vertical Free-run Horizontal Red 4903-9200, 4903-9219, 4903-9236, 4903-9401, 4903-9422
4903-9253[72] 4901-9822 30 Vertical Free-run Horizontal Red 4903-9201, 4903-9215, 4903-9237, 4903-9403, 4903-9423
4903-9254[73] 4901-9822 110 Vertical Free-run Horizontal Red 4903-9202, 4903-9217, 4903-9238, 4903-9405, 4903-9424
4903-9255[74] 4901-9822 15 Horizontal Free-run Vertical Red 4903-9203, 4903-9220, 4903-9239, 4903-9402, 4903-9420
4903-9256 4901-9822 110 Horizontal Free-run Vertical Red 4903-9205, 4903-9218, 4903-9240, 4903-9406, 4903-9421
4903-9257[75] 4901-9822 (in white) 15 Vertical Free-run Horizontal White 4903-9221, 4903-9241, 4903-9413

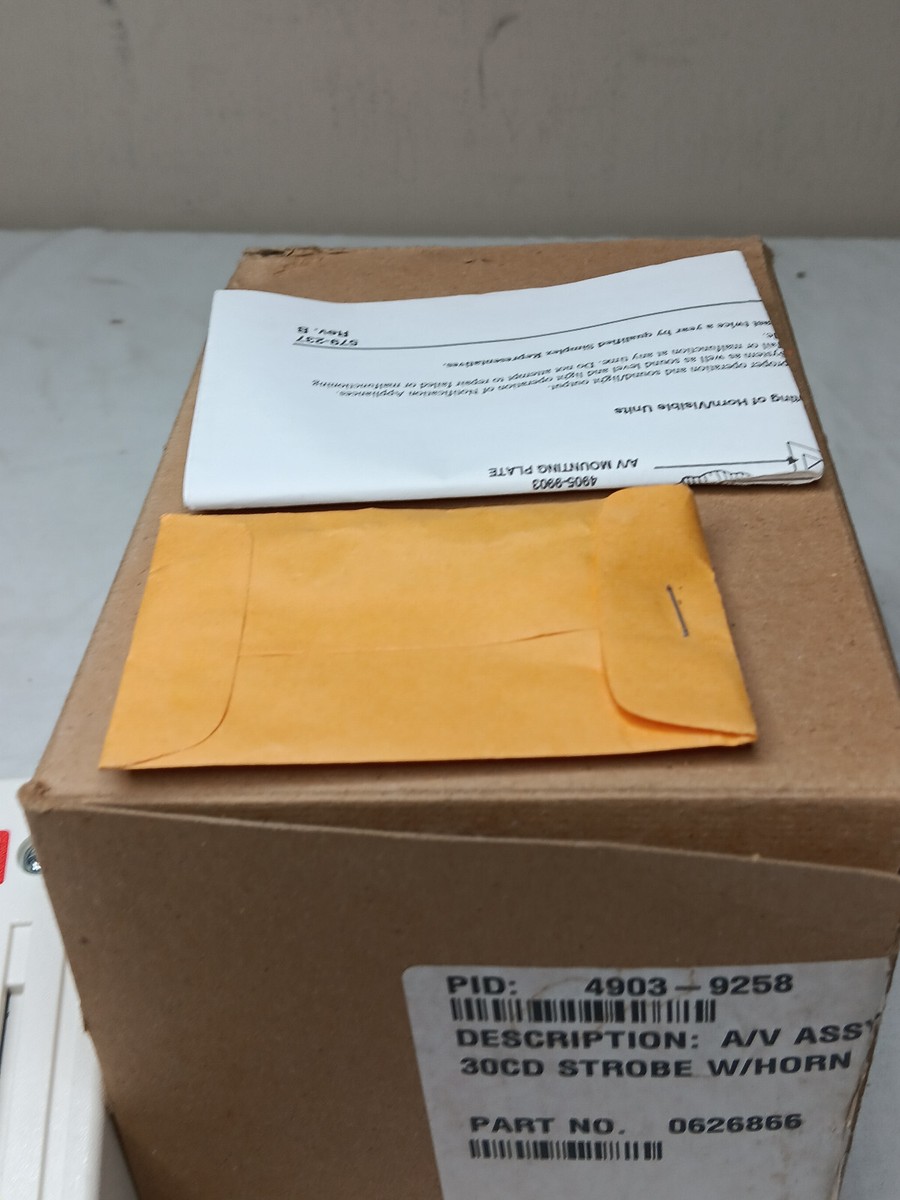

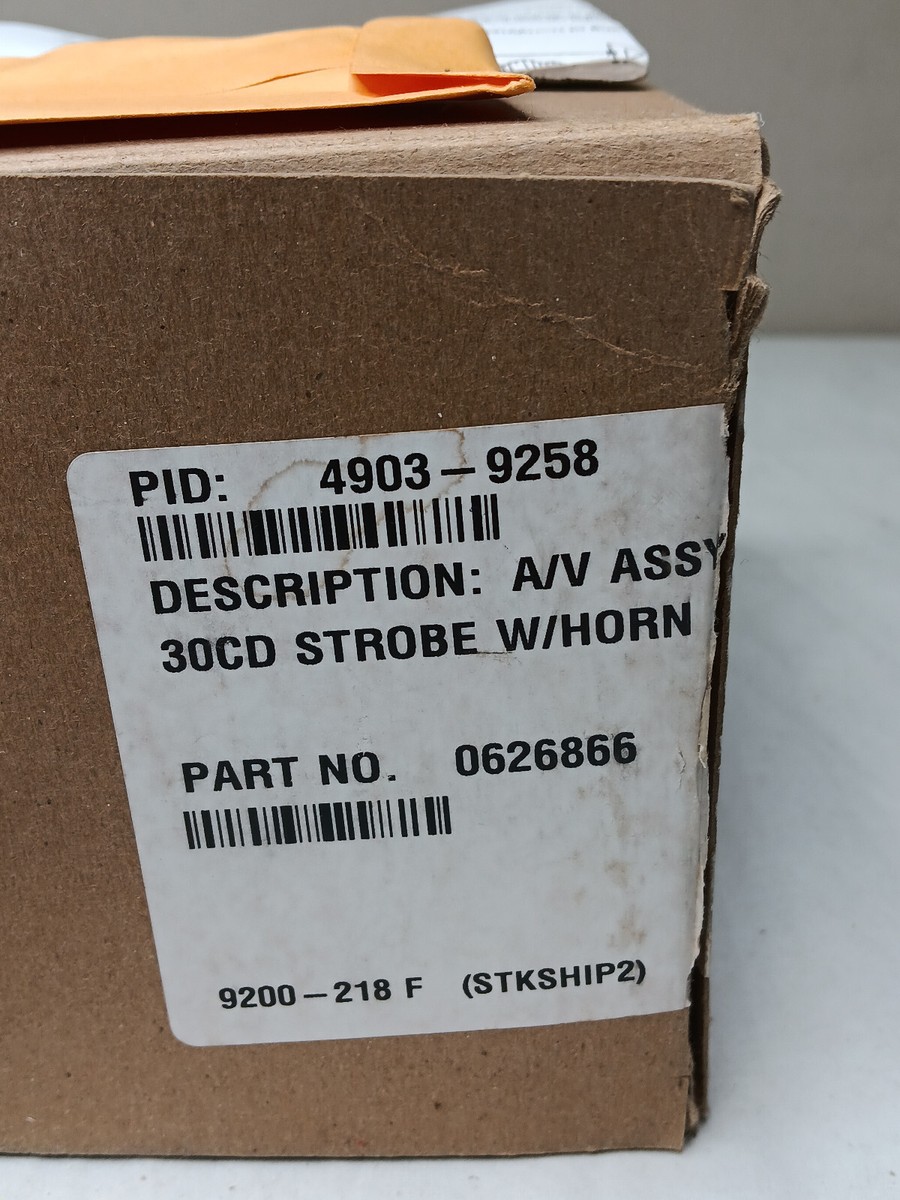

4903-9258[76][77][78][79][80][81][82] 4901-9822 (in white) 30 Vertical Free-run Horizontal White 4903-9222, 4903-9242, 4903-9414
4903-9259 4901-9822 (in white) 110 Vertical Free-run Horizontal White 4903-9223, 4903-9243, 4903-9415
4903-9260 4901-9822 (in white) 15 Horizontal Free-run Vertical White 4903-9225, 4903-9244
4903-9261 4901-9822 (in white) 110 Horizontal Free-run Vertical White 4903-9227, 4903-9245
4903-9262 4901-9805 15 Ceiling Free-run Ceiling Red 4903-9209 4903-9268 4903-9274

4903-9434

4903-9263 4901-9805 30 Ceiling Free-run Ceiling Red 4903-9210 4903-9269 4903-9275

4903-9436 (75CD)

4903-9264 4901-9805 110 Ceiling Free-run Ceiling Red 4903-9211 4903-9270 4903-9276

4903-9436

4903-9265 4901-9806 15 Ceiling Free-run Ceiling White 4903-9212 4903-9271 4903-9277

4903-9437

4903-9266 4901-9806 30 Ceiling Free-run Ceiling White 4903-9213 4903-9272 4903-9278

4903-9438 (75CD)

4903-9267 4901-9806 110 Ceiling Free-run Ceiling White 4903-9214 4903-9273 4903-9279

4903-9439

4903-9268 4901-9822 15 Ceiling Free-run Ceiling Red 4903-9262 4903-9274, 4903-9434
4903-9269 4901-9822 30 Ceiling Free-run Ceiling Red 4903-9263 4903-9275, 4903-9435 (75CD)
4903-9270 4901-9822 110 Ceiling Free-run Ceiling Red 4903-9264 4903-9276, 4903-9436
4903-9271 4901-9822 (in white) 15 Ceiling Free-run Ceiling White 4903-9265 4903-9277, 4903-9437
4903-9272 4901-9822 (in white) 30 Ceiling Free-run Ceiling White 4903-9266 4903-9278, 4903-9438 (75CD)
4903-9273 4901-9822 (in white) 110 Ceiling Free-run Ceiling White 4903-9267 4903-9279, 4903-9439
4903-9274 4901-9822 15 Ceiling Free-run/Synchronized Ceiling Red 4903-9209, 4903-9262, 4903-9268, 4903-9407
4903-9275 4901-9822 30 Ceiling Free-run/Synchronized Ceiling Red 4903-9210, 4903-9263, 4903-9269, 4903-9408
4903-9276 4901-9822 110 Ceiling Free-run/Synchronized Ceiling Red 4903-9211, 4903-9264, 4903-9270, 4903-9409
4903-9277 4901-9822 (in white) 15 Ceiling Free-run/Synchronized Ceiling White 4903-9212, 4903-9265, 4903-9271, 4903-9410
4903-9278 4901-9822 (in white) 30 Ceiling Free-run/Synchronized Ceiling White 4903-9213, 4903-9266, 4903-9272, 4903-9411
4903-9279 4901-9822 (in white) 110 Ceiling Free-run/Synchronized Ceiling White 4903-9214, 4903-9267, 4903-9273, 4903-9412
4903-9401[83] 4901-9805 15 Vertical Synchronized[citation needed] Horizontal Red 4903-9422 4903-9252

4903-9425

4903-9402 4901-9805 15 Horizontal Synchronized Vertical Red 4903-9420 4903-9255

4903-9425

4903-9403[84] 4901-9805 30 Vertical Synchronized Horizontal Red 4903-9423 4903-9253

4903-9426 (75CD)

4903-9404 4901-9805 30 Horizontal Synchronized Vertical Red 4903-9426 (75CD)
4903-9405[85] 4901-9805 110 Vertical Synchronized Horizontal Red 4903-9424 4903-9254

4903-9427

4903-9406 4901-9805 110 Horizontal Synchronized Vertical Red 4903-9421 4903-9256

4903-9427

4903-9407 4901-9805 15 Ceiling Synchronized Ceiling Red 4903-9274, 4903-9434
4903-9408 4901-9805 30 Ceiling Synchronized Ceiling Red 4903-9275, 4903-9435 (75CD)
4903-9409 4901-9805 110 Ceiling Synchronized Ceiling Red 4903-9276, 4903-9436
4903-9410 4901-9806 15 Ceiling Synchronized Ceiling White 4903-9277, 4903-9437
4903-9411 4901-9806 30 Ceiling Synchronized Ceiling White 4903-9278, 4903-9438 (75CD)
4903-9412 4901-9806 110 Ceiling Synchronized Ceiling White 4903-9279, 4903-9439
4903-9413 4901-9806 15 Vertical Synchronized Horizontal White 4903-9257

4903-9431

4903-9431
4903-9414 4901-9806 30 Vertical Synchronized Horizontal White 4903-9258

4903-9432

4903-9432
4903-9415 4901-9806 110 Vertical Synchronized Horizontal White 4903-9259

4903-9433

4903-9433
4903-9420 4901-9822 15 Horizontal Synchronized Vertical Red 4903-9402 4903-9255

4903-9425

4903-9421 4901-9822 110 Horizontal Synchronized Vertical Red 4903-9406 4903-9256

4903-9427

4903-9422[86] 4901-9822 15 Vertical Synchronized Horizontal Red 4903-9401 4903-9252, 4903-9425
4903-9423[87] 4901-9822 30 Vertical Synchronized Horizontal Red 4903-9403 4903-9253, 4903-9426 (75CD)
4903-9424[88] 4901-9822 110 Vertical Synchronized Horizontal Red 4903-9405 4903-9254, 4903-9427

Rebranded horn strobes

Simplex model OEM OEM model Replaced Replaced by
4903-9103 Gentex GX90S-4
4903-9224 Gentex GX90S-4-15/75WR
4903-9230 Wheelock MT-24-SL-VFR 4903-9425
4903-9231 Wheelock MT-24-SLM-VFR
4903-9232 Wheelock MIZ-24-LS-VFR
4903-9233 Wheelock MIZ-24-LSM-VFR
4903-9234[89][90][91][92][93][94][95][96][97][98][99][100][101] Wheelock MT-24-LSM-VFR
4903-9235[102] Wheelock MT-24-WM-VFR 4903-9427
4903-9243[103][104][105][106][107] Wheelock AS-24110W-FR 4903-9419
4903-9246[108][109][110] Wheelock AS-2430W-FR
4903-9247[111] Wheelock AS-2475W-FR 4903-9418
4903-9248 Wheelock NS4-2415W-FR
4903-9249 Wheelock NS4-241575W-FR

Rebranded speaker strobes

Simplex model OEM OEM model Replaced Replaced by
4903-9179 Wheelock E-70-SL-24-VFR
4903-9180 Wheelock E-70-SLM-24-VFR
4903-9181 Wheelock ET-1070-SL-24-VFR
4903-9182 Wheelock ET-1070-SLM-24-VFR
4903-9183 Wheelock ET-1080-SL-24-VFR
4903-9184 Wheelock ET-1080-SLM-24-VFR
4903-9185 Wheelock E-70-SL-24-CFR
4903-9186 Wheelock E70-2415W-FR
4903-9187[112][113][114][115][116][117][118] Wheelock E70-241575W-FR
4903-9188[119][120][121][122][123][124][125][126][127] Wheelock E90-2415C-FW
4903-9189 Wheelock ET70-2415W-FR
4903-9190 Wheelock ET70-241575W-FR
4903-9191 Wheelock E90-2430C-FW
4903-9192 Wheelock E90-2475C-FW

Rebranded chime strobes

Simplex Model OEM OEM model Replaced Replaced By
4903-9293[128][129] Wheelock CH70-241575W-FR

Notes

  1. ↑ Faraday manufactured the horn component of the mechanical horn strobes.
  2. ↑ Gentex only manufactured the strobe assembly for the ADA strobe plates before Simplex started manufacturing A/V combos as opposed to audibles and visuals separately

References

  1. ↑ https://www.schuminweb.com/fire_alarms/simplex-4903-9101/
  2. ↑ https://firealarms.tv/collection/simplex-4903-9102/
  3. ↑ https://www.ebay.com/itm/115884333480
  4. ↑ http://www.fazone.net/html/simplex_4903-9105.html
  5. ↑ https://i.ebayimg.com/images/g/cRIAAOSwJkJWlbn~/s-l1600.jpg
  6. ↑ https://i.ebayimg.com/images/g/zeYAAOSwX~dWlboF/s-l1600.jpg
  7. ↑ https://i.ebayimg.com/images/g/tVEAAOSwwPhWlbn5/s-l1600.jpg
  8. ↑ https://i.ebayimg.com/images/g/cAoAAOSwJkJWlbnz/s-l1600.jpg
  9. ↑ https://i.ebayimg.com/images/g/OvsAAOSwpK1kwxmu/s-l1600.webp
  10. ↑ https://cdn.thefirepanel.com/original/2X/4/4264c21bc0179fad81c01e18495d67686d765318.jpeg
  11. ↑ https://cdn.thefirepanel.com/original/3X/0/6/06a676035e8d8283bf777c6f8c1ad4696c438eb6.jpeg
  12. ↑ https://cdn.thefirepanel.com/original/3X/c/0/c02fdd2dcd36ccaef5b00ee91cb04bd72944088d.jpeg
  13. ↑ https://www.ebay.com/itm/280885619273
  14. ↑ https://www.ebay.com/itm/364216814892
  15. ↑ https://cdn.thefirepanel.com/original/3X/3/7/377c69f927629133584dbbaed1782ae844a8071e.jpeg
  16. ↑ https://i.ebayimg.com/images/g/SxQAAOSw0AtoWV0c/s-l1600.webp
  17. ↑ https://i.ebayimg.com/images/g/sdoAAOSwlbpoWV0d/s-l1600.webp
  18. ↑ https://i.ebayimg.com/images/g/Uq4AAOSwHkVoWV0e/s-l1600.webp
  19. ↑ https://www.youtube.com/watch?v=5EJuKh94kjo
  20. ↑ https://www.youtube.com/watch?v=PHzZWzRRb7I
  21. ↑ "Speaker/Visible Appliances; Speaker with Strobe Selectable as Free-Run or Synchronized" (S4903-0016-5). Simplex (May 2014).
  22. ↑ https://www.buyfirealarmparts.com/shop/simplex-4903-9148-speaker-strobe.html
  23. ↑ https://cdn.thefirepanel.com/original/3X/b/f/bfc9c9518405fdc828caae3a6705cee4425469c4.jpeg
  24. ↑ https://www.buyfirealarmparts.com/shop/simplex-4903-9150-strobe-with-speakers.html
  25. ↑ https://thefirealarmsupplier.com/cdn/shop/products/simplex-4903-9153-812933.jpg?v=1719577463&width=2048
  26. ↑ https://cdn.thefirepanel.com/docs/simplex/Simplex%20-%204903%20Speaker%20Visible%20And%204904%20Visible%20Only%20Units%20Installation%20Instructions.pdf
  27. ↑ https://www.buyfirealarmparts.com/shop/simplex-4903-9167.html
  28. ↑ https://firealarms.tv/wp-content/uploads/2016/04/4903-9168_2751_1.jpg
  29. ↑ https://www.picclickimg.com/images/g/yskAAOSwU0VdwXlc/s-l1600.jpg
  30. ↑ https://th.bing.com/th/id/R.ac234a1bd1ba468393924615b326c8f3?rik=2oMAJSRwnemcNw&riu=http%3a%2f%2fs3.amazonaws.com%2fidealm_img%2f15000%2f15423%2f15423.jpg&ehk=iaU9FHxig5W4j0a4wfVO%2f0L%2bqTXf2U06aI0qThClDC8%3d&risl=&pid=ImgRaw&r=0
  31. ↑ https://sbindustrialsupply.com/wp-content/uploads/imported/1/91/NEW-SIMPLEX-4903-9174-FIRE-ALARM-HORNSTROBE-49039174-193773879891.JPG
  32. ↑ https://www.buyfirealarmparts.com/shop/pub/media/catalog/product/cache/86a3c1e3f0f8a151f5dc54c5673def02/d/s/dscn1796.png
  33. ↑ https://th.bing.com/th/id/R.c8941a1bf5b3bc29f5d6b2853d162a03?rik=Gr3mjZ%2b%2fPGYDIg&riu=http%3a%2f%2flistings.toomanyamps.com%2fimage%2fSIM49039195USED-B.jpg&ehk=mcwsfpL6Nufj%2bTXHrbxmZGT%2fUyd%2bkWIwa9JxKmKGDpQ%3d&risl=1&pid=ImgRaw&r=0
  34. ↑ https://www.buyfirealarmparts.com/shop/pub/media/catalog/product/cache/6de89ad008d52a1c1754ac54640b396e/d/s/dscn2357.png
  35. ↑ https://www.buyfirealarmparts.com/shop/pub/media/catalog/product/cache/6de89ad008d52a1c1754ac54640b396e/2/0/20200820_122206_edited.jpg
  36. ↑ https://www.buyfirealarmparts.com/shop/pub/media/catalog/product/cache/86a3c1e3f0f8a151f5dc54c5673def02/s/i/simplex_4903-9198_4_edited.jpg
  37. ↑ https://i.ebayimg.com/images/g/3GAAAeSwaqVoLmIs/s-l1200.jpg
  38. ↑ https://i.ebayimg.com/images/g/9b0AAeSwl3loLmIu/s-l1200.jpg
  39. ↑ https://i.ebayimg.com/images/g/c6cAAeSwNV1oLmIu/s-l1200.jpg
  40. ↑ https://www.youtube.com/watch?v=RAkmfAXi37g
  41. ↑ https://i.ebayimg.com/images/g/EvIAAOSwqtljA-SK/s-l1600.jpg
  42. ↑ https://i.ebayimg.com/images/g/OigAAOSwud9jA-SN/s-l1600.webp
  43. ↑ https://i.ebayimg.com/images/g/0sMAAOSw9cljA-SO/s-l1600.webp
  44. ↑ https://i.ebayimg.com/images/g/ZZgAAOSw031jA-SP/s-l1600.webp
  45. ↑ https://i.ebayimg.com/images/g/W6EAAOSwN39jA-SQ/s-l1600.webp
  46. ↑ https://i.ebayimg.com/images/g/easAAOSwRU5jA-SS/s-l1600.webp
  47. ↑ https://i.ebayimg.com/images/g/psgAAOSws5NjA-ST/s-l1600.webp
  48. ↑ https://www.youtube.com/watch?v=DV7IscnjMQA
  49. ↑ https://i.ebayimg.com/images/g/FLMAAeSwf-hpC4Oh/s-l1200.png
  50. ↑ https://i.ebayimg.com/images/g/9pAAAeSwd0tpC4Oh/s-l1200.png
  51. ↑ https://i.ebayimg.com/images/g/VXMAAeSwK0RpC4Oj/s-l1200.png
  52. ↑ https://i.ebayimg.com/images/g/fj0AAeSwBzFpC4Kr/s-l1200.png
  53. ↑ https://i.ebayimg.com/images/g/rXEAAeSwtwVpC4Ks/s-l1200.png
  54. ↑ https://i.ebayimg.com/images/g/ZocAAeSwkvBpC4Ks/s-l1200.png
  55. ↑ https://cdn.thefirepanel.com/original/2X/5/5f58b8b378f0c992138de9f05ce059ef97794858.jpeg
  56. ↑ https://www.youtube.com/watch?v=5pjilhUNvqE
  57. ↑ https://www.imssupply.com/productImages/4/6/2/D/9/9/1/462D9918-4BB7-4DCA-9B47-6933CB2FB6B8_01.JPG?timestamp=1738181184828
  58. ↑ https://firealarms.tv/collection/simplex-4903-9217/
  59. ↑ https://i.ebayimg.com/images/g/ZhkAAOSw7oNnN3M6/s-l1200.jpg
  60. ↑ https://firealarms.tv/collection/simplex-4903-9219/
  61. ↑ https://firealarms.tv/collection/simplex-4903-9220/
  62. ↑ https://www.youtube.com/watch?v=xquTiNlfoSs
  63. ↑ https://cdn.thefirepanel.com/original/2X/c/c9a8e4f80b8f895f975c00b0f63fd6a7f7744f36.jpeg
  64. ↑ https://firealarms.tv/collection/simplex-4903-9236/
  65. ↑ https://www.youtube.com/watch?v=25aKQxN2-k8
  66. ↑ https://firealarms.tv/collection/simplex-4903-9238/
  67. ↑ https://firealarms.tv/collection/simplex-4903-9239/
  68. ↑ https://firealarms.tv/wp-content/uploads/2016/05/4903-9241_6071_1.jpg
  69. ↑ https://www.youtube.com/watch?v=N8jsp8gEFqM
  70. ↑ https://docs.johnsoncontrols.com/simplex/api/khub/documents/_YIm58KQE~0K3eWQeIW0Gw/content
  71. ↑ https://www.fazone.net/Simplex_4903-9252_1.JPG
  72. ↑ https://www.buyfirealarmparts.com/shop/pub/media/catalog/product/cache/6de89ad008d52a1c1754ac54640b396e/4/9/4903-9253_edited.jpg
  73. ↑ https://i.ebayimg.com/images/g/S7EAAOSwhLFnX1T0/s-l1600.webp
  74. ↑ https://www.hvacusa.com/simplex_4903-9255
  75. ↑ https://www.youtube.com/watch?v=y2ovJhe75IU
  76. ↑ https://i.ebayimg.com/images/g/YBQAAOSw5wxoN0EK/s-l1200.jpg
  77. ↑ https://i.ebayimg.com/images/g/gekAAOSwzdJoN0EL/s-l1200.jpg
  78. ↑ https://i.ebayimg.com/images/g/6KUAAOSwYNxoN0EL/s-l1200.jpg
  79. ↑ https://i.ebayimg.com/images/g/u6oAAOSwLMNoN0EK/s-l1200.jpg
  80. ↑ https://i.ebayimg.com/images/g/Ia4AAOSwg85oN0EM/s-l1200.jpg
  81. ↑ https://i.ebayimg.com/images/g/9zAAAOSwkOdoN0EN/s-l1200.jpg
  82. ↑ https://i.ebayimg.com/images/g/MrwAAOSwakZoN0EN/s-l1200.jpg
  83. ↑ https://www.youtube.com/watch?v=RXFFDaqaaGI
  84. ↑ https://www.youtube.com/watch?v=-hggxK87Ts8
  85. ↑ http://www.fazone.net/html/simplex_4903-9405.html
  86. ↑ https://th.bing.com/th/id/R.ade977406190a6d7de0dfec9e37bf1b9?rik=exDEIx%2bV4gFgcQ&riu=http%3a%2f%2ffiles.schuminweb.com%2fodds-and-ends%2falarm-collection%2ffull-size%2fsimplex-4903-9422-01.jpg&ehk=4meAV6lKVk7hT1jqOJLCLPTHSJcMdDaUpJFsKMF0xfA%3d&risl=&pid=ImgRaw&r=0
  87. ↑ https://www.youtube.com/watch?v=1BOCV9ego6Q
  88. ↑ https://www.fazone.net/html/simplex_4903-9424.html
  89. ↑ https://i.ebayimg.com/images/g/AKAAAOSw-m1oJ5KZ/s-l1200.jpg
  90. ↑ https://i.ebayimg.com/images/g/9ekAAOSwDSVoJ5Kb/s-l1200.jpg
  91. ↑ https://i.ebayimg.com/images/g/JEsAAOSwHuNoJ5Kc/s-l1200.jpg
  92. ↑ https://i.ebayimg.com/images/g/VW0AAOSwxfxoJ5Ke/s-l1200.jpg
  93. ↑ https://i.ebayimg.com/images/g/7~oAAOSwB9BoJ5Kg/s-l1200.jpg
  94. ↑ https://i.ebayimg.com/images/g/S6sAAOSwCaJoJ5Kh/s-l1200.jpg
  95. ↑ https://i.ebayimg.com/images/g/0SwAAOSwAWZoJ5Ki/s-l1200.jpg
  96. ↑ https://i.ebayimg.com/images/g/Y9MAAOSwPgJoJ5Kk/s-l1200.jpg
  97. ↑ https://i.ebayimg.com/images/g/NbAAAOSwJRVoJ5Kl/s-l1200.jpg
  98. ↑ https://i.ebayimg.com/images/g/H3QAAOSwqQxoJ5Km/s-l1200.jpg
  99. ↑ https://i.ebayimg.com/images/g/~XIAAOSwxr9oJ5Ko/s-l1200.jpg
  100. ↑ https://i.ebayimg.com/images/g/LpEAAOSwr79oJ5Kp/s-l1200.jpg
  101. ↑ https://i.ebayimg.com/images/g/5PQAAOSwWAhoJ5Kq/s-l1200.jpg
  102. ↑ http://www.fazone.net/html/wheelock_mt-24-wm.html
  103. ↑ https://www.ebay.com/itm/177898636470?itmmeta=01KJTGF6X80BCMQ7MQ23N89NNA&hash=item296b95c4b6:g:kEEAAeSwrClpoG2J
  104. ↑ https://www.ebay.com/itm/177898636470?itmmeta=01KJTGF6X80BCMQ7MQ23N89NNA&hash=item296b95c4b6:g:kEEAAeSwrClpoG2J
  105. ↑ https://www.ebay.com/itm/177898636470?itmmeta=01KJTGF6X80BCMQ7MQ23N89NNA&hash=item296b95c4b6:g:kEEAAeSwrClpoG2J
  106. ↑ https://www.ebay.com/itm/177898636470?itmmeta=01KJTGF6X80BCMQ7MQ23N89NNA&hash=item296b95c4b6:g:kEEAAeSwrClpoG2J
  107. ↑ https://www.ebay.com/itm/177898636470?itmmeta=01KJTGF6X80BCMQ7MQ23N89NNA&hash=item296b95c4b6:g:kEEAAeSwrClpoG2J
  108. ↑ https://i.ebayimg.com/images/g/I0sAAOSwES1n6wvC/s-l1200.jpg
  109. ↑ https://i.ebayimg.com/images/g/zs8AAOSw6UBn6wvF/s-l1200.jpg
  110. ↑ https://i.ebayimg.com/images/g/RY8AAOSwKPxn6wvI/s-l1200.jpg
  111. ↑ https://i.ebayimg.com/images/g/vCYAAOSwiYleVsEz/s-l640.jpg
  112. ↑ https://i.ebayimg.com/images/g/kWoAAOSwMrJnhE38/s-l1600.webp
  113. ↑ https://i.ebayimg.com/images/g/6z0AAOSwqPlnhE4j/s-l1600.webp
  114. ↑ https://i.ebayimg.com/images/g/cmoAAOSwEChnhE8n/s-l1600.webp
  115. ↑ https://i.ebayimg.com/images/g/StgAAOSwrBVnhE41/s-l1600.webp
  116. ↑ https://i.ebayimg.com/images/g/m70AAOSw9E1nhE8U/s-l1600.webp
  117. ↑ https://i.ebayimg.com/images/g/7mwAAOSwtGBnhE4I/s-l1600.webp
  118. ↑ https://i.ebayimg.com/images/g/4-sAAOSw7NNnhE4T/s-l1600.webp
  119. ↑ https://i.ebayimg.com/images/g/qW0AAOSw3vVnS3AO/s-l1600.webp
  120. ↑ https://i.ebayimg.com/images/g/NogAAOSwnQVnS3AP/s-l1600.webp
  121. ↑ https://i.ebayimg.com/images/g/0N0AAOSwacBnS3AQ/s-l1600.webp
  122. ↑ https://i.ebayimg.com/images/g/4CwAAOSwrllnS3AQ/s-l1600.webp
  123. ↑ https://i.ebayimg.com/images/g/hSEAAOSwz8xnS3AR/s-l1600.webp
  124. ↑ https://i.ebayimg.com/images/g/nIcAAOSwqj1nS3AW/s-l1600.webp
  125. ↑ https://i.ebayimg.com/images/g/U9IAAOSwA4RnS3AX/s-l1600.webp
  126. ↑ https://i.ebayimg.com/images/g/BjsAAOSw7iNnS3AX/s-l1600.webp
  127. ↑ https://i.ebayimg.com/images/g/LA0AAOSwCJdnS3AY/s-l1600.webp
  128. ↑ https://i.ebayimg.com/images/g/2zYAAOSwA7hn9nou/s-l1600.webp
  129. ↑ https://i.ebayimg.com/images/g/RVsAAOSwSeRn9npS/s-l1600.webp

|}

Retrieved from "https://wiki.thefirepanel.com/index.php?title=Simplex_4903_series&oldid=3867"
