Wheelock ET series

From The Fire Panel
Wheelock ET series
Manufacturer

Wheelock {"label": "Manufacturer", "field": "Wheelock"}

Color(s)
Red
White
Nickel
{"label": "Color(s)", "field": "
Red
White
Nickel
"}
Rated Voltage

25VRMS & 70VRMS (speaker)
24VDC (strobe) {"label": "Rated Voltage", "field": "25VRMS & 70VRMS (speaker)
24VDC (strobe)"}

Introduced

1983[1] {"label": "Introduced", "field": "1983[1]"}

Preceded by

Wheelock 800 series {"label": "Preceded by", "field": "Wheelock 800 series"}

Succeeded by

Wheelock Eluxa series {"label": "Succeeded by", "field": "Wheelock Eluxa series"}

{
    "rows": [],
    "title": "Wheelock ET series",
    "images": []
}

The Wheelock ET series is a series of speakers and speaker strobes.

History

Originally known as the ET-1000 series, the ET series was released in 1983 with the ET-1010.[1] These speakers introduced dual-voltage operation and provided more power taps. Strobe models were also produced with the WS strobes, similar to the 800 series.

In 1984, Wheelock introduced the ET-1070 and ET-1090 as speaker versions of the CH-DF and CH-CF chimes respectively. The ET-1080 was also introduced as a vandal-resistant version of the ET-1070 along with the 881T.

The ET70 series was released in 1997 as part of Wheelock's SquareONE series to replace the ET-1070 speakers.[2] The ET90 series was also introduced around this time to replace the ET-1090 speakers. Like the E series, CH series, and SA-S, these speakers featured new two-screw grille covers. These new speakers featured a similar wattage selection mechanism to the E series, and 4 watt compatibility was added for 25-volt mode. Additionally, the DC blocking capacitor was changed to a 250 V capacitor. The wattage changes were also made to the ET-1080 and ET-1081 at this time, and the DC blocking capacitor was changed on the ET-1080, while the ET-1081 kept its old capacitor.

In 2000, the ET70-24MCW was released as part of the SPEC1FIRE series of multi-candela appliances.[3] The ET90-24MCC and ET90R-24MCC were released in June 2003, with the corresponding single-candela models discontinued in September 2003.[4] The ET70-24MCWH and ET90-24MCCH were released in September 2003, and the corresponding single-candela models were discontinued in December 2003.

In 2004, Wheelock replaced the ET-1080 strobe models with the ET80, which used the same strobes as the ET70.[5][6] The strobe was placed similar to the strobe on the MT, AMT, and HS4.

At the end of 2015, the ET70-241575W and ET80-241575W were discontinued, and customers were instructed to switch to the ET70-24MCW and ET80-24MCW respectively.[7]

In 2023, the ET series strobe models were discontinued. The ET70 and ET90 speaker-only models were also discontinued as of February 2024.[8] Eluxa versions of the ET speakers were announced for Q1 2024, and 8-watt indoor Eluxa speakers were released in May 2025.[9]

Features

The ET series speakers have power taps for 1/8, 1/4, 1/2, 1, 2, 4, and 8 watts. On the ET70 and ET90, this provides sound output between 75 and 93 dB. All speakers have a frequency response of 400-4000 Hz.[10]

The strobes on the ET70 and ET90 are similar to the RSS, with possible strobe intensities of 15, 15/75, 30, 75, 95, 100, 110, 115, 135, 150, 177, or 185 candela depending on the model.

Models

ET-1010 series

Model Number Candela Mounting Replaces Replaced by
ET-1010 N/A Wall 816T Still in production
ET-1010-WS24[11] 1.5 Wall 806T + WS-24VDC None
ET-1011-WS24 1.5 Wall ET-1081-LS-24-VFR

ET-1070 series

Model Number Candela Mounting Replaces Replaced by
ET-1070-WS-24 1.5 Wall None ET-1070-LS-24-VFR
ET-1070-WM-24 117 Wall None ET-1070-LSM-24-VFR
ET-1070-LS-24-VFR 15 Wall ET-1070-WS-24 ET70-2415W-FR
ET-1070-LSM-24-VFR 15/75 Wall ET-1070-WM-24 ET70-241575W-FR
ET-1070-MS-24-VFR 30 Wall None ET70-2430W-FR
ET-1070-IS-24-VFR 75 Wall None ET70-2475W-FR

ET-1080 series

Model Number Candela Mounting Color Replaces Replaced by
ET-1080 N/A Wall Red 881T Still in production
ET-1080-WS-24 1.5 Wall Red F819T+WS-24VDC ET-1080-LS-24-VFR
ET-1080-LS-24-VFR 15 Wall Red ET-1080-WS-24 ET80-24MCW-FR
ET-1080-LS-24-VFW[12] 15 Wall White ET80-24MCW-FW
ET-1080-LSM-24-VFR 15/75 Wall Red None ET80-241575W-FR
ET-1080-LSM-24-VFW 15/75 Wall White None ET80-241575W-FW
ET-1080-MS-24-VFR 30 Wall Red None ET80-24MCW-FR
ET-1080-MS-24-VFW 30 Wall White None ET80-24MCW-FW
ET-1080-IS-24-VFR 75 Wall Red None ET80-24MCW-FR
ET-1080-IS-24-VFW 75 Wall White None ET80-24MCW-FW
ET-1080-SLM-24-VFR 15/75 Wall Red None ET80-241575W-FR
ET-1080-SLM-24-VFW 15/75 Wall White None ET80-241575W-FW
ET-1081-LS-24-VFR 15 Wall Red ET-1011-WS24 ET80-24MCW-FR
ET-1081-LSM-24-VFR 15/75 Wall Red ET80-241575W-FR
ET-1081-IS-24-VFR 75 Wall Red ET80-24MCW-FR

ET-1090 series

Model Number Candela Mounting Replaces Replaced by
ET-1090 N/A Ceiling None ET90
ET-1090-LS-24-CFW 15 Ceiling None ET90-2415C-FW
ET-1090-MS-24-CFW 30 Ceiling None ET90-2430C-FW
ET-1090-IS-24-CFW 75 Ceiling None ET90-2475C-FW

ET70 series

Model Number Candela Mounting Replaces Replaced by
ET70-R N/A Wall/Ceiling ET-1070 ELSPKR
ET70-W N/A Wall/Ceiling ELSPKW
ET70-N N/A Wall/Ceiling ELSPKW
ET70-2415W-FR 15 Wall ET-1070-LS-24-VFR ET70-24MCW-FR
ET70-241575W-FR 15/75 Wall ET-1070-LSM-24-VFR ET70-24MCW-FR
ET70-241575W-FW 15/75 Wall ET70-24MCW-FW
ET70-2430W-FR 30 Wall ET-1070-MS-24-VFR ET70-24MCW-FR
ET70-2475W-FR 75 Wall ET-1070-IS-24-VFR ET70-24MCW-FR
ET70-24110W-FR 110 Wall None ET70-24MCW-FR
ET70-24177W-FR 177 Wall None ET70-24MCWH-FR
ET70-24185W-FR 185 Wall None ET70-24MCWH-FR
ET70-24185W-FN 185 Wall None ET70-24MCWH-FN
ET70-24177C-FR 177 Ceiling None ET90-24MCCH-FR
ET70-24177C-FW 177 Ceiling None ET90-24MCCH-FW
ET70-24MCW-FR 15, 30, 75, 110 Wall ET70-2415W-FR
ET70-241575W-FR
ET70-2430W-FR
ET70-2475W-FR
ET70-24110W-FR 		ELSPSTR
ET70-24MCW-FW 15, 30, 75, 110 Wall ET70-241575W-FW ELSPSTW
ET70-24MCWH-FR 135, 185 Wall ET70-24177W-FR
ET70-24185W-FR 		ELSPSTR
ET70-24MCWH-FW 135, 185 Wall ET70-24MCWH-FN ELSPSTW
ET70-24MCWH-FN 135, 185 Wall ET70-24185W-FN ET70-24MCWH-FW

ET80 series

Model Number Candela Mounting Color Lettering Replaces Replaced by
ET80-241575W-FR[7] 15/75 Wall Red FIRE ET-1080-LSM-24-VFR
ET-1080-SLM-24-VFR
ET-1081-LSM-24-VFR 		ET80-24MCW-FR
ET80-241575W-FW 15/75 Wall White FIRE ET-1080-LSM-24-VFW
ET-1080-SLM-24-VFW 		ET80-24MCW-FW
ET80-24MCW-FR[13] 15, 30, 75, 110 Wall Red FIRE ET-1080-LS-24-VFR
ET-1080-MS-24-VFR
ET-1080-IS-24-VFR
ET-1081-LS-24-VFR
ET-1081-IS-24-VFR
ET80-241575W-FR 		EL3RSPST-FR
ET80-24MCW-FW 15, 30, 75, 110 Wall White FIRE ET80-241575W-FW EL3RSPST-FW
ET80-24MCWH-FR 135, 185 Wall Red FIRE None EL3RSPST-FR
ET80-24MCWH-FW 135, 185 Wall White FIRE None EL3RSPST-FW

ET90 series

Model Number Strobe color Candela Mounting Color Lettering Replaces Replaced by
ET90-W N/A N/A Wall/Ceiling White None ET-1090 ELSPKWC-N
ET90-R N/A N/A Wall/Ceiling Red None None ELSPKRC-N
ET90-N N/A N/A Wall/Ceiling Nickel None None ELSPKWC-N
ET90-2415C-FW White 15 Ceiling White FIRE ET-1090-LS-24-CFW ET90-24MCC-FW
ET90-2415C-FR White 15 Ceiling Red FIRE None ET90-24MCC-FR
ET90-2415C-FN White 15 Ceiling Nickel FIRE None ET90-24MCC-FN
ET90-2415C-NW White 15 Ceiling White None None ET90-24MCC-NW
ET90-2430C-FW White 30 Ceiling White FIRE ET-1090-MS-24-CFW ET90-24MCC-FW
ET90-2430C-FR White 30 Ceiling Red FIRE None ET90-24MCC-FR
ET90-2430C-FN White 30 Ceiling Nickel FIRE None ET90-24MCC-FN
ET90-2430C-NW White 30 Ceiling White None None ET90-24MCC-NW
ET90-2475C-FW White 75 Ceiling White FIRE ET-1090-IS-24-CFW ET90-24MCC-FW
ET90-2475C-FR White 75 Ceiling Red FIRE None ET90-24MCC-FR
ET90-2475C-FN White 75 Ceiling Nickel FIRE None ET90-24MCC-FN
ET90-2475C-NW White 75 Ceiling White None None ET90-24MCC-NW
ET90R-2475C-NW Red 75 Ceiling White None None ET90R-24MCC-NW
ET90-24100C-FW White 100 Ceiling White FIRE None ET90-24MCC-FW
ET90-24100C-FR White 100 Ceiling Red FIRE None ET90-24MCC-FR
ET90-24100C-FN White 100 Ceiling Nickel FIRE None ET90-24MCC-FN
ET90-24100C-NW White 100 Ceiling White None None ET90-24MCC-NW
ET90-24150C-FW White 150 Ceiling White FIRE None ET90-24MCCH-FW
ET90-24150C-FN White 150 Ceiling Nickel FIRE None ET90-24MCCH-FN
ET90-24177C-FW White 177 Ceiling White FIRE None ET90-24MCCH-FW
ET90-24177C-FN White 177 Ceiling Nickel FIRE None ET90-24MCCH-FN
ET90-24MCC-FW White 15, 30, 75, 95 Ceiling White FIRE ET90-2415C-FW
ET90-2430C-FW
ET90-2475C-FW
ET90-24100C-FW
ET90-24MCC-FN 		ELSPSTWC
ET90-24MCC-FR White 15, 30, 75, 95 Ceiling Red FIRE ET90-2415C-FR
ET90-2430C-FR
ET90-2475C-FR
ET90-24100C-FR 		ELSPSTRC
ET90-24MCC-FN White 15, 30, 75, 95 Ceiling Nickel FIRE ET90-2415C-FN
ET90-2430C-FN
ET90-2475C-FN
ET90-24100C-FN 		ET90-24MCC-FW
ET90-24MCC-NW White 15, 30, 75, 95 Ceiling White None ET90-2415C-NW
ET90-2430C-NW
ET90-2475C-NW
ET90-24100C-NW 		ELSPSTWC-N
ET90R-24MCC-NW Red Ceiling White None ET90R-2475C-NW
ET90-24MCCH-FW White 115, 177 Ceiling White FIRE ET70-24177C-FW
ET90-24150C-FW
ET90-24177C-FW
ET90-24MCCH-FN 		ELSPSTWC
ET90-24MCCH-FR White 115, 177 Ceiling Red FIRE ET70-24177C-FR ELSPSTRC
ET90-24MCCH-FN White 115, 177 Ceiling Nickel FIRE ET90-24150C-FN
ET90-24177C-FN 		ET90-24MCCH-FW

Rebrands

Cerberus Pyrotronics

Pyrotronics model Wheelock model Replaces Replaced by
SPK-1070[14] ET-1070

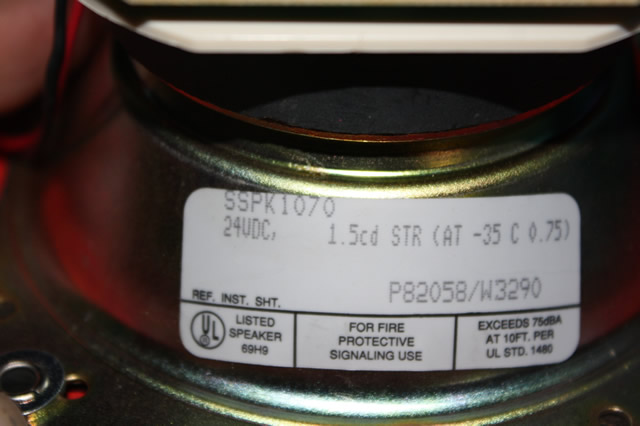

SSPK1070[15] ET-1070-WS-24
SSET70-15/75-R ET-1070-LSM-24-VFR

Gamewell

Gamewell model Wheelock model Replaces Replaced by
70414[16] ET-1010-R ET-1010-R
70415 ET-1080-R ET-1080-R
71755 ET70-R ET70-R
71756 ET70-W ET70-W
71757 ET90-W ET90-W
72043[17] ET70-24MCW-FR ET70-24MCW-FR
72044 ET70-24MCW-FW ET70-24MCW-FW
71606 ET-1080-IS-24-VFR ET80-24MCW-FR
71607 ET-1080-LS-24-VFR ET80-24MCW-FR
71608 ET-1080-LSM-24-VFR ET80-241575W-FR
71609 ET-1080-MS-24-VFR ET80-24MCW-FR
71438 ET-1080-SLM-24-VFR ET80-241575W-FR
71737 ET70-241575W-FR ET70-241575W-FR
71740 ET90-2415C-FW
71741 ET90-2430C-FW
71742 ET90-2475C-FW
71743 ET90-24100C-FW

Honeywell

Honeywell rebranded ET speakers for use with DeltaNet systems. Wheelock internally referred to Honeywell versions of products with a -HON suffix, but this was generally not visible to the public. Additionally, the Honeywell versions of the speakers used different DC blocking capacitors from the standard Wheelock versions, indicated by the Wheelock model numbers taking the form "ET-10x1" instead of "ET-10x0."

Honeywell model Wheelock model Replaced Replaced by
SC811B1013[18] ET-1011-WS24
SC811C1003 ET-1081-WM-24 SC811D-1027
SC811D-1027 ET-1081-LSM-24-VFR SC811C1003 XLS757-7A-RS25
XLS757-7A-RS70

Monaco

Monaco model Wheelock model Replaced Replaced by
124-069-00[19] ET-1010-W Still in production
580-055-01 ET70-24MCW-FW Still in production
580-063-00 ET70-24MCW-NW Still in production
580-065-00 ET70A-24MCW-NW Still in production
580-062-00 ET90-24MCC-NW Still in production

Siemens

Siemens started rebranding the ET series around 2007 as a result of the Wheelock, Inc., v. Siemens Building Technologies, Inc. lawsuit that required the Siemens Clear-Speak Plus series to be discontinued.

Siemens model Wheelock model Replaces Replaced by
SET-R[20] ET70-R S-HP
S-HPMG 		SL2SPWR-N[21]
SET-W ET70-W S-HP-W
S-HPMG-W 		SL2SPWW-N
SET-CW ET90-W S-HP-C SL2SPCW-N
SET-MC-R ET70-24MCW-FR S-HP-MCS
S-HPMG-MCS 		SL2SPSWR-F
SET-MC-W ET70-24MCW-FW S-HP-MCS-W
S-HPMG-MCS-W 		SL2SPSWW-F
SET-HMC-R ET70-24MCWH-FR None SL2SPSWR-F
SET-HMC-W ET70-24MCWH-FW None SL2SPSWW-F
SET-MC-CR ET90-24MCC-FR None SL2SPSCR-F
SET-MC-CW ET90-24MCC-FW S-HP-C-MCS SL2SPSCW-F
SET-HMC-CR ET90-24MCCH-FR None SL2SPSCR-F
SET-HMC-CW ET90-24MCCH-FW None SL2SPSCW-F
SETSF-VR[22] ET-1010-R S-HPMG-WP Still in production
SETSF-VW ET-1010-W None Still in production
SETFL-VR ET-1080-R None Still in production
SETFL-VW ET-1080-W None Still in production
SET-MC-VR ET80-24MCW-FR None None
SET-MC-VW ET80-24MCW-FW None None
SET-S17-R-WP ET70WP-2475W-FR S-HPMG-MCS-WP Still in production
SET-S17-W-WP ET70WP-2475W-FW None Still in production
SET-S17-CW-WP ET70WP-2475C-FW S-HPMG-MCS-WP Still in production
SET-177-CR-WP ET70WP-24177C-FR S-HPMG-MCS-WP Still in production
SET-177-CW-WP ET70WP-24177C-FW None Still in production
SET-185-R-WP ET70WP-24185W-FR S-HPMG-MCS-WP Still in production
SET-185-W-WP ET70WP-24185W-FW None Still in production
SET-CMC-R-MNS-ALERT[23] ET70-24MCW-ALR None SL2SPSWR-AL
SET-CMC-W-MNS-ALERT ET70-24MCW-ALW None SL2SPSWW-AL
SET-CMC-CR-MNS-ALERT ET90-24MCC-ALR None SL2SPSCR-AL
SET-CMC-CW-MNS-ALERT ET90-24MCC-ALW None SL2SPSCW-AL
SET-AMC-R-MNS-ALERT ET70A-24MCW-ALR None SL2SPSWR-ALA
SET-AMC-W-MNS-ALERT ET70A-24MCW-ALW None SL2SPSWW-ALA
SET-AMC-CR-MNS-ALERT ET90A-24MCC-ALR None SL2SPSCR-ALA
SET-AMC-CW-MNS-ALERT ET90A-24MCC-ALW None SL2SPSCW-ALA

References

  1. ↑ 1.0 1.1 https://www.freepatentsonline.com/D315112.html
  2. ↑ https://trademarks.justia.com/752/33/square-one-75233001.html
  3. ↑ https://nfpa.access.preservica.com/uncategorized/IO_fc6eeb17-a4c8-46a3-a2e7-c0f9b50a4d89/
  4. ↑ https://web.archive.org/web/20061108090040/http://www.cooperwheelock.com/literature/prod_repl_shed.pdf
  5. ↑ https://web.archive.org/web/20040218212834/http://www.wheelockinc.com/technical_support/installation/pdf/p82483e.pdf
  6. ↑ https://web.archive.org/web/20050308043429/http://www.wheelockinc.com/Specs/s-series/S0800.pdf
  7. ↑ 7.0 7.1 https://www.eaton.com/content/dam/eaton/products/safety-security-emergency-communications/lsmns/wheelock/product-discontinuation/wheelock-ps-amt-ch-e-et-hs4-mt-rss-product-discontinuation-notice.pdf
  8. ↑ https://d1dhn91mufybwl.cloudfront.net/downloads/pdfs/zh5y99crzp/zh5y99crzp.pdf?v=1716924585
  9. ↑ https://www.eaton.com/content/dam/eaton/products/safety-security-emergency-communications/lsmns/wheelock/product-discontinuation/Xenon%20Tube%20Cessation.pdf
  10. ↑ https://www.eaton.com/content/dam/eaton/products/safety-security-emergency-communications/lsmns/wheelock/e50-e60-e70-e90/wheelock-et70-et90-speakers-strobes-data-sheet-TD450031EN.pdf
  11. ↑ http://www.fazone.net/html/wheelock_et-1010-ws24.html
  12. ↑ https://web.archive.org/web/20060322120633/http://www.wheelockinc.com/literature/NotifNewsFeb04.pdf
  13. ↑ https://www.eaton.com/content/dam/eaton/products/safety-security-emergency-communications/lsmns/wheelock/et80-et1010/wheelock-et80-et1010-speakers-data-sheet-TD450030EN.pdf
  14. ↑ Page 90 of https://web.archive.org/web/20060515093442/http://wtc.nist.gov/pubs/NISTNCSTAR1-4CDraft.pdf
  15. ↑ http://listing.toomanyamps.com/cdrop/SIESSPK1070NNB-A.JPG
  16. ↑ https://web.archive.org/web/20030407111446/http://gamewell.com/pdf/datasheets/CS-2240.pdf
  17. ↑ https://web.archive.org/web/20030407174459/http://gamewell.com/pdf/datasheets/CS-2241.pdf
  18. ↑ https://fazone.net/html/honeywell_sc811b1013.html
  19. ↑ "Monaco Products Catalog". Monaco Enterprises (September 2024).
  20. ↑ https://mall.industry.siemens.com/mall/collaterals/files/155/pdf/ENG_667229.pdf
  21. ↑ https://cache.industry.siemens.com/dl/files/014/109823014/att_1149029/v2/A6V14140223.pdf
  22. ↑ https://mall.industry.siemens.com/mall/collaterals/files/150/PDF/ENG_451828.PDF
  23. ↑ https://cache.industry.siemens.com/dl/files/937/109788937/att_1045696/v2/A6V10333137.pdf
Retrieved from "https://wiki.thefirepanel.com/index.php?title=Wheelock_ET_series&oldid=3538"
