The Faraday 5500 series is a series of strobe signals.

Models

Light plates

Model Voltage Candela Replaced Replaced by
5501[1]

Horn strobes

Model Horn model Voltage Candela Strobe orientation Replaced Replaced by
5504 5940 Upward 5505
5505 6040[citation needed] Upward 6147[citation needed]
5506 6040[citation needed] Vertical 6147[citation needed]

Remote strobes

Model Voltage Candela Mounting Replaced Replaced by
5508B-N-14-12-DC[2] 12 VDC 15 Single gang
5508B-W-14-12-DC 12 VDC 15/75 Single gang
5508B-D-14-12-DC 12 VDC 75 Single gang
5508B-S-14-12-DC 12 VDC 110 Single gang
5521B-N-14-12-DC 12 VDC 15 4-inch flush
5521B-W-14-12-DC 12 VDC 15/75 4-inch flush
5521B-D-14-12-DC 12 VDC 75 4-inch flush
5521B-S-14-12-DC 12 VDC 110 4-inch flush
5522B-N-14-12-DC 12 VDC 15 4-inch surface
5522B-W-14-12-DC 12 VDC 15/75 4-inch surface
5522B-D-14-12-DC 12 VDC 75 4-inch surface
5522B-S-14-12-DC 12 VDC 110 4-inch surface
5508B-N-14-24-DC 24 VDC 15 Single gang 2700B-E-14-24-DC
5508B-W-14-24-DC 24 VDC 15/75 Single gang 2700B-E-14-24-DC
5508B-D-14-24-DC 24 VDC 75 Single gang 2700B-K-14-24-DC
5508B-S-14-24-DC 24 VDC 110 Single gang 2700B-L-14-24-DC
5521B-N-14-24-DC 24 VDC 15 4-inch flush 2700B-E-14-24-DC
5521B-W-14-24-DC 24 VDC 15/75 4-inch flush 2700B-E-14-24-DC
5521B-D-14-24-DC 24 VDC 75 4-inch flush 2700B-K-14-24-DC
5521B-S-14-24-DC 24 VDC 110 4-inch flush 2700B-L-14-24-DC
5522L-U-14-24-DC 24 VDC 120 4-inch surface 5522B-W-14-24-DC
5522B-S-14-24-DC
5522B-N-14-24-DC 24 VDC 15 4-inch surface 2700B-E-14-24-DC
5522B-W-14-24-DC 24 VDC 15/75 4-inch surface 5522L-U-14-24-DC 2700B-E-14-24-DC
5522B-D-14-24-DC 24 VDC 75 4-inch surface 2700B-K-14-24-DC
5522B-S-14-24-DC 24 VDC 110 4-inch surface 5522L-U-14-24-DC 2700B-L-14-24-DC
2705B-L-14-24-DC
5522-B[3] 20-31 VDC 15/75 4-inch surface 2700B-M-14-24-DC
5522-C[4] 20-31 VDC 75 4-inch surface 2700B-Y-14-24-DC
5508B-N-14-120-60 120 VAC 15 Single gang
5508B-W-14-120-60 120 VAC 15/75 Single gang
5508B-D-14-120-60 120 VAC 75 Single gang
5508B-S-14-120-60 120 VAC 110 Single gang
5521B-N-14-120-60 120 VAC 15 4-inch flush
5521B-W-14-120-60 120 VAC 15/75 4-inch flush
5521B-D-14-120-60 120 VAC 75 4-inch flush
5521B-S-14-120-60 120 VAC 110 4-inch flush
5522B-N-14-120-60 120 VAC 15 4-inch surface
5522B-W-14-120-60 120 VAC 15/75 4-inch surface
5522B-D-14-120-60 120 VAC 75 4-inch surface
5522B-S-14-120-60 120 VAC 110 4-inch surface

Strobe plates

Model Voltage Candela Orientation Replaced Replaced by
5510B-N-14-12-DC 12 VDC 15 Horizontal
5510B-W-14-12-DC 12 VDC 15/75 Horizontal
5510B-D-14-12-DC 12 VDC 75 Horizontal
5510B-S-14-12-DC 12 VDC 110 Horizontal
5510B-N-14-24-DC 24 VDC 15 Horizontal 2701B-E-14-24-DC
5510B-W-14-24-DC 24 VDC 15/75 Horizontal 2701B-E-14-24-DC
5510B-D-14-24-DC 24 VDC 75 Horizontal 2701B-K-14-24-DC
5510B-S-14-24-DC 24 VDC 110 Horizontal 2701B-L-14-24-DC
5510B-N-14-120-60 120 VAC 15 Horizontal
5510B-W-14-120-60 120 VAC 15/75 Horizontal
5510B-D-14-120-60 120 VAC 75 Horizontal
5510B-S-14-120-60 120 VAC 110 Horizontal
5519B-N-14-12-DC 12 VDC 15 Vertical
5519B-W-14-12-DC 12 VDC 15/75 Vertical
5519B-D-14-12-DC 12 VDC 75 Vertical
5519B-S-14-12-DC 12 VDC 110 Vertical
5519B-N-14-24-DC 24 VDC 15 Vertical 2701B-E-14-24-DC
5519B-W-14-24-DC 24 VDC 15/75 Vertical 2701B-E-14-24-DC
5519B-D-14-24-DC 24 VDC 75 Vertical 2701B-K-14-24-DC
5519B-S-14-24-DC 24 VDC 110 Vertical 2701B-L-14-24-DC
5519B-N-14-120-60 120 VAC 15 Vertical
5519B-W-14-120-60 120 VAC 15/75 Vertical
5519B-D-14-120-60 120 VAC 75 Vertical
5519B-S-14-120-60 120 VAC 110 Vertical

Signal covers

Model Voltage Candela Mounting Signal type Replaced Replaced by
5511 Flush Electromechanical None
5512 Surface Electromechanical None
5512-W[5] 21-32 VDC 15/75 Surface Electromechanical
5515B-H-14-120-60 120 VAC 15 Surface Electromechanical
5516[6] 21-30 VDC 15 Flush Electronic
5518 21-30 VDC 4.5 Ceiling Electromechanical/electronic

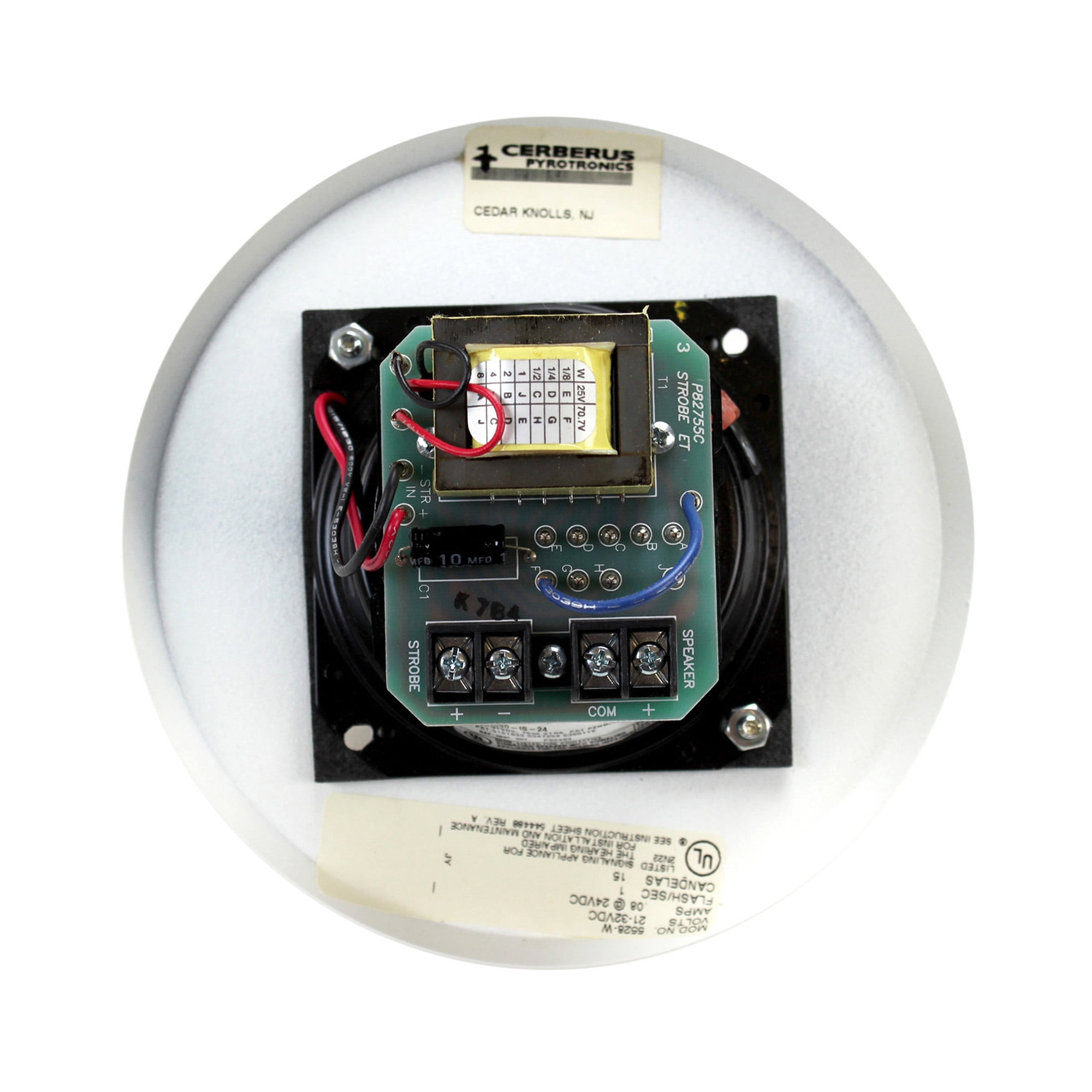

5528-W[7] 21-32 VDC 15/75 Ceiling Electromechanical/electronic

Rebrands

Fire Control Instruments

FCI model Faraday model Replaced Replaced by
STW/4F[8] 5521B-W-14-24-DC S241575-FC
BC/STW (R)[9] 5519B-W-14-24-DC
BC/STW (W)
B/STW (R) 5510B-W-14-24-DC
B/STW (W)
BC/STS (R) 5519B-S-14-24-DC
BC/STS (W)
BC/VSTB (R)
BC/VSTB (W)
BC/HSTB (R)
BC/HSTB (W)

National Time & Signal

National Time model Faraday model Replaced Replaced by
WSF-W[10] 5521B-W-14-24-DC

Pyrotronics

Pyrotronics rebranded the 5500 series strobes and strobe plates as part of the F-Series. The signal covers were also present as part of the rebranded combination strobes.
