The Pyrotronics F-Series is a series of notification appliances.

History

The F-Series was released in February 1996 with rebranded Faraday products after Pyrotronics acquired Faraday. Some of the earliest members of this series were the SH, SL, MC, MT, S15/S17/S75/S110, HN/HNH, EC/EH/EW, and TTH.[1]

In September 1996, the SM series speakers were released.[2] These were given more standard power taps compared to the SH and SL series, allowing them to more directly replace the rebranded E-series speakers. The MTL horns were also released at this time as an alternative to the F-Series MT with a lower current horn, allowing the horn to more directly replace the older rebranded Wheelock MT horns.[3]

In December 1996, the S15S/S17S/S75S series of synchronizable strobes was released to replace the old S15/75S strobes.[4] The SCM-F synchronization module was also released at this time.

In June 1997, the MH, MHT, MHST, and MMT were released as a Pyrotronics-branded version of the Faraday 6300 series.[5][6][7] The MH served as a replacement for the older HM series.

In 1998, all F-Series devices except the SCM-F were discontinued due to the release of successors in the U series and I series.[8] The SCM-F was discontinued by May 2000.[9]

Models

Strobes

Pyrotronics model Faraday model Synchronization Candela Wiring Type Mounting Color Replaces Replaced By
S15-FS 5508B-N-14-24-DC Free-run 15 Wire nut Single gang Red S15-SGL[10] U-S17
S15-FSW 5508B-N-14-24-DC Free-run 15 Wire nut Single gang White None U-S17-W
S15-F 5521B-N-15-24-DC Free-run 15 Wire nut 4-inch flush Red None U-S17
S15-FW 5521B-N-15-24-DC Free-run 15 Wire nut 4-inch flush White None U-S17-W
S15-FT 5521B-N-14-24-DC Free-run 15 Terminal strip 4-inch flush Red S15-STD U-S17
S15-FTW 5521B-N-14-24-DC Free-run 15 Terminal strip 4-inch flush White None U-S17-W
S15-S 5522B-N-15-24-DC Free-run 15 Wire nut 4-inch surface Red None U-S17
U-S17-1
S15-SW 5522B-N-15-24-DC Free-run 15 Wire nut 4-inch surface White None U-S17-W
S15-ST 5522B-N-14-24-DC Free-run 15 Terminal strip 4-inch surface Red S15-SUR U-S17
U-S17-1
S15-STW 5522B-N-14-24-DC Free-run 15 Terminal strip 4-inch surface White None U-S17-W
S17-FS 5508B-W-14-24-DC Free-run 15/75 Wire nut Single gang Red S15/75-SGL U-S17
S17-FSW 5508B-W-14-24-DC Free-run 15/75 Wire nut Single gang White None U-S17-W
S17-F 5521B-W-15-24-DC Free-run 15/75 Wire nut 4-inch flush Red None U-S17
S17-FW 5521B-W-15-24-DC[11] Free-run 15/75 Wire nut 4-inch flush White None U-S17-W
S17-FT 5521B-W-14-24-DC Free-run 15/75 Terminal strip 4-inch flush Red S15/75-STD U-S17
S17-FTW 5521B-W-14-24-DC Free-run 15/75 Terminal strip 4-inch flush White None U-S17-W
S17-S 5522B-W-15-24-DC Free-run 15/75 Wire nut 4-inch surface Red None U-S17
U-S17-1
S17-SW 5522B-W-15-24-DC Free-run 15/75 Wire nut 4-inch surface White None U-S17-W
S17-ST 5522B-W-14-24-DC Free-run 15/75 Terminal strip 4-inch surface Red S15/75-SUR U-S17
U-S17-1
S17-STW 5522B-W-14-24-DC Free-run 15/75 Terminal strip 4-inch surface White None U-S17-W
S75-FS 5508B-D-14-24-DC Free-run 75 Wire nut Single gang Red S75-SGL U-S75
S75-FSW 5508B-D-14-24-DC Free-run 75 Wire nut Single gang White None U-S75-W
S75-F 5521B-D-15-24-DC Free-run 75 Wire nut 4-inch flush Red None U-S75
S75-FW 5521B-D-15-24-DC Free-run 75 Wire nut 4-inch flush White None U-S75-W
S75-FT 5521B-D-14-24-DC Free-run 75 Terminal strip 4-inch flush Red S75-STD U-S75
S75-FTW 5521B-D-14-24-DC Free-run 75 Terminal strip 4-inch flush White None U-S75-W
S75-S 5522B-D-15-24-DC Free-run 75 Wire nut 4-inch surface Red None U-S75
S75-SW 5522B-D-15-24-DC Free-run 75 Wire nut 4-inch surface White None U-S75-W
S75-ST 5522B-D-14-24-DC Free-run 75 Terminal strip 4-inch surface Red S75-SUR U-S75
S75-STW 5522B-D-14-24-DC Free-run 75 Terminal strip 4-inch surface White None U-S75-W
S110-FS 5508B-S-14-24-DC Free-run 110 Wire nut Single gang Red S110-SGL U-S110
S110-FSW 5508B-S-14-24-DC Free-run 110 Wire nut Single gang White None U-S110-W
S110-F 5521B-S-15-24-DC Free-run 110 Wire nut 4-inch flush Red None U-S110
S110-FW 5521B-S-15-24-DC Free-run 110 Wire nut 4-inch flush White None U-S110-W
S110-FT 5521B-S-14-24-DC Free-run 110 Terminal strip 4-inch flush Red S110-STD U-S110
S110-FTW 5521B-S-14-24-DC Free-run 110 Terminal strip 4-inch flush White None U-S110-W
S110-S 5522B-S-15-24-DC Free-run 110 Wire nut 4-inch surface Red None U-S110
U-S110-1
S110-SW 5522B-S-15-24-DC Free-run 110 Wire nut 4-inch surface White None U-S110-W
S110-ST 5522B-S-14-24-DC Free-run 110 Terminal strip 4-inch surface Red S110-SUR U-S110
U-S110-1
S110-STW 5522B-S-14-24-DC Free-run 110 Terminal strip 4-inch surface White None U-S110-W
S15S-FS 5508B-A-14-24-DC Synchronized 15 Wire nut Single gang Red S15S-SGL U-S17S
U-S17S-1
S15S-FSW 5508B-A-14-24-DC Synchronized 15 Wire nut Single gang White S15S-SGL U-S17S-W
U-S17S-1-W
S15S-F 5521B-A-15-24-DC Synchronized 15 Wire nut 4-inch flush Red None U-S17S
U-S17S-1
S15S-FW 5521B-A-15-24-DC Synchronized 15 Wire nut 4-inch flush White None U-S17S-W
U-S17S-1-W
S15S-FT 5521B-A-14-24-DC Synchronized 15 Terminal strip 4-inch flush Red S15S-STD U-S17S
U-S17S-1
S15S-FTW 5521B-A-14-24-DC Synchronized 15 Terminal strip 4-inch flush White S15S-STD U-S17S-W
U-S17S-1-W
S15S-S 5522B-A-15-24-DC Synchronized 15 Wire nut 4-inch surface Red None U-S17S
U-S17S-1
S15S-SW 5522B-A-15-24-DC Synchronized 15 Wire nut 4-inch surface White None U-S17S-W
U-S17S-1-W
S15S-ST 5522B-A-14-24-DC Synchronized 15 Terminal strip 4-inch surface Red S15S-SUR U-S17S
U-S17S-1
S15S-STW 5522B-A-14-24-DC Synchronized 15 Terminal strip 4-inch surface White S15S-SUR U-S17S-W
U-S17S-1-W
S17S-FS 5508B-B-14-24-DC Synchronized 15/75 Wire nut Single gang Red S15/75S-SGL U-S17S
U-S17S-1
S17S-FSW 5508B-B-14-24-DC Synchronized 15/75 Wire nut Single gang White S15/75S-SGL U-S17S-W
U-S17S-1-W
S17S-F 5521B-B-15-24-DC Synchronized 15/75 Wire nut 4-inch flush Red None U-S17S
U-S17S-1
S17S-FW 5521B-B-15-24-DC Synchronized 15/75 Wire nut 4-inch flush White None U-S17S-W
U-S17S-1-W
S17S-FT 5521B-B-14-24-DC Synchronized 15/75 Terminal strip 4-inch flush Red S15/75S-STD U-S17S
U-S17S-1
S17S-FTW 5521B-B-14-24-DC Synchronized 15/75 Terminal strip 4-inch flush White S15/75S-STD U-S17S-W
U-S17S-1-W
S17S-S 5522B-B-15-24-DC Synchronized 15/75 Wire nut 4-inch surface Red None U-S17S
U-S17S-1
S17S-S 5522B-B-15-24-DC Synchronized 15/75 Wire nut 4-inch surface White None U-S17S-W
U-S17S-1-W
S17S-ST 5522B-B-14-24-DC Synchronized 15/75 Terminal strip 4-inch surface Red S15/75S-SUR U-S17S
U-S17S-1
S17S-STW 5522B-B-14-24-DC Synchronized 15/75 Terminal strip 4-inch surface White S15/75S-SUR U-S17S-W
U-S17S-1-W
S75S-FS 5508B-C-14-24-DC Synchronized 75 Wire nut Single gang Red None U-S75S
S75S-FSW 5508B-C-14-24-DC Synchronized 75 Wire nut Single gang White None U-S75S-W
S75S-F 5521B-C-15-24-DC Synchronized 75 Wire nut 4-inch flush Red None U-S75S
S75S-FW 5521B-C-15-24-DC Synchronized 75 Wire nut 4-inch flush White None U-S75S-W
S75S-FT 5521B-C-14-24-DC Synchronized 75 Terminal strip 4-inch flush Red None U-S75S
S75S-FTW 5521B-C-14-24-DC Synchronized 75 Terminal strip 4-inch flush White None U-S75S-W
S75S-S 5522B-C-15-24-DC Synchronized 75 Wire nut 4-inch surface Red None U-S75S
S75S-SW 5522B-C-15-24-DC Synchronized 75 Wire nut 4-inch surface White None U-S75S-W
S75S-ST 5522B-C-14-24-DC Synchronized 75 Terminal strip 4-inch surface Red None U-S75S
S75S-STW 5522B-C-14-24-DC Synchronized 75 Terminal strip 4-inch surface White None U-S75S-W

Strobe plates

Pyrotronics model Faraday model Synchronization Candela Orientation Replaces Replaced By
S15-6060H[12] 5510B-N-14-24-DC Free-run 15 Horizontal S15-RET U-S17-6090V
S15-6090V 5519B-N-14-24-DC Free-run 15 Vertical None U-S17-6090V
S17-6060H 5510B-W-14-24-DC Free-run 15/75 Horizontal None U-S17-6090V
S17-6090V 5519B-W-14-24-DC Free-run 15/75 Vertical S15/75-RET U-S17-6090V
S75-6060H 5510B-D-14-24-DC Free-run 75 Horizontal None U-S75-6090V
S75-6090V 5519B-D-14-24-DC Free-run 75 Vertical S75-RET U-S75-6090V
S110-6060H 5510B-S-14-24-DC Free-run 110 Horizontal S110-RET U-S110-6090V
S110-6090V 5519B-S-14-24-DC Free-run 110 Vertical None U-S110-6090V
S15S-6060H 5510B-A-14-24-DC Synchronized 15 Horizontal None U-S17S-6090V
S15S-6090V 5519B-A-14-24-DC Synchronized 15 Vertical None U-S17S-6090V
S17S-6060H 5510B-B-14-24-DC Synchronized 15/75 Horizontal None U-S17S-6090V
S17S-6090V 5519B-B-14-24-DC Synchronized 15/75 Vertical None U-S17S-6090V
S75S-6060H 5510B-C-14-24-DC Synchronized 75 Horizontal None U-S75S-6090V
S75S-6090V 5519B-C-14-24-DC Synchronized 75 Vertical None U-S75S-6090V

Mechanical horns

Pyrotronics model Faraday model Decibel Output Candela Mounting Replaced By
HN-F 6223 96 N/A Flush U-HN
HN-S 6224 96 N/A Surface U-HN
HN-C 6225 96 N/A Ceiling U-HN-C
HN-S15-F 6226-N 96 15 Flush U-HN-S17
HN-S15-S 6227-N 96 15 Surface U-HN-S17
U-HN-S17-1
HN-S15-C 6228-N 96 15 Ceiling U-HN-S17-C
HN-S17-F 6226-W[13] 96 15/75 Flush U-HN-S17
HN-S17-S 6227-W 96 15/75 Surface U-HN-S17
U-HN-S17-1
HN-S17-C 6228-W 96 15/75 Ceiling U-HN-S17-C
HN-S75-F 6226-D 96 75 Flush U-HN-S75
HN-S75-S 6227-D 96 75 Surface U-HN-S75
HN-S110-F 6226-S 96 110 Flush U-HN-S110
HN-S110-S 6227-S 96 110 Surface U-HN-S110
U-HN-S110-1
HNH-F 6243 100 N/A Flush U-HNH
HNH-S 6244 100 N/A Surface U-HNH
HNH-C 6245 100 N/A Ceiling U-HNH-C
HNH-S15-F 6246-N 100 15 Flush U-HNH-S17
HNH-S15-S 6247-N 100 15 Surface U-HNH-S17
U-HNH-S17-1
HNH-S15-C 6248-N 100 15 Ceiling U-HNH-S17-C
HNH-S17-F 6246-W 100 15/75 Flush U-HNH-S17
HNH-S17-S 6247-W 100 15/75 Surface U-HNH-S17
U-HNH-S17-1
HNH-S17-C 6248-W 100 15/75 Ceiling U-HNH-S17-C
HNH-S75-F 6246-D 100 75 Flush U-HNH-S75
HNH-S75-S 6247-D 100 75 Surface U-HNH-S75
HNH-S110-F 6246-S 100 110 Flush U-HNH-S110
HNH-S110-S 6247-S 100 110 Surface U-HNH-S110
U-HNH-S110-1

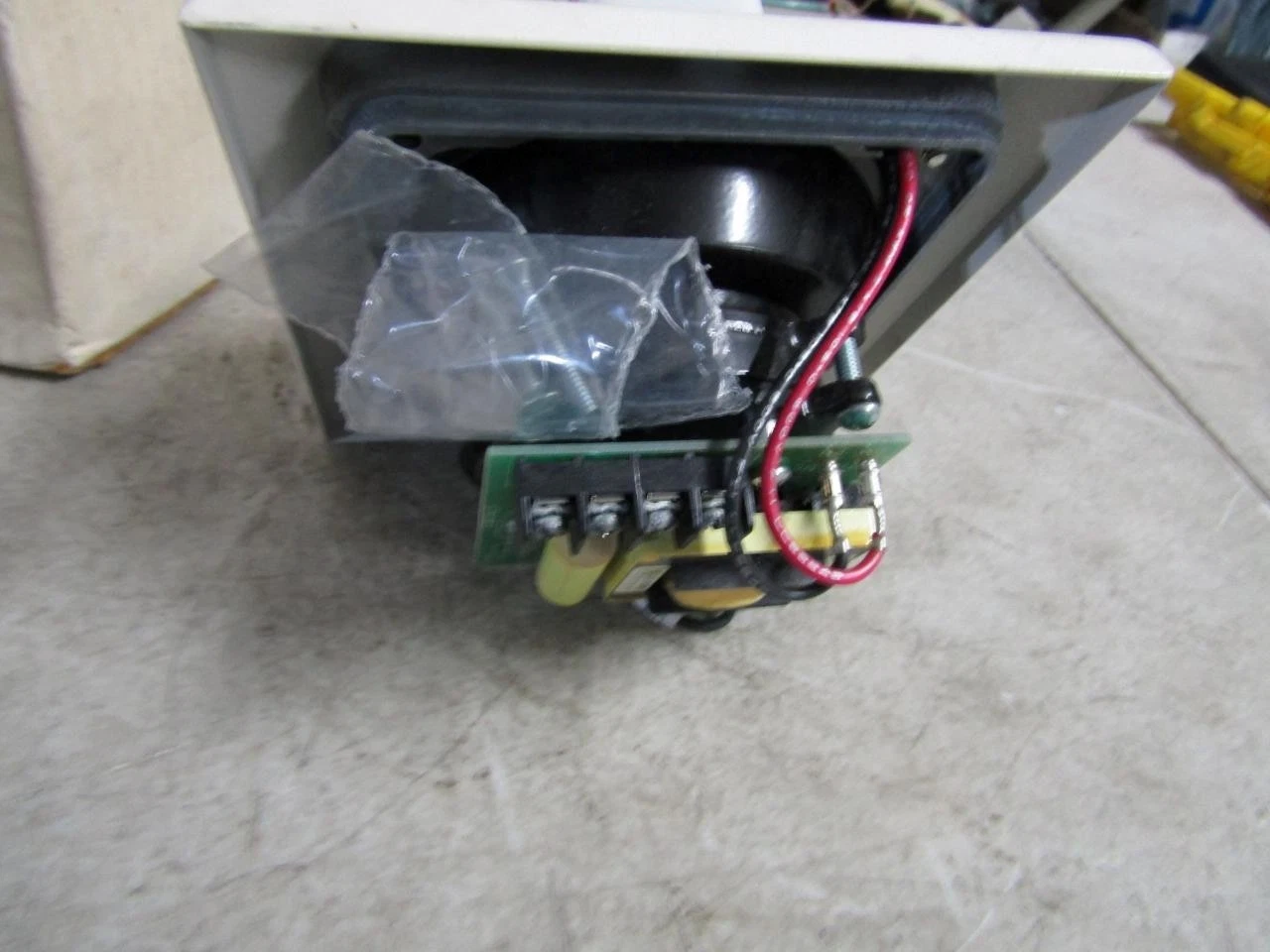

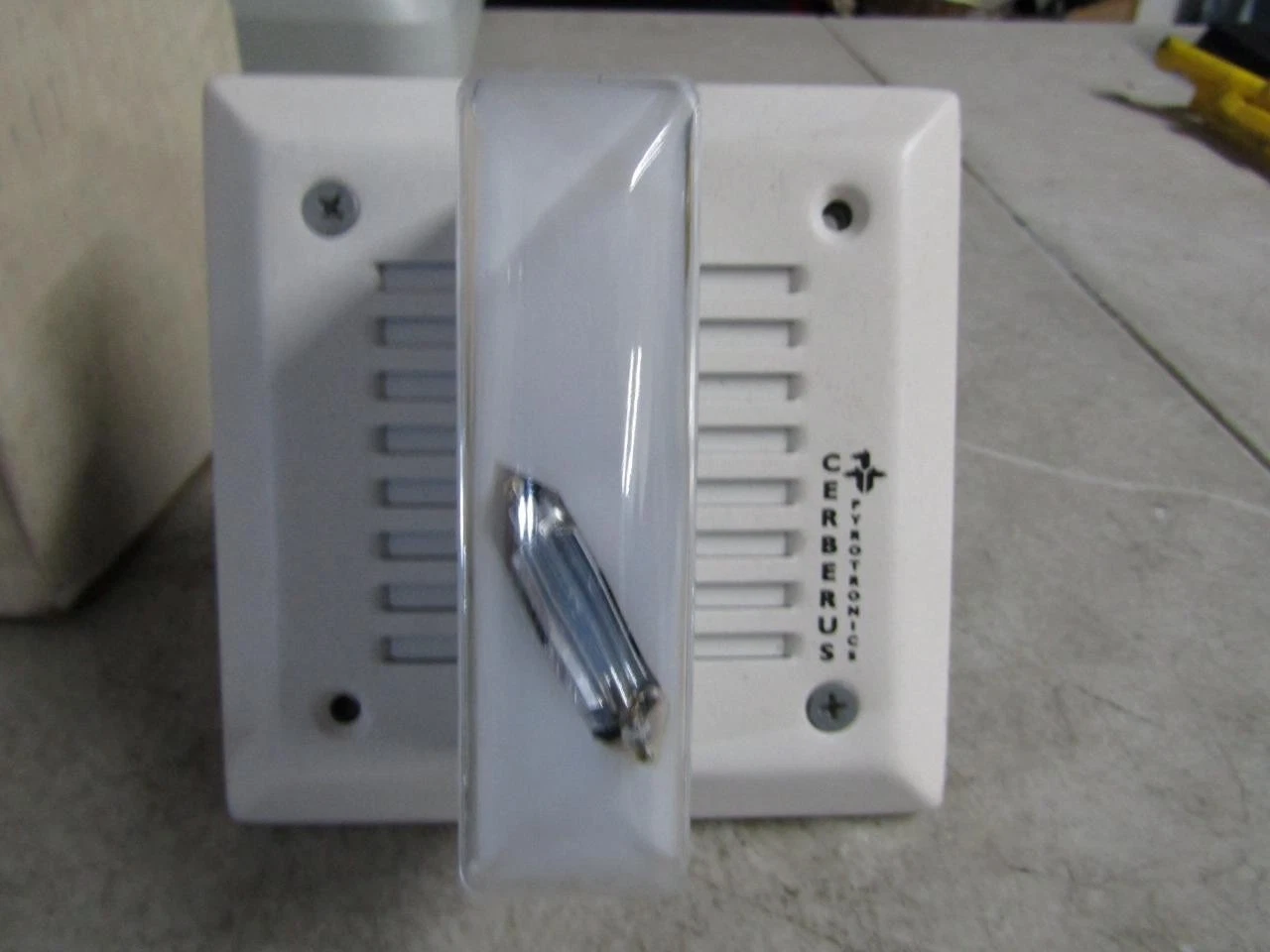

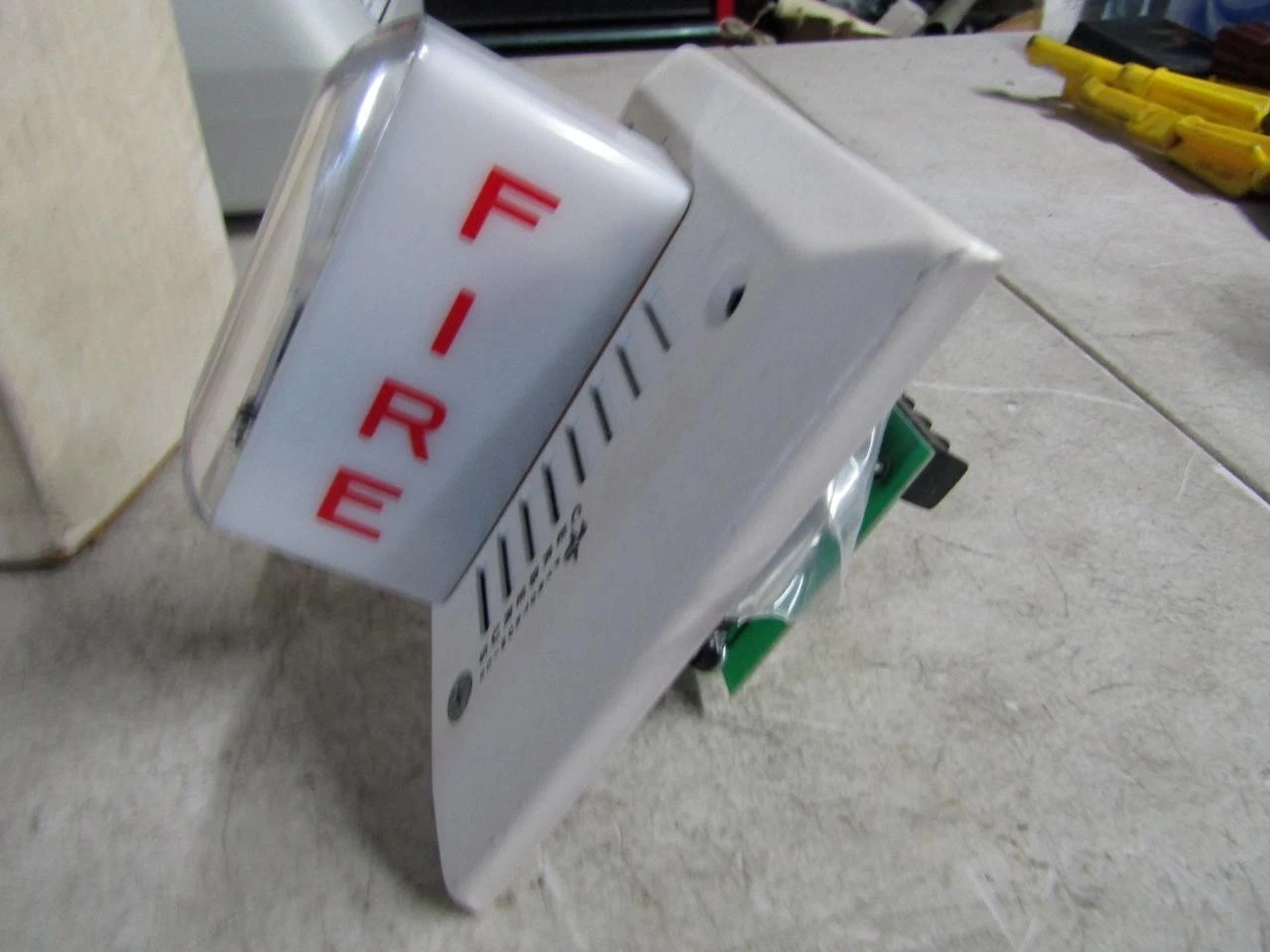

SH series (.33, .66, 1.25, 2.5W)

Pyrotronics model Faraday model Voltage Candela Synchronization Mounting Replaced By
SH25-F [14] 2603-0-14-25V 25VRMS N/A Free Run Flush I-SH25[15]
SH25-S 2604-0-14-25V[16] 25VRMS N/A Free Run Surface I-SH25
SH25-C 2605-0-14-25V 25VRMS N/A Free Run Ceiling I-SH25-C
SH25-S15-F 2606-N-14-25V 25VRMS 15 Free Run Flush I-SH25-S17
SH25-S15-S 2607-N-14-25V[17] 25VRMS 15 Free Run Surface I-SH25-S17
SH25-S15-C 2608-N-14-25V 25VRMS 15 Free Run Ceiling I-SH25-S17-C
SH25-S17-F 2606-W-14-25V 25VRMS 15/75 Free Run Flush I-SH25-S17
SH25-S17-S 2607-W-14-25V 25VRMS 15/75 Free Run Surface I-SH25-S17
SH25-S17-C 2608-W-14-25V 25VRMS 15/75 Free Run Ceiling I-SH25-S17-C
SH25-S75-F 2606-D-14-25V 25VRMS 75 Free Run Flush I-SH25-S75
SH25-S75-S 2607-D-14-25V 25VRMS 75 Free Run Surface I-SH25-S75

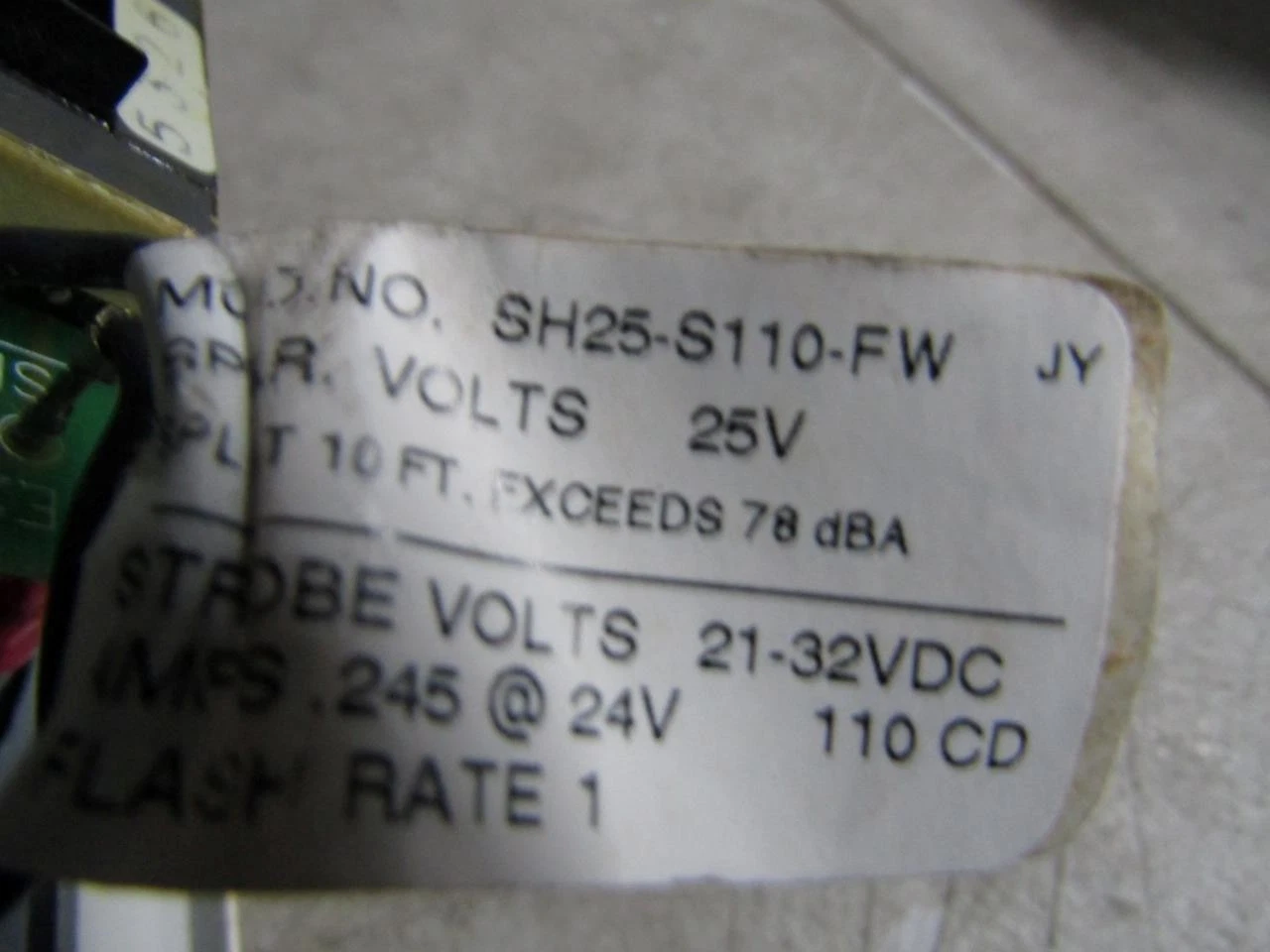

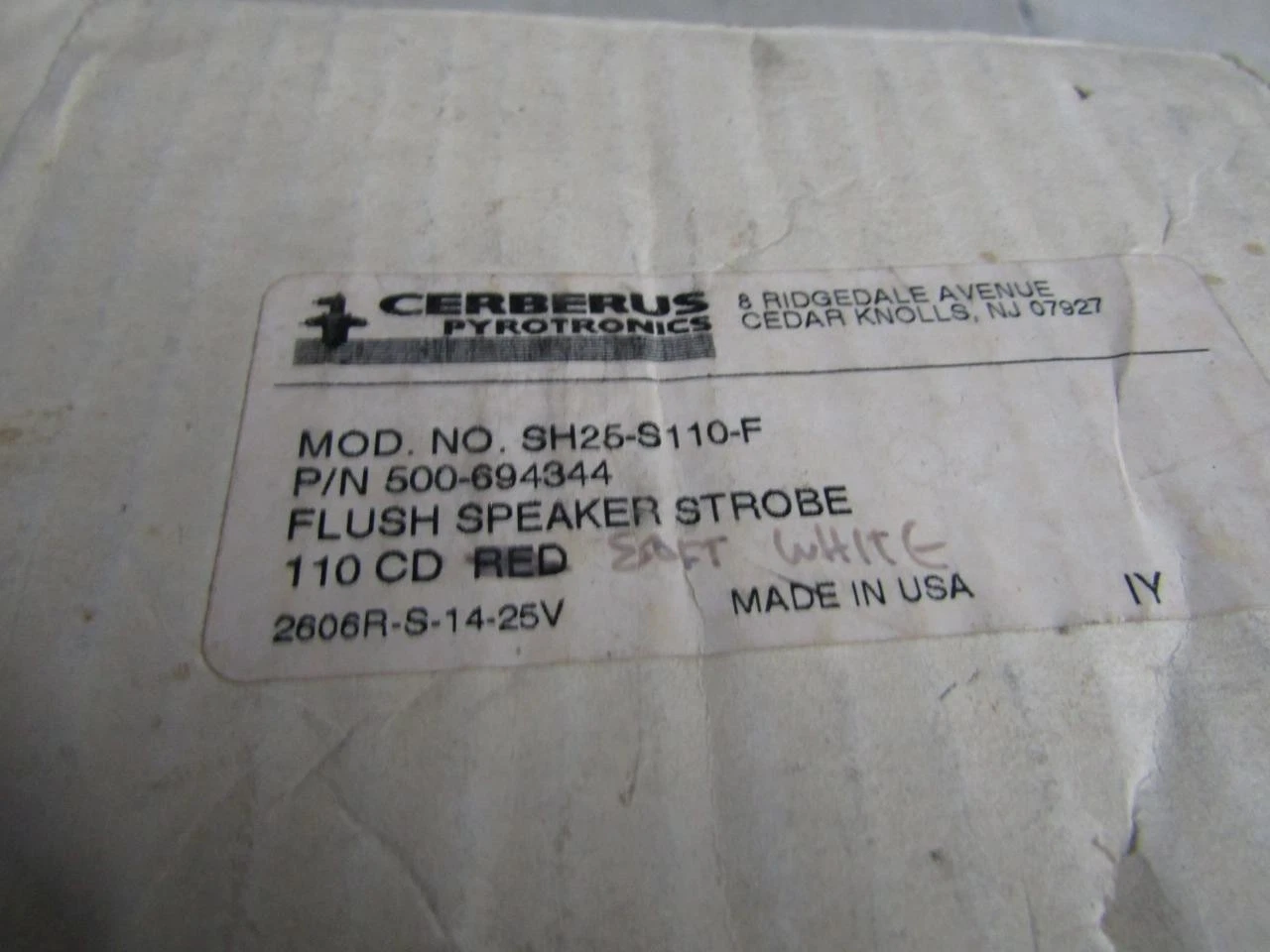

SH25-S110-F[18][19][20][21][22] 2606-S-14-25V 25VRMS 110 Free Run Flush I-SH25-S110
SH25-S110-S 2607-S-14-25V 25VRMS 110 Free Run Surface I-SH25-S110
SH70-F 2603-0-14-70V 70VRMS N/A Free Run Flush I-SH70
SH70-S 2604-0-14-70V 70VRMS N/A Free Run Surface I-SH70
SH70-C 2605-0-14-70V 70VRMS N/A Free Run Ceiling I-SH70-C
SH70-S15-F 2606-N-14-70V 70VRMS 15 Free Run Flush I-SH70-S17
SH70-S15-S 2607-N-14-70V 70VRMS 15 Free Run Surface I-SH70-S17
SH70-S15-C 2608-N-14-70V 70VRMS 15 Free Run Ceiling I-SH70-S17-C
SH70-S17-F 2606-W-14-70V 70VRMS 15/75 Free Run Flush I-SH70-S17
SH70-S17-S 2607-W-14-70V 70VRMS 15/75 Free Run Surface I-SH70-S17
SH70-S17-C 2608-W-14-70V 70VRMS 15/75 Free Run Ceiling I-SH70-S17-C
SH70-S75-F 2606-D-14-70V 70VRMS 75 Free Run Flush I-SH70-S75
SH70-S75-S 2607-D-14-70V 70VRMS 75 Free Run Surface I-SH70-S75
SH70-S110-F 2606-S-14-70V 70VRMS 110 Free Run Flush I-SH70-S110
SH70-S110-S 2607-S-14-70V 70VRMS 110 Free Run Surface I-SH70-S110
SH25-S15S-F 2606-A-14-25V 25VRMS 15 Synchronized Flush I-SH25-S17S
SH25-S15S-S 2607-A-14-25V[17] 25VRMS 15 Synchronized Surface I-SH25-S17S
SH25-S15S-C 2608-A-14-25V 25VRMS 15 Synchronized Ceiling I-SH25-S17S-C
SH25-S17S-F 2606-B-14-25V 25VRMS 15/75 Synchronized Flush I-SH25-S17S
SH25-S17S-S 2607-B-14-25V 25VRMS 15/75 Synchronized Surface I-SH25-S17S
SH25-S17S-C 2608-B-14-25V 25VRMS 15/75 Synchronized Ceiling I-SH25-S17S-C
SH25-S75S-F 2606-C-14-25V 25VRMS 75 Synchronized Flush I-SH25-S75S
SH25-S75S-S 2607-C-14-25V 25VRMS 75 Synchronized Surface I-SH25-S75S
SH70-S15S-F 2606-A-14-70V 70VRMS 15 Synchronized Flush I-SH70-S17S
SH70-S15S-S 2607-A-14-70V 70VRMS 15 Synchronized Surface I-SH70-S17S
SH70-S15S-C 2608-A-14-70V 70VRMS 15 Synchronized Ceiling I-SH70-S17S-C
SH70-S17S-F 2606-B-14-70V 70VRMS 15/75 Synchronized Flush I-SH70-S17S
SH70-S17S-S 2607-B-14-70V 70VRMS 15/75 Synchronized Surface I-SH70-S17S
SH70-S17S-C 2608-B-14-70V 70VRMS 15/75 Synchronized Ceiling I-SH70-S17S-C
SH70-S75S-F 2606-C-14-70V 70VRMS 75 Synchronized Flush I-SH70-S75S
SH70-S75S-S 2607-C-14-70V 70VRMS 75 Synchronized Surface I-SH70-S75S

SL series (.5, 1, 1.75W for both 25VRMS/70VRMS Speakers, 2.75W for 25VRMS Speakers, 3.5W for 70VRMS Speakers)

Pyrotronics Model Number Faraday Model Number Voltage Candela Synchronization Mounting Replaced By
SL25-F [23] 2613-0-14-25V 25VRMS N/A Free Run Flush I-SM25[24]
SL25-S 2614-0-14-25V 25VRMS N/A Free Run Surface I-SM25
SL25-C 2615-0-14-25V 25VRMS N/A Free Run Ceiling I-SM25-C
SL25-S15-F 2616-N-14-25V 25VRMS 15 Free Run Flush I-SM25-S17
SL25-S15-S 2617-N-14-25V 25VRMS 15 Free Run Surface I-SM25-S17
SL25-S15-C 2618-N-14-25V 25VRMS 15 Free Run Ceiling I-SM25-S17-C
SL25-S17-F 2616-W-14-25V 25VRMS 15/75 Free Run Flush I-SM25-S17
SL25-S17-S 2617-W-14-25V 25VRMS 15/75 Free Run Surface I-SM25-S17
SL25-S17-C 2618-W-14-25V 25VRMS 15/75 Free Run Ceiling I-SM25-S17-C
SL25-S75-F 2616-D-14-25V 25VRMS 75 Free Run Flush I-SM25-S75
SL25-S75-S 2617-D-14-25V 25VRMS 75 Free Run Surface I-SM25-S75
SL25-S110-F 2616-S-14-25V 25VRMS 110 Free Run Flush I-SM25-S110
SL25-S110-S 2617-S-14-25V 25VRMS 110 Free Run Surface I-SM25-S110
SL70-F 2613-0-14-70V 70VRMS N/A Free Run Flush I-SM70
SL70-S 2614-0-14-70V 70VRMS N/A Free Run Surface I-SM70
SL70-C 2615-0-14-70V 70VRMS N/A Free Run Ceiling I-SM70-C
SL70-S15-F 2616-N-14-70V 70VRMS 15 Free Run Flush I-SM70-S17
SL70-S15-S 2617-N-14-70V 70VRMS 15 Free Run Surface I-SM70-S17
SL70-S15-C 2618-N-14-70V 70VRMS 15 Free Run Ceiling I-SM70-S17-C
SL70-S17-F 2616-W-14-70V 70VRMS 15/75 Free Run Flush I-SM70-S17
SL70-S17-S 2617-W-14-70V 70VRMS 15/75 Free Run Surface I-SM70-S17
SL70-S17-C 2618-W-14-70V 70VRMS 15/75 Free Run Ceiling I-SM70-S17-C
SL70-S75-F 2616-D-14-70V 70VRMS 75 Free Run Flush I-SM70-S75
SL70-S75-S 2617-D-14-70V 70VRMS 75 Free Run Surface I-SM70-S75
SL70-S110-F 2616-S-14-70V 70VRMS 110 Free Run Flush I-SM70-S110
SL70-S110-S 2617-S-14-70V 70VRMS 110 Free Run Surface I-SM70-S110
SL25-S15S-F 2616-A-14-25V 25VRMS 15 Synchronized Flush I-SM25-S17S
SL25-S15S-S 2617-A-14-25V 25VRMS 15 Synchronized Surface I-SM25-S17S
SL25-S15S-C 2618-A-14-25V 25VRMS 15 Synchronized Ceiling I-SM25-S17S-C
SL25-S17S-F 2616-B-14-25V 25VRMS 15/75 Synchronized Flush I-SM25-S17S
SL25-S17S-S 2617-B-14-25V 25VRMS 15/75 Synchronized Surface I-SM25-S17S
SL25-S17S-C 2618-B-14-25V 25VRMS 15/75 Synchronized Ceiling I-SM25-S17S-C
SL25-S75S-F 2616-C-14-25V 25VRMS 75 Synchronized Flush I-SM25-S75S
SL25-S75S-S 2617-C-14-25V 25VRMS 75 Synchronized Surface I-SM25-S75S
SL70-S15S-F 2616-A-14-70V 70VRMS 15 Synchronized Flush I-SM70-S17S
SL70-S15S-S 2617-A-14-70V 70VRMS 15 Synchronized Surface I-SM70-S17S
SL70-S15S-C 2618-A-14-70V 70VRMS 15 Synchronized Ceiling I-SM70-S17S-C
SL70-S17S-F 2616-B-14-70V 70VRMS 15/75 Synchronized Flush I-SM70-S17S
SL70-S17S-S 2617-B-14-70V 70VRMS 15/75 Synchronized Surface I-SM70-S17S
SL70-S17S-C 2618-B-14-70V 70VRMS 15/75 Synchronized Ceiling I-SM70-S17S-C
SL70-S75S-F 2616-C-14-70V 70VRMS 75 Synchronized Flush I-SM70-S75S
SL70-S75S-S 2617-C-14-70V 70VRMS 75 Synchronized Surface I-SM70-S75S

SM series (0.25, 0.5, 1, 2W)

Pyrotronics model Faraday model Voltage Candela Synchronization Mounting Replaced By
SM25-F [25] 2633-0-14-25V 25VRMS N/A Free Run Flush I-SM25[24]
SM25-S 2634-0-14-25V 25VRMS N/A Free Run Surface I-SM25
SM25-C 2635-0-14-25V 25VRMS N/A Free Run Ceiling I-SM25-C
SM25-S15-F 2636-N-14-25V 25VRMS 15 Free Run Flush I-SM25-S17
SM25-S15-S 2637-N-14-25V 25VRMS 15 Free Run Surface I-SM25-S17
SM25-S15-C 2638-N-14-25V 25VRMS 15 Free Run Ceiling I-SM25-S17-C
SM25-S17-F 2636-W-14-25V 25VRMS 15/75 Free Run Flush I-SM25-S17
SM25-S17-S 2637-W-14-25V 25VRMS 15/75 Free Run Surface I-SM25-S17
SM25-S17-C 2638-W-14-25V 25VRMS 15/75 Free Run Ceiling I-SM25-S17-C
SM25-S75-F 2636-D-14-25V 25VRMS 75 Free Run Flush I-SM25-S75
SM25-S75-S 2637-D-14-25V 25VRMS 75 Free Run Surface I-SM25-S75
SM25-S110-F 2636-S-14-25V 25VRMS 110 Free Run Flush I-SM25-S110
SM25-S110-S 2637-S-14-25V 25VRMS 110 Free Run Surface I-SM25-S110
SM70-F 2633-0-14-70V[26] 70VRMS N/A Free Run Flush I-SM70
SM70-S 2634-0-14-70V[27] 70VRMS N/A Free Run Surface I-SM70
SM70-C 2635-0-14-70V 70VRMS N/A Free Run Ceiling I-SM70-C
SM70-S15-F 2636-N-14-70V 70VRMS 15 Free Run Flush I-SM70-S17
SM70-S15-S 2637-N-14-70V 70VRMS 15 Free Run Surface I-SM70-S17
SM70-S15-C 2638-N-14-70V 70VRMS 15 Free Run Ceiling I-SM70-S17-C
SM70-S17-F 2636-W-14-70V 70VRMS 15/75 Free Run Flush I-SM70-S17
SM70-S17-S 2637-W-14-70V 70VRMS 15/75 Free Run Surface I-SM70-S17
SM70-S17-C 2638-W-14-70V 70VRMS 15/75 Free Run Ceiling I-SM70-S17-C
SM70-S75-F 2636-D-14-70V 70VRMS 75 Free Run Flush I-SM70-S75
SM70-S75-S 2637-D-14-70V 70VRMS 75 Free Run Surface I-SM70-S75
SM70-S110-F 2636-S-14-70V 70VRMS 110 Free Run Flush I-SM70-S110
SM70-S110-S 2637-S-14-70V 70VRMS 110 Free Run Surface I-SM70-S110
SM25-S15S-F 2636-A-14-25V 25VRMS 15 Synchronized Flush I-SM25-S17S
SM25-S15S-S 2637-A-14-25V 25VRMS 15 Synchronized Surface I-SM25-S17S
SM25-S15S-C 2638-A-14-25V 25VRMS 15 Synchronized Ceiling I-SM25-S17S-C
SM25-S17S-F 2636-B-14-25V 25VRMS 15/75 Synchronized Flush I-SM25-S17S
SM25-S17S-S 2637-B-14-25V 25VRMS 15/75 Synchronized Surface I-SM25-S17S
SM25-S17S-C 2638-B-14-25V 25VRMS 15/75 Synchronized Ceiling I-SM25-S17S-C
SM25-S75S-F 2636-C-14-25V 25VRMS 75 Synchronized Flush I-SM25-S75S
SM25-S75S-S 2637-C-14-25V 25VRMS 75 Synchronized Surface I-SM25-S75S
SM70-S15S-F 2636-A-14-70V 70VRMS 15 Synchronized Flush I-SM70-S17S
SM70-S15S-S 2637-A-14-70V 70VRMS 15 Synchronized Surface I-SM70-S17S
SM70-S15S-C 2638-A-14-70V 70VRMS 15 Synchronized Ceiling I-SM70-S17S-C
SM70-S17S-F 2636-B-14-70V 70VRMS 15/75 Synchronized Flush I-SM70-S17S
SM70-S17S-S 2637-B-14-70V 70VRMS 15/75 Synchronized Surface I-SM70-S17S
SM70-S17S-C 2638-B-14-70V 70VRMS 15/75 Synchronized Ceiling I-SM70-S17S-C
SM70-S75S-F 2636-C-14-70V 70VRMS 75 Synchronized Flush I-SM70-S75S
SM70-S75S-S 2637-C-14-70V 70VRMS 75 Synchronized Surface I-SM70-S75S

EC series

Pyrotronics model Faraday model Candela Mounting Replaced By
EC-F 5303 N/A Flush U-EC
EC-S 5304[28] N/A Surface U-EC
EC-C 5305 N/A Ceiling U-EC-C
EC-S15-F 5306-N 15 Flush U-EC-S17
EC-S15-S 5307-N 15 Surface U-EC-S17
EC-S15-C 5308-N 15 Ceiling U-EC-S17-C
EC-S17-F 5306-W 15/75 Flush U-EC-S17
EC-S17-S 5307-W 15/75 Surface U-EC-S17
EC-S17-C 5308-W 15/75 Ceiling U-EC-S17-C
EC-S75-F 5306-D 75 Flush U-EC-S75
EC-S75-S 5307-D 75 Surface U-EC-S75
EC-S110-F 5306-S 110 Flush U-EC-S110
EC-S110-S 5307-S 110 Surface U-EC-S110

EH series

Pyrotronics Model Number Faraday Model Number Candela Mounting Replaced By
EH-F 5343 N/A Flush U-MMT
EH-S 5344 N/A Surface U-MMT
EH-C 5345 N/A Ceiling U-MMT
EH-S15-F 5346-N 15 Flush U-MMT-S17
EH-S15-S 5347-N 15 Surface U-MMT-S17
EH-S15-C 5348-N 15 Ceiling U-MMT-S17-C
EH-S17-F 5346-W 15/75 Flush U-MMT-S17
EH-S17-S 5347-W 15/75 Surface U-MMT-S17
EH-S17-C 5348-W 15/75 Ceiling U-MMT-S17-C
EH-S75-F 5346-D 75 Flush U-MMT-S75
EH-S75-S 5347-D 75 Surface U-MMT-S75
EH-S110-F 5346-S 110 Flush U-MMT-S110
EH-S110-S 5347-S 110 Surface U-MMT-S110

EW series

Pyrotronics Model Number Faraday Model Number Candela Mounting Replaced By
EW-F 5323 N/A Flush U-MMT
EW-S 5324 N/A Surface U-MMT
EW-C 5325 N/A Ceiling U-MMT
EW-S15-F 5326-N 15 Flush U-MMT-S17
EW-S15-S 5327-N 15 Surface U-MMT-S17
EW-S15-C 5328-N 15 Ceiling U-MMT-S17-C
EW-S17-F 5326-W 15/75 Flush U-MMT-S17
EW-S17-S 5327-W 15/75 Surface U-MMT-S17
EW-S17-C 5328-W 15/75 Ceiling U-MMT-S17-C
EW-S75-F 5326-D 75 Flush U-MMT-S75
EW-S75-S 5327-D 75 Surface U-MMT-S75
EW-S110-F 5326-S 110 Flush U-MMT-S110
EW-S110-S 5327-S 110 Surface U-MMT-S110

MC series

Pyrotronics Model Number Faraday Model Number Candela Mounting Replaced By
MC-F 5333 N/A Flush U-MMT
MC-S 5334 N/A Surface U-MMT
MC-C 5335 N/A Ceiling U-MMT
MC-S15-F 5336-N 15 Flush U-MMT-S17
MC-S15-S 5337-N 15 Surface U-MMT-S17
MC-S15-C 5338-N 15 Ceiling U-MMT-S17-C
MC-S17-F 5336-W 15/75 Flush U-MMT-S17
MC-S17-S 5337-W 15/75 Surface U-MMT-S17
MC-S17-C 5338-W 15/75 Ceiling U-MMT-S17-C
MC-S75-F 5336-D 75 Flush U-MMT-S75
MC-S75-S 5337-D 75 Surface U-MMT-S75
MC-S110-F 5336-S 110 Flush U-MMT-S110
MC-S110-S 5337-S 110 Surface U-MMT-S110

MT series

Pyrotronics model Faraday model Candela Mounting Replaced By
MT-F 5373-0-14-24-DC N/A Flush U-MMT
MT-S 5374-0-14-24-DC[29] N/A Surface U-MMT
MT-C 5375-0-14-24-DC N/A Ceiling U-MMT
MT-S15-F 5376-N 15 Flush U-MMT-S17
MT-S15-S 5377-N 15 Surface U-MMT-S17
MT-S15-C 5378-N 15 Ceiling U-MMT-S17-C
MT-S17-F 5376-W 15/75 Flush U-MMT-S17
MT-S17-S 5377-W 15/75 Surface U-MMT-S17
MT-S17-C 5378-W 15/75 Ceiling U-MMT-S17-C
MT-S75-F 5376-D 75 Flush U-MMT-S75
MT-S75-S 5377-D 75 Surface U-MMT-S75
MT-S110-F 5376-S 110 Flush U-MMT-S110
MT-S110-S 5377-S 110 Surface U-MMT-S110

MTL series

Pyrotronics model Faraday model Candela Mounting Replaced By
MTL-F 5383-0-14-24-DC N/A Flush U-MMT
MTL-S 5384-0-14-24-DC[30] N/A Surface U-MMT
MTL-C 5385-0-14-24-DC N/A Ceiling U-MMT
MTL-S15-F 5386-N 15 Flush U-MMT-S17
MTL-S15-S 5387-N 15 Surface U-MMT-S17
MTL-S15-C 5388-N 15 Ceiling U-MMT-S17-C
MTL-S17-F 5386-W 15/75 Flush U-MMT-S17
MTL-S17-S 5387-W 15/75 Surface U-MMT-S17
MTL-S17-C 5388-W 15/75 Ceiling U-MMT-S17-C
MTL-S75-F 5386-D 75 Flush U-MMT-S75
MTL-S75-S 5387-D 75 Surface U-MMT-S75
MTL-S110-F 5386-S 110 Flush U-MMT-S110
MTL-S110-S 5387-S 110 Surface U-MMT-S110

Mini-horns

Pyrotronics model Faraday model Tones Candela Mounting Color Replaced By
MH-1G 6300-0-14-24-DC Steady N/A Single gang Red U-MH-1G
MH-1GW 6300-0-14-24-DC Steady N/A Single gang White U-MH-1G-W
MH-U 6301-0-14-24-DC[31] Steady N/A Universal Red U-MH
MH-UW 6301-0-14-24-DC Steady N/A Universal White U-MH-W
MH-S15-U 6302-N Steady 15 Universal Red U-MH-S17
MH-S15-UW 6302-N Steady 15 Universal White U-MH-S17-W
MH-S17-U 6302-W Steady 15/75 Universal Red U-MH-S17
MH-S17-UW 6302-W Steady 15/75 Universal White U-MH-S17-W
MH-S75-U 6302-D Steady 75 Universal Red U-MH-S75
MH-S75-UW 6302-D Steady 75 Universal White U-MH-S75-W
MH-S110-U 6302-S Steady 110 Universal Red U-MH-S110
MH-S110-UW 6302-S Steady 110 Universal White U-MH-S110-W
MHT-1G 6310-0-14-24-DC Steady, Temporal N/A Single gang Red U-MHT-1G
MHT-1GW 6310-0-14-24-DC Steady, Temporal N/A Single gang White U-MHT-1G-W
MHT-U 6311-0-14-24-DC Steady, Temporal N/A Universal Red U-MHT
MHT-UW 6311-0-14-24-DC Steady, Temporal N/A Universal White U-MHT-W
MHT-S15-U 6312-N Steady, Temporal 15 Universal Red U-MHT-S17
MHT-S15-UW 6312-N Steady, Temporal 15 Universal White U-MHT-S17-W
MHT-S17-U 6312-W Steady, Temporal 15/75 Universal Red U-MHT-S17
MHT-S17-UW 6302-W Steady, Temporal 15/75 Universal White U-MHT-S17-W
MHT-S75-U 6312-D Steady, Temporal 75 Universal Red U-MHT-S75
MHT-S75-UW 6312-D Steady, Temporal 75 Universal White U-MHT-S75-W
MHT-S110-U 6312-S Steady, Temporal 110 Universal Red U-MHT-S110
MHT-S110-UW 6312-S Steady, Temporal 110 Universal White U-MHT-S110-W

MHST series

Pyrotronics Model Number Faraday Model Number Candela Mounting Color Replaced By
MHST-1G 6320 N/A Single gang Red U-MHST-1G
MHST-1GW 6320 N/A Single gang White U-MHST-1G-W
MHST-U 6321 N/A Universal Red U-MHST
MHST-UW 6321 N/A Universal White U-MHST-W
MHST-S15S-U 6322-A 15 Universal Red U-MHST-S17S
MHST-S15S-UW 6322-A 15 Universal White U-MHST-S17S-W
MHST-S17S-U 6322-B 15/75 Universal Red U-MHST-S17S
MHST-S17S-UW 6322-B 15/75 Universal White U-MHST-S17S-W
MHST-S75S-U 6322-C 75 Universal Red U-MHST-S75S
MHST-S75S-UW 6322-C 75 Universal White U-MHST-S75S-W

MMT series (Same tones as the MTL, but different looking)

Pyrotronics Model Number Faraday Model Number Candela Strobe Sync Mounting Color Replaced By
MMT-1G 6380 N/A N/A Single gang Red U-MMT-1G
MMT-1GW 6380 N/A N/A Single gang White U-MMT-1G-W
MMT-U 6381 N/A N/A Universal Red U-MMT
MMT-UW 6381 N/A N/A Universal White U-MMT-W
MMT-S15-U 6382-N 15 Free-run Universal Red U-MMT-S17
MMT-S15-UW 6382-N 15 Free-run Universal White U-MMT-S17-W
MMT-S15S-U 6382-A 15 Synchronized Universal Red U-MMT-S17S
MMT-S15S-UW 6382-A 15 Synchronized Universal White U-MMT-S17S-W
MMT-S17-U 6382-W 15/75 Free-run Universal Red U-MMT-S17
MMT-S17-UW 6382-W 15/75 Free-run Universal White U-MMT-S17-W
MMT-S17S-U 6382-B 15/75 Synchronized Universal Red U-MMT-S17S
MMT-S17S-UW 6382-B 15/75 Synchronized Universal White U-MMT-S17S-W
MMT-S75-U 6382-D 75 Free-run Universal Red U-MMT-S75
MMT-S75-UW 6382-D 75 Free-run Universal White U-MMT-S75-W
MMT-S75S-U 6382-C 75 Synchronized Universal Red U-MMT-S75S
MMT-S75S-UW 6382-C 75 Synchronized Universal White U-MMT-S75S-W
MMT-S110-U 6382-S 110 Free-run Universal Red U-MMT-S110
MMT-S110-UW 6382-S 110 Free-run Universal White U-MMT-S110-W

References

  1. ↑ https://web.archive.org/web/19970421002824/http://cerbpyro.com/csasd.htm
  2. ↑ "SM Speakers" (2531). Cerberus Pyrotronics (September 1996).
  3. ↑ "MTL 8-Tone Signaling Devices" (2532). Cerberus Pyrotronics (February 1997).
  4. ↑ "Visual Signaling Devices" (2533). Cerberus Pyrotronics (December 1996).
  5. ↑ "MH and MHT Mini-Horns" (2534). Cerberus Pyrotronics (June 1997).
  6. ↑ "MHST Horns" (2535). Cerberus Pyrotronics (June 1997).
  7. ↑ "MMT Multi-Tone Horns" (2536). Cerberus Pyrotronics (June 1997).
  8. ↑ "Alarm Signaling Devices" Cerberus Pyrotronics. Archive 1998-07-14 vs. 1998-12-02
  9. ↑ https://web.archive.org/web/20000511130745/http://www.cerbpyro.com/csasd.htm
  10. ↑ https://productiq.ulprospector.com/en/profile/154781/uukc.s5568
  11. ↑ https://www.ebay.com/itm/364143823861
  12. ↑ https://productiq.ulprospector.com/en/profile/214716/ueesc.e233551
  13. ↑ https://www.ebay.com/itm/126222498255
  14. ↑ https://cdn.thefirepanel.com/docs/cerberus-pyrotronics/Cerberus%20Pyrotronics%20-%20Sh%20High%20Output%20Speakers%20F%20Series%20Speakers%20Speaker%20Strobes%202523.pdf
  15. ↑ https://web.archive.org/web/19980714172000/http://cerbpyro.com/2547.pdf
  16. ↑ https://i.ebayimg.com/images/g/xAAAAOSwkKdmbxAK/s-l1600.jpg
  17. ↑ 17.0 17.1 https://i.ebayimg.com/images/g/MWQAAOSw5i1mIBWs/s-l1600.jpg
  18. ↑ https://i.ebayimg.com/images/g/BFMAAeSwlzJoKNDM/s-l1600.webp
  19. ↑ https://i.ebayimg.com/images/g/cHsAAeSwhB5oKNDM/s-l1600.webp
  20. ↑ https://i.ebayimg.com/images/g/AmoAAeSw6ENoKNDM/s-l1600.webp
  21. ↑ https://i.ebayimg.com/images/g/8EYAAeSwwnJoKNDM/s-l1600.webp
  22. ↑ https://i.ebayimg.com/images/g/9m8AAeSwvjdoKNDM/s-l1600.webp
  23. ↑ https://cdn.thefirepanel.com/docs/cerberus-pyrotronics/Cerberus%20Pyrotronics%20-%20Sl%20Low%20Profile%20Speakers%20F%20Series%20Speakers%20Speaker%20Strobes%202524.pdf
  24. ↑ 24.0 24.1 https://web.archive.org/web/19980714171949/http://cerbpyro.com/2546.pdf
  25. ↑ https://cdn.thefirepanel.com/docs/cerberus-pyrotronics/Cerberus%20Pyrotronics%20-%20Sm%20Speakers%20F%20Series%20Speakers%20And%20Speaker%20Strobes%202531.pdf
  26. ↑ https://i.ebayimg.com/images/g/KscAAOSw~kBlcg9q/s-l1600.jpg
  27. ↑ https://i.ebayimg.com/images/g/IpQAAOSwa7ZkuX4p/s-l1600.jpg
  28. ↑ https://tecumsehsignals.com/Chimes
  29. ↑ https://i.ebayimg.com/images/g/GNoAAOSwyORlchLB/s-l1600.jpg
  30. ↑ https://i.ebayimg.com/images/g/xmIAAOSwTtNleKoa/s-l1600.jpg
  31. ↑ https://i.ebayimg.com/images/g/L~EAAOSwv0tVHRFR/s-l1600.jpg
Retrieved from "https://wiki.thefirepanel.com/index.php?title=Pyrotronics_F-Series&oldid=3796"
