The Wheelock Exceder LED series is a series of notification appliances. The strobes in this series use LED2 bulbs.

History

The Exceder LED series was released in 2012 with wall-mount horns, strobes, and horn strobes to complement the xenon devices in the Exceder series. These devices resembled the Edwards Genesis G1 devices. By 2014, Edwards was rebranding these devices with their own housing as the Edwards GL1 series.

In 2013, the Exceder LED wall-mount speakers and speaker strobes were released. These were redesigned E50H speakers in housing that resembled the Edwards Genesis G4 devices.

In 2014, ceiling-mount notification appliances were released. The horns and strobes were redesigned from the xenon Exceder devices, with smaller strobe lenses and larger grilles. The ceiling speakers had a new design with the speaker fully surrounding the central strobe.

The LLFHN and LLFHS low frequency sounders and sounder strobes were also released in 2014, with similar housing to the wall speakers, to meet the NFPA 72 low frequency requirements that took effect in 2014. These introduced a new Code 4 signal to prepare for the NFPA 720 requirements in 2015, and they had a new mode that allowed Code 3 and Code 4 to be provided on the same NAC.

In 2016, the LLFHN and LLFHS were replaced with the LFHNK and LFHSK respectively. The new devices were functionally similar to the old devices, but they were more compact than the original devices, allowing them to fit in a single-gang backbox.

In 2018, the Exceder LED series was discontinued due to the release of the Exceder LED3 series.

Features

The horns in the Exceder LED series can output 95 or 90 anechoic dBA, the speakers output 300-8000 Hz at 1/8, 1/4, 1/2, 1, or 2 watts, and the low frequency sounders output 80 anechoic dBA. The strobes on the low frequency sounders only output 110 candela, while all other strobes can be set to 15, 30, 75, 95 (ceiling models), or 110 candela (wall models).

Compared to low frequency sounders from other companies, the Exceder 520 Hz tone less closely resembles a pure square wave, instead producing a tone with ample static noise.

The low frequency sounders include a Code 3/Code 4 tone that causes the device to output a Code 3 tone when the synchronization module places the horn in audible silence mode and Code 4 at other times. Audible silence is not supported in this mode.

The horns and strobes are designed to mount on a single-gang box, but they can also mount on 4-inch square boxes using an ESB-KIT. The speakers and low frequency sounders are designed to mount on 4-inch square boxes, but the LFHNK and LFHSK can be mounted on single-gang boxes using an LFTP.

Models

Strobes

Model Number	Mounting	Color	Xenon Alternative	Replaced By
LSTR	Wall	Red	STR	LSTR3
LSTW	Wall	White	STW	LSTW3
LSTRC	Ceiling	Red	STRC	LSTRC3
LSTWC	Ceiling	White	STWC	LSTWC3

Horns

Model Number	Type	Mounting	Color	Xenon Alternative	Replaced By
LHNR	Horn	Wall	Red	HNR	LHNR3
LHNW	Horn	Wall	White	HNW	LHNW3
LHNRC	Horn	Ceiling	Red	HNRC	LHNRC3
LHNWC	Horn	Ceiling	White	HNWC	LHNWC3
LHSR	Horn strobe	Wall	Red	HSR	LHSR3
LHSW	Horn strobe	Wall	White	HSW	LHSW3
LHSRC	Horn strobe	Ceiling	Red	HSRC	LHSRC3
LHSWC	Horn strobe	Ceiling	White	HSWC	LHSWC3

Speakers

Model Number	Type	Mounting	Color	Xenon Alternative	Replaced By
LSPKR	Speaker	Wall	Red	E50H-R E70H-R	ELSPKR
LSPKW	Speaker	Wall	White	E50H-W E70H-W	ELSPKW
LSPKRC	Speaker	Ceiling	Red	E60H-R E90H-R	ELSPKRC
LSPKWC	Speaker	Ceiling	White	E60H-W E90H-W	ELSPKWC
LSPSTR	Speaker strobe	Wall	Red	E50H-24MCW-FR E70H-24MCW-FR	LSPSTR3
LSPSTW	Speaker strobe	Wall	White	E50H-24MCW-FW E70H-24MCW-FW	LSPSTW3
LSPSTRC	Speaker strobe	Ceiling	Red	E60H-24MCC-FR E90H-24MCC-FR	LSPSTRC3
LSPSTWC	Speaker strobe	Ceiling	White	E60H-24MCC-FW E90H-24MCC-FW	LSPSTWC3

Low frequency sounders

Model Number	Type	Mounting	Color	Replaced By
LLFHNR	Sounder	Wall	Red	LFHNKR
LLFHNW	Sounder	Wall	White	LFHNKW
LLFHSR	Sounder strobe	Wall	Red	LFHSKR
LLFHSW	Sounder strobe	Wall	White	LFHSKW
LFHNKR	Compact sounder	Wall	Red	LFHNKR3
LFHNKW	Compact sounder	Wall	White	LFHNKW3
LFHSKR	Compact sounder strobe	Wall	Red	LFHSKR3
LFHSKW	Compact sounder strobe	Wall	Red	LFHSKW3

Mounting accessories

Model Number	Type	Mounting	Color
LSBB-R	Backbox	Wall	Red
LSBB-W	Backbox	Wall	White
ESB-KIT-R	Trimplate	Wall	Red
ESB-KIT-W	Trimplate	Wall	White
LSPKBB-R	Backbox	Wall	Red
LSPKBB-W	Backbox	Wall	White
LSPKBB-CR	Backbox	Ceiling	Red
LSPKBB-CW	Backbox	Ceiling	White
LFTP-R	Trimplate	Wall	Red
LFTP-W	Trimplate	Wall	White

Rebrands

Edwards

Edwards rebranded the Exceder LED horns and strobes with their own covers as the Genesis GL series. Shortly after the Exceder LED series was discounted, Edwards released their own lineup of LED devices in the Genesis series (Genesis LED G4S series) to replace the GL1 series.

Strobes

Model	Color	Lettering	Replaced by

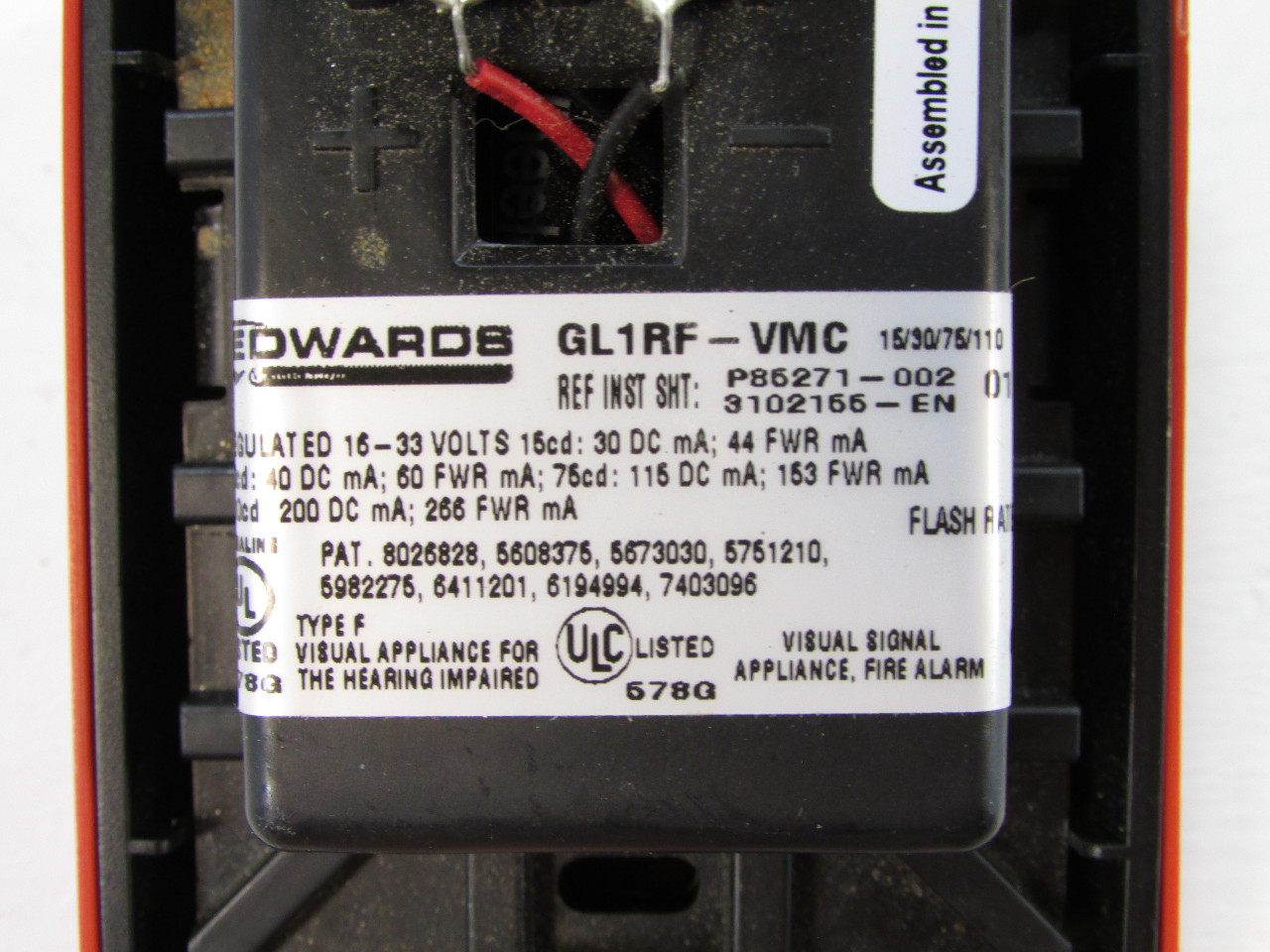

GL1RF-VMC	Red	FIRE	G1VRF G4VRF
GL1RN-VMC	Red	None	G1VRN G4VRN
GL1WF-VMC	White	FIRE	G1VWF G4VWF
GL1WN-VMC	White	None	G1VWN G4VWN

Horns

Model	Type	Color	Lettering	Replaced by
GL1RF-HD	Horn	Red	FIRE	G1ARF
GL1RN-HD	Horn	Red	None	G1ARN
GL1WF-HD	Horn	White	FIRE	G1AWF
GL1WN-HD	Horn	White	None	G1AWN
GL1RF-HDVMC	Horn strobe	Red	FIRE	G1AVRF G4AVRF
GL1RN-HDVMC	Horn strobe	Red	None	G1AVRN G4AVRN
GL1WF-HDVMC	Horn strobe	White	FIRE	G1AVWF G4AVWF
GL1WN-HDVMC	Horn strobe	White	None	G1AVWN G4AVWN
