Gentex Commander series

From The Fire Panel

The Gentex Commander series are fire alarm and mass notification appliances

Commander Series
Commander3series.jpg: Infobox image for Commander Series the infobox device.
Commander2bracket.jpg: Infobox image for Commander Series the infobox device.
Mass notification commanders.webp: Infobox image for Commander Series the infobox device.
Manufacturer

Gentex Corporation {"label": "Manufacturer", "field": "Gentex Corporation"}

Color(s)
Red
White
{"label": "Color(s)", "field": "
Red
White
"}
Rated Voltage

24VDC[1] {"label": "Rated Voltage", "field": "24VDC[1]"}

Preceded by

Gentex HG series
Gentex GM series
Gentex GO series
Gentex GX series {"label": "Preceded by", "field": "Gentex HG series
Gentex GM series
Gentex GO series
Gentex GX series"}

{
    "rows": [],
    "title": "Commander Series",
    "images": [
        "Commander3series.jpg",
        "Commander2bracket.jpg",
        "Mass notification commanders.webp"
    ]
}


Commander 1

Being the original iteration of the Commander series, it was introduced in the early 2000s. It features a 3,000Hz piezo tone, just like the GX90 and GX91 series of mini-horns. It features a different font for its "FIRE" lettering, resembling that of what System Sensor uses for their alarms.

Commander 2/3

Although they are very much alike, the Commander 2 strobes are fixed candela strobes. The Commander 3 strobes are multicandela strobes.

Commander 4

This is the ceiling mount version of the Commander 3, with available exclusively with multicandela strobes.

Commander 5

The Commander 5 was showcased at the 2024 NFPA Expo in Orange County, Florida[2] with the selling point of all models using the same mounting plate, and the strobes being listed for both wall mount and ceiling mount—the first time for the Commander series.

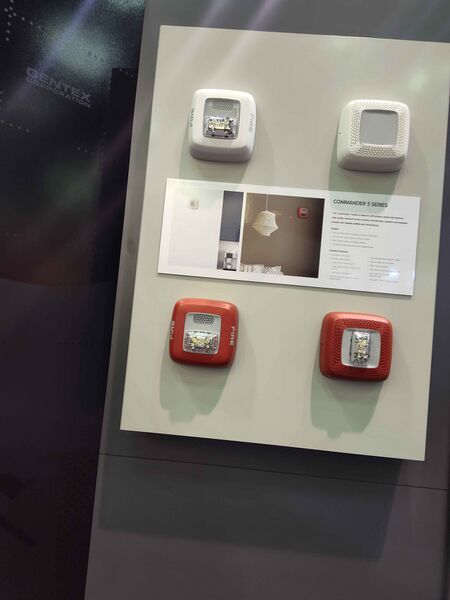

The Gentex Corporation booth at the 2024 NFPA Expo showcasing the new Commander 5 devices

Models

Commander strobes

Model Number Candela Color Lettering
ST24-15WR 15 Red FIRE
ST24-15WW 15 White FIRE
ST24-15PWR 15 Red None
ST24-15PWW 15 White None
ST24-15/75WR 15/75 Red FIRE
ST24-15/75WW 15/75 White FIRE
ST24-15/75PWR 15/75 Red None
ST24-15/75PWW 15/75 White None
ST24-30WR 30 Red FIRE
ST24-30WW 30 White FIRE
ST24-30PWR 30 Red None
ST24-30PWW 30 White None
ST24-60WR 60 Red FIRE
ST24-60WW 60 White FIRE
ST24-60PWR 60 Red None
ST24-60PWW 60 White None
ST24-75WR 75 Red FIRE
ST24-75WW 75 White FIRE
ST24-75PWR 75 Red None
ST24-75PWW 75 White None
ST24-110WR 110 Red FIRE
ST24-110WW 110 White FIRE
ST24-110PWR 110 Red None
ST24-110PWW 110 White None

Commander horn strobes

Model Number Candela Color Lettering
HS24-15WR 15 Red FIRE
HS24-15WW 15 White FIRE
HS24-15PWR 15 Red None
HS24-15PWW 15 White None
HS24-15/75WR 15/75 Red FIRE
HS24-15/75WW 15/75 White FIRE
HS24-15/75PWR 15/75 Red None
HS24-15/75PWW 15/75 White None
HS24-30WR 30 Red FIRE
HS24-30WW 30 White FIRE
HS24-30PWR 30 Red None
HS24-30PWW 30 White None
HS24-60WR 60 Red FIRE
HS24-60WW 60 White FIRE
HS24-60PWR 60 Red None
HS24-60PWW 60 White None
HS24-75WR 75 Red FIRE
HS24-75WW 75 White FIRE
HS24-75PWR 75 Red None
HS24-75PWW 75 White None
HS24-110WR 110 Red FIRE
HS24-110WW 110 White FIRE
HS24-110PWR 110 Red None
HS24-110PWW 110 White None

Commander2 strobes

Model Candela Color Lettering
GES24-15WR[3] 15 Red FIRE
GES24-15PWR 15 Red None
GES24-15WW 15 White FIRE
GES24-15PWW 15 White None
GES24-15/75WR 15/75 Red FIRE
GES24-15/75PWR 15/75 Red None
GES24-15/75WW 15/75 White FIRE
GES24-15/75PWW 15/75 White None
GES24-30WR 30 Red FIRE
GES24-30PWR 30 Red None
GES24-30WW 30 White FIRE
GES24-30PWW 30 White None
GES24-60WR 60 Red FIRE
GES24-60PWR 60 Red None
GES24-60WW 60 White FIRE
GES24-60PWW 60 White None
GES24-75WR 75 Red FIRE
GES24-75PWR 75 Red None
GES24-75WW 75 White FIRE
GES24-75PWW 75 White None
GES24-110WR 110 Red FIRE
GES24-110PWR 110 Red None
GES24-110WW 110 White FIRE
GES24-110PWW 110 White None
GES24-177WR[4] 177 Red FIRE
GES24-177PWR 177 Red None
GES24-177WW 177 White FIRE
GES24-177PWW 177 White None

Commander2 horns

Model Candela Color Lettering
GEH24-R N/A Red FIRE
GEH24-PR N/A Red None
GEH24-W N/A White FIRE
GEH24-PW N/A White None
GEC24-15WR 15 Red FIRE
GEC24-15PWR 15 Red None
GEC24-15WW 15 White FIRE
GEC24-15PWW 15 White None
GEC24-15/75WR 15/75 Red FIRE
GEC24-15/75PWR 15/75 Red None
GEC24-15/75WW 15/75 White FIRE
GEC24-15/75PWW 15/75 White None
GEC24-30WR 30 Red FIRE
GEC24-30PWR 30 Red None
GEC24-30WW 30 White FIRE
GEC24-30PWW 30 White None
GEC24-60WR 60 Red FIRE
GEC24-60PWR 60 Red None
GEC24-60WW 60 White FIRE
GEC24-60PWW 60 White None
GEC24-75WR 75 Red FIRE
GEC24-75PWR 75 Red None
GEC24-75WW 75 White FIRE
GEC24-75PWW 75 White None
GEC24-110WR 110 Red FIRE
GEC24-110PWR 110 Red None
GEC24-110WW 110 White FIRE
GEC24-110PWW 110 White None
GEC24-177WR 177 Red FIRE
GEC24-177PWR 177 Red None
GEC24-177WW 177 White FIRE
GEC24-177PWW 177 White None

Commander3 strobes

Model Voltage Candela Lens color Housing color Lettering Replaces
GES3-12WR[5] 12VDC 15, 30, 60, 75 White Red FIRE None
GES3-12PWR 12VDC 15, 30, 60, 75 White Red None None
GES3-12WW 12VDC 15, 30, 60, 75 White White FIRE None
GES3-12PWW 12VDC 15, 30, 60, 75 White White None None
GES3-24WR 24VDC 15, 30, 60, 75, 110 White Red FIRE GES24-15WR
GES24-30WR
GES24-60WR
GES24-75WR
GES24-110WR
GES3-24PWR 24VDC 15, 30, 60, 75, 110 White Red None GES24-15PWR
GES24-30PWR
GES24-60PWR
GES24-75PWR
GES24-110PWR
GES3-24WW 24VDC 15, 30, 60, 75, 110 White White FIRE GES24-15WW
GES24-30WW
GES24-60WW
GES24-75WW
GES24-110WW
GES3-24PWW 24VDC 15, 30, 60, 75, 110 White White None GES24-15PWW
GES24-30PWW
GES24-60PWW
GES24-75PWW
GES24-110PWW
GESA24PWR[6] 24VDC 15, 30, 60, 75, 110 Amber Red None None
GESA24PWW 24VDC 15, 30, 60, 75, 110 Amber White None None
GESB24PWR 24VDC 15, 30, 60, 75, 110 Blue Red None None
GESB24PWW 24VDC 15, 30, 60, 75, 110 Blue White None None
GESG24PWR 24VDC 15, 30, 60, 75, 110 Green Red None None
GESG24PWW 24VDC 15, 30, 60, 75, 110 Green White None None
GESR24PWR 24VDC 15, 30, 60, 75, 110 Red Red None None
GESR24PWW 24VDC 15, 30, 60, 75, 110 Red White None None

Commander3 horn strobes

Model Voltage Candela Lens color Housing color Lettering Replaces
GEC3-12WR 12VDC 15, 30, 60, 75 White Red FIRE None
GEC3-12PWR 12VDC 15, 30, 60, 75 White Red None None
GEC3-12WW 12VDC 15, 30, 60, 75 White White FIRE None
GEC3-12PWW 12VDC 15, 30, 60, 75 White White None None
GEC3-24WR 24VDC 15, 30, 60, 75, 110 White Red FIRE GEC24-15WR
GEC24-30WR
GEC24-60WR
GEC24-75WR
GEC24-110WR
GEC3-24PWR 24VDC 15, 30, 60, 75, 110 White Red None GEC24-15PWR
GEC24-30PWR
GEC24-60PWR
GEC24-75PWR
GEC24-110PWR
GEC3-24WW 24VDC 15, 30, 60, 75, 110 White White FIRE GEC24-15WW
GEC24-30WW
GEC24-60WW
GEC24-75WW
GEC24-110WW
GEC3-24PWW 24VDC 15, 30, 60, 75, 110 White White None GEC24-15PWW
GEC24-30PWW
GEC24-60PWW
GEC24-75PWW
GEC24-110PWW
GECA24PWR 24VDC 15, 30, 60, 75, 110 Amber Red None None
GECA24PWW 24VDC 15, 30, 60, 75, 110 Amber White None None
GECB24PWR 24VDC 15, 30, 60, 75, 110 Blue Red None None
GECB24PWW 24VDC 15, 30, 60, 75, 110 Blue White None None
GECG24PWR 24VDC 15, 30, 60, 75, 110 Green Red None None
GECG24PWW 24VDC 15, 30, 60, 75, 110 Green White None None
GECR24PWR 24VDC 15, 30, 60, 75, 110 Red Red None None
GECR24PWW 24VDC 15, 30, 60, 75, 110 Red White None None

Commander4 strobes

Model Number Candela Lens color Housing color Lettering
GCS24CR[7] 15, 30, 75, 95, 115, 150 White Red FIRE
GCS24PCR 15, 30, 75, 95, 115, 150 White Red None
GCS24CW 15, 30, 75, 95, 115, 150 White White FIRE
GCS24PCW 15, 30, 75, 95, 115, 150 White White None
GCSA24PCR[8] 15, 30, 75, 95, 115, 150 Amber Red None
GCSA24PCW 15, 30, 75, 95, 115, 150 Amber White None
GCSB24PCR 15, 30, 75, 95, 115, 150 Blue Red None
GCSB24PCW 15, 30, 75, 95, 115, 150 Blue White None
GCSG24PCR 15, 30, 75, 95, 115, 150 Green Red None
GCSG24PCW 15, 30, 75, 95, 115, 150 Green White None
GCSR24PCR 15, 30, 75, 95, 115, 150 Red Red None
GCSR24PCW 15, 30, 75, 95, 115, 150 Red White None

Commander4 horn strobes

Model Number Candela Lens color Housing color Lettering
GCC24CR 15, 30, 75, 95, 115, 150 White Red FIRE
GCC24PCR 15, 30, 75, 95, 115, 150 White Red None
GCC24CW 15, 30, 75, 95, 115, 150 White White FIRE
GCC24PCW 15, 30, 75, 95, 115, 150 White White None
GCCA24PCR 15, 30, 75, 95, 115, 150 Amber Red None
GCCA24PCW 15, 30, 75, 95, 115, 150 Amber White None
GCCB24PCR 15, 30, 75, 95, 115, 150 Blue Red None
GCCB24PCW 15, 30, 75, 95, 115, 150 Blue White None
GCCG24PCR 15, 30, 75, 95, 115, 150 Green Red None
GCCG24PCW 15, 30, 75, 95, 115, 150 Green White None
GCCR24PCR 15, 30, 75, 95, 115, 150 Red Red None
GCCR24PCW 15, 30, 75, 95, 115, 150 Red White None

Outdoor Commander strobes

Model Number Candela Lens color Housing color Lettering
WGES24-75WR[9] 75 White Red FIRE
WGES24-75PWR 75 White Red None
WGES24-75WW 75 White White FIRE
WGES24-75PWW 75 White White None
WGES24-75WRLP 75 White Red FIRE
WGES24-75PWRLP 75 White Red None
WGES24-75WWLP 75 White White FIRE
WGES24-75PWWLP 75 White White None
WGESA24-75PWR[10] 75 Amber Red None
WGESA24-75PWW 75 Amber White None
WGESA24-75PWRLP 75 Amber Red None
WGESA24-75PWWLP 75 Amber White None
WGESB24-75PWR 75 Blue Red None
WGESB24-75PWW 75 Blue White None
WGESB24-75PWRLP 75 Blue Red None
WGESB24-75PWWLP 75 Blue White None
WGESG24-75PWR 75 Green Red None
WGESG24-75PWW 75 Green White None
WGESG24-75PWRLP 75 Green Red None
WGESG24-75PWWLP 75 Green White None
WGESR24-75PWR 75 Red Red None
WGESR24-75PWW 75 Red White None
WGESR24-75PWRLP 75 Red Red None
WGESR24-75PWWLP 75 Red White None

Outdoor Commander horn strobes

Model Number Candela Lens color Housing color Lettering
WGEC24-75WR 75 White Red FIRE
WGEC24-75PWR 75 White Red None
WGEC24-75WW 75 White White FIRE
WGEC24-75PWW 75 White White None
WGEC24-75WRLP 75 White Red FIRE
WGEC24-75PWRLP 75 White Red None
WGEC24-75WWLP 75 White White FIRE
WGEC24-75PWWLP 75 White White None
WGECA24-75PWR 75 Amber Red None
WGECA24-75PWW 75 Amber White None
WGECA24-75PWRLP 75 Amber Red None
WGECA24-75PWWLP 75 Amber White None
WGECB24-75PWR 75 Blue Red None
WGECB24-75PWW 75 Blue White None
WGECB24-75PWRLP 75 Blue Red None
WGECB24-75PWWLP 75 Blue White None
WGECG24-75PWR 75 Green Red None
WGECG24-75PWW 75 Green White None
WGECG24-75PWRLP 75 Green Red None
WGECG24-75PWWLP 75 Green White None
WGECR24-75PWR 75 Red Red None
WGECR24-75PWW 75 Red White None
WGECR24-75PWRLP 75 Red Red None
WGECR24-75PWWLP 75 Red White None

Rebrands

Harrington Signal

Harrington part Harrington model Gentex model Replaced Replaced by
360-2000R[11] HG-24V GEH24-R EH-24R
360-2100W HG-24V GEH24-W EH-24W
360-3300R[12] SSG3-24WR GES3-24WR S-24WR
360-3300W SSG3-24WW GES3-24WW S-24WW
360-3100R HSG3-24WR GEC3-24WR HS-24WR
360-3100W HSG3-24WW GEC3-24WW HS-24WW
360-6600R[13] WS2475R WGES24-75WR S-24WR-WP
360-6600W WS2475W WGES24-75WW S-24WW-WP
360-6100R WHS2475R WGEC24-75WR HS-24WR-WP
360-6100W WHS2475W WGEC24-75WW HS-24WW-WP

Potter

Potter model Gentex model Replaces Replaced by
EH-24R[14] GEH24-R 360-2000R
H-1224R
EH-24W GEH24-W 360-2100W
H-1224W
EH-24PR GEH24-PR None
EH-24PW GEH24-PW None
S-24WR[15] GES3-24WR 360-3300R
SL-1224R
S-24PWR GES3-24PWR None
S-24WW GES3-24WW 360-3300W
SL-1224W
S-24PWW GES3-24PWW None
HS-24WR GEC3-24WR 360-3100R
SH-1224R
HS-24PWR GEC3-24PWR None
HS-24WW GEC3-24WW 360-3100W
SH-1224W
HS-24PWW GEC3-24PWW None
S24-177R[16] GES24-177WR
S24-177W GES24-177WW
HS24-177R GEC24-177WR
HS24-177W GEC24-177WW
S-24WR-WP[17] WGES24-75WR 360-6600R
SL-1224WP-R
S-24WW-WP WGES24-75WW 360-6600W
SL-1224WP-W
S-24PWR-WP WGES24-75PWR None
S-24PWW-WP WGES24-75PWW None
SLP-24WR-WP WGES24-75WRLP SL-1224WP-R
SLP-24WW-WP WGES24-75WWLP SL-1224WP-W
SLP-24PWR-WP WGES24-75PWRLP None
SLP-24PWW-WP WGES24-75PWWLP None
HS-24WR-WP WGEC24-75WR 360-6100R
SH-1224WP-R
HS-24WW-WP WGEC24-75WW 360-6100W
HS-24PWR-WP WGEC24-75PWR None
HS-24PWW-WP WGEC24-75PWW None
HSLP-24WR WGEC24-75WRLP SH-1224WP-R
HSLP-24WW WGEC24-75WWLP None
HSLP-24PWR WGEC24-75PWRLP None
HSLP-24PWW WGEC24-75PWWLP None
CS-24R[18] GCS24CR SL24C-3075110R PE-STRC
CS-24W GCS24CW SL24C-3075110W PE-STWC
CS-24PR GCS24PCR None PE-STRC + PE-GSTRC-N
CS-24PW GCS24PCW None PE-STWC + PE-GSTWC-N
CHS-24R GCC24CR SH24C-3075110R PE-HSRC
CHS-24W GCC24CW SH24C-3075110W PE-HSWC
CHS-24PR GCC24PCR None PE-HSRC + PE-GHSRC-N
CHS-24PW GCC24PCW None PE-HSWC + PE-GHSWC-N
CS-24WAR[19] GESA24PWR CSL-1224W-AR
CS-24WAW GESA24PWW CSL-1224W-AW
CS-24WBR GESB24PWR CSL-1224W-BR
CS-24WBW GESB24PWW CSL-1224W-BW
CS-24WGR GESG24PWR CSL-1224W-GR
CS-24WGW GESG24PWW CSL-1224W-GW
CS-24WRR GESR24PWR CSL-1224W-RR
CS-24WRW GESR24PWW CSL-1224W-RW
CHS-24AR GECA24PWR CSH-1224W-AR
CHS-24AW GECA24PWW CSH-1224W-Aw
CHS-24BR GECB24PWR CSH-1224W-BR
CHS-24BW GECB24PWW CSH-1224W-BW
CHS-24GR GECG24PWR CSH-1224W-GR
CHS-24GW GECG24PWW CSH-1224W-GW
CHS-24RR GECR24PWR CSH-1224W-RR
CHS-24RW GECR24PWW CSH-1224W-RW
CCS-24AR[20] GCSA24PCR CSL24C-AR
CSL24CH-AR
CCS-24AW GCSA24PCW CSL24C-AW
CSL24CH-AW
CCS-24BR GCSB24PCR CSL24C-BR
CSL24CH-BR
CCS-24BW GCSB24PCW CSL24C-BW
CSL24CH-BW
CCS-24GR GCSG24PCR CSL24C-GR
CSL24CH-GR
CCS-24GW GCSG24PCW CSL24C-GW
CSL24CH-GW
CCS-24RR GCSR24PCR CSL24C-RR
CSL24CH-RR
CCS-24RW GCSR24PCW CSL24C-RW
CSL24CH-RW
CCHS-24AR GCCA24PCR CSH24C-AR
CSH24CH-AR
CCHS-24AW GCCA24PCW CSH24C-AW
CSH24CH-AW
CCHS-24BR GCCB24PCR CSH24C-BR
CSH24CH-BR
CCHS-24BW GCCB24PCW CSH24C-BW
CSH24CH-BW
CCHS-24GR GCCG24PCR CSH24C-GR
CSH24CH-GR
CCHS-24GW GCCG24PCW CSH24C-GW
CSH24CH-GW
CCHS-24RR GCCR24PCR CSH24C-RR
CSH24CH-RR
CCHS-24RW GCCR24PCW CSH24C-RW
CSH24CH-RW
CS-24WAR-WP[21] WGESA24-75PWR
CS-24WAW-WP WGESA24-75PWW
CS-24WBR-WP WGESB24-75PWR
CS-24WBW-WP WGESB24-75PWW
CS-24WGR-WP WGESG24-75PWR
CS-24WGW-WP WGESG24-75PWW
CS-24WRR-WP WGESR24-75PWR
CS-24WRW-WP WGESR24-75PWW
CSLP-24WAR-WP WGESA24-75PWRLP
CSLP-24WAW-WP WGESA24-75PWWLP
CSLP-24WBR-WP WGESB24-75PWRLP
CSLP-24WBW-WP WGESB24-75PWWLP
CSLP-24WGR-WP WGESG24-75PWRLP
CSLP-24WGW-WP WGESG24-75PWWLP
CSLP-24WRR-WP WGESR24-75PWRLP
CSLP-24WRW-WP WGESR24-75PWWLP
CHS-24WAR-WP WGECA24-75PWR
CHS-24WAW-WP WGECA24-75PWW
CHS-24WBR-WP WGECB24-75PWR
CHS-24WBW-WP WGECB24-75PWW
CHS-24WGR-WP WGECG24-75PWR
CHS-24WGW-WP WGECG24-75PWW
CHS-24WRR-WP WGECR24-75PWR
CHS-24WRW-WP WGECR24-75PWW
CHSLP-24WAR-WP WGECA24-75PWRLP
CHSLP-24WAW-WP WGECA24-75PWWLP
CHSLP-24WBR-WP WGECB24-75PWRLP
CHSLP-24WBW-WP WGECB24-75PWWLP
CHSLP-24WGR-WP WGECG24-75PWRLP
CHSLP-24WGW-WP WGECG24-75PWWLP
CHSLP-24WRR-WP WGECR24-75PWRLP
CHSLP-24WRW-WP WGECR24-75PWWLP

References

  1. ↑ "Gentex ST/HS Series" (GX060697-9). Gentex.
  2. ↑ https://forums.thefirepanel.com/t/gentex-led-commander-5-signals/12464/3
  3. ↑ "Gentex GE Series" (GEC0601-1). Gentex.
  4. ↑ "Gentex GE Series" (GEC0601-5). Gentex.
  5. ↑ "Gentex GE3 Series" (GE30201-4). Gentex.
  6. ↑ "GES3 / GEC3 Colored Lens Series" (551-0045-04). Gentex.
  7. ↑ "Gentex GC Series" (GC010102-2). Gentex.
  8. ↑ "GCS / GCC Colored Lens Series" (551-0043-05). Gentex.
  9. ↑ "WGES / WGEC Series" (551-0047-04). Gentex.
  10. ↑ "WGES / WGEC Colored Lens Series" (551-0044-03). Gentex.
  11. ↑ "HSG1 Series Horn Frequency Evacuation Signals" (HFS-0093). Harrington Signal Inc. (February 18, 2013).
  12. ↑ "SSG3 & HSG3 Series Strobe/Horn Strobe" (HFS-0094). Harrington Signal Inc. (April 5, 2011).
  13. ↑ "WS & WHS Series Weatherproof Commander Series Evacuation Signals" (HFS-0198). Harrington Signal Inc. (August 29, 2011).
  14. ↑ "EH24 Series" (8830053). Potter (June 2013).
  15. ↑ "S-24 & HS-24" (8830054). Potter (May 2024).
  16. ↑ "S24-177/HS24-177" (8830066). Potter (August 2017).
  17. ↑ "S/HS-WP Series" (8830057). Potter (March 2015).
  18. ↑ "CS/CHS" (8830051). Potter (June 2013).
  19. ↑ "CS-24 & CHS-24" (8830055). Potter (October 2014).
  20. ↑ "CCS/CCHS-24" (8830052). Potter (October 2014).
  21. ↑ "CS/CHS-WP Series" (8830058). Potter (January 2015).
Retrieved from "https://wiki.thefirepanel.com/index.php?title=Gentex_Commander_series&oldid=3421"
