Bosch G-Series
Not to be confused with the Bosch/Radionics 7000/9000 series.

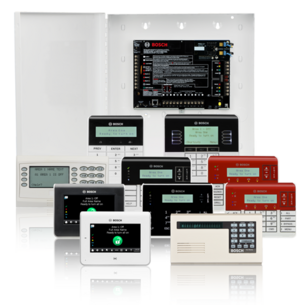

The Bosch G-Series is a series of control panels from Bosch that is capable of doing Intrusion, Fire Alarm, Access Control, and Mass Notification. They are the larger version of the the B-Series. These panels are UL listed for Residential Fire, Residential Burg, Commercial Fire, Commercial Burg, Access Control, and more recently, mass notification. The Bosch G-Series is compatible with all the same burglary keypads as the Bosch B-Series.
Features
The Bosch G-Series includes all the same features as the B-Series along with (but not limited to) the following
- SDI, POPEX, and ZONEX support for replacing 7000/9000 series panels
- Access/Door Control
Programming
A Bosch D5370-USB Security Dongle is required to program G-Series panel through Bosch Remote Programming Software (RPS). these dongles can be found online for about $300. The G-Series has very limited keypad programming. The panel can be programmed locally using the onboard-USB port, or the onboard ethernet port, or remotely over Bosch Cloud Services, IP, Cellular, or a modem over the PSTN.
Models
-E (No onboard ethernet port) prefix applies to all models. If an onboard ethernet port does not apply to your application, then these models are slightly cheaper then the normal models.
| Model | Conventional Points | Addressable/Wireless Points | Areas | Users (Passcodes) | Custom Functions | Maximum amount Supervised SDI and SDI2 Keypads (shared) | Released | Replaces | Recommended for
(All panels are Commercial and Residential UL Listed) |
|---|---|---|---|---|---|---|---|---|---|
| B8512G | 99 | Any combo of addersable and conveintal points | 8 | 500 | 8 | 16 | circa 2014-2016 | D7412G, D7412GV2, D7412GV3, D7412GV4 | Enterprise Systems |
| B8612G | No information | No information | No information | No information | No information | No information | Not released | Not released | No information |
| B9512G | 599 | 591 | 32 | 2000 | 32 | 32 | circa 2014-2016 | D9412G, D9124G, D9412GV2, D9412GV3, D9412GV4 | Complex Systems |
| B9612G | No information | No information | No information | No information | No information | No information | Not released | Not released | No information |
As of February 2024, the only released G-Series panels are the B8512G, and the B9512G. Although references to a Bosch B8612G and B9612G are made in the datasheet for the Bosch B926M mass notification keypad[1]. There are no other known references to these panels on the internet.
References
- ↑ B926M Mass notification keypad, SDI2 https://resources-boschsecurity-cdn.azureedge.net/public/documents/B926M_Data_sheet_enUS_119852283019.pdf
