Edwards Integrity series

From The Fire Panel
Integrity series
Manufacturer

Edwards Systems Technology Corporation {"label": "Manufacturer", "field": "Edwards Systems Technology Corporation"}

Color(s)
Red
White
{"label": "Color(s)", "field": "
Red
White
"}
Introduced

1996 {"label": "Introduced", "field": "1996"}

Preceded by

Edwards Pre-Integrity Series {"label": "Preceded by", "field": "Edwards Pre-Integrity Series"}

Succeeded by

Edwards Genesis series {"label": "Succeeded by", "field": "Edwards Genesis series"}

{
    "rows": [],
    "title": "Integrity series",
    "images": []
}

The Edwards Integrity series is a series of notification appliances.

History

The Integrity series was released in 1996. There is a vertical strobe in the middle much like the Wheelock MT Horn/Strobes made from the 90s up to the early 2000s. The series began with Horns that sound like the Pre Integrity and Speaker/Strobes. At this time, an indication with black numbers and letters under the strobe reflector would be used to indicate the candela. The Horn/Strobes could only do continuous.

In 1997, the Horn/Strobes got replaced with a Higher Pitched temporal Horn/Strobe and chime strobes were also introduced around this time.

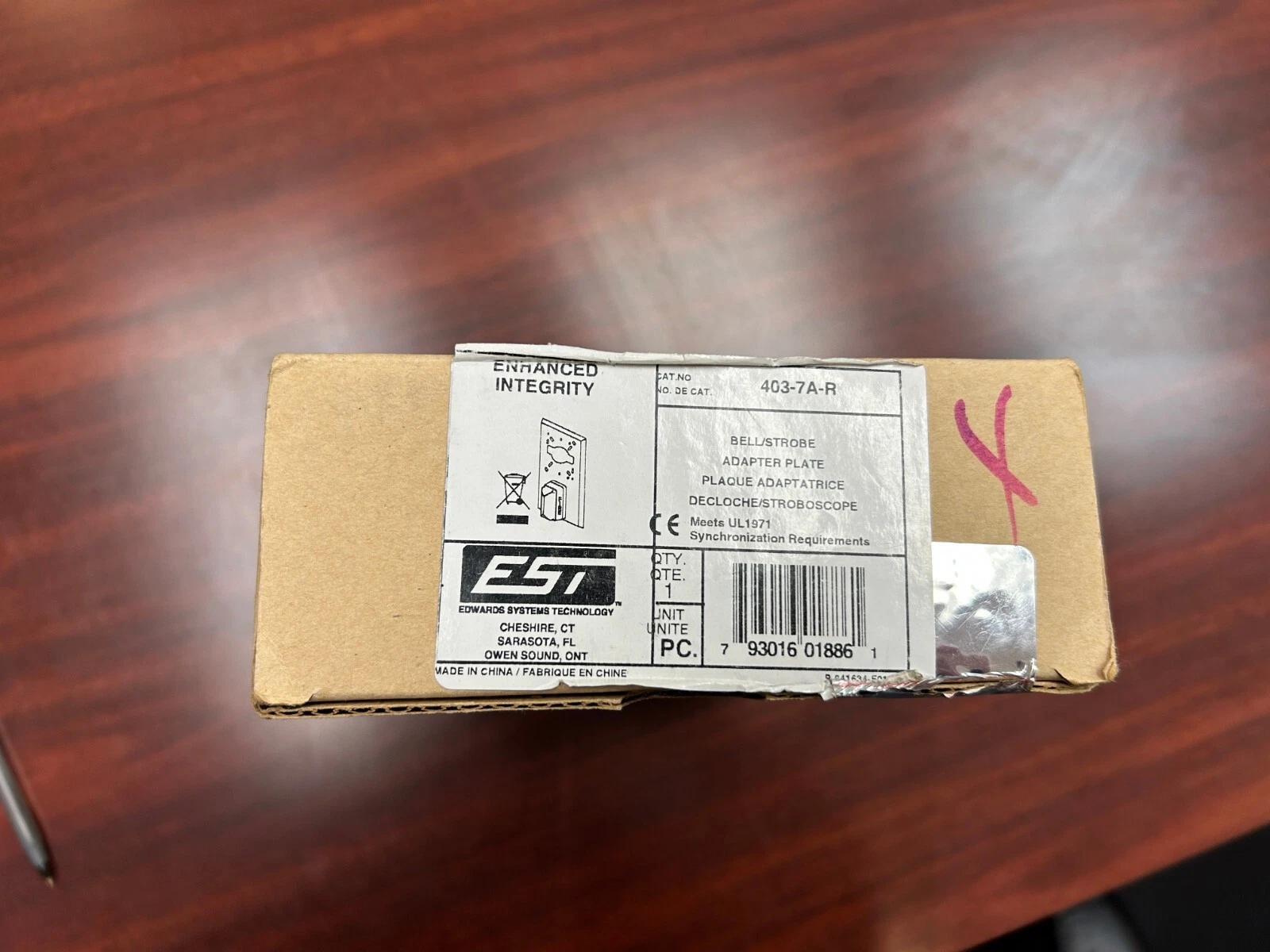

In late 2001, the Enhanced Integrity was released making it capable to sync with other Enhanced Integrities and Genesis devices. This changed the color of the candela indicator font from black to red.

Edwards also makes RS Series Speakers, Ceiling Mount Integrities & Retrofit Strobe Plates. The series includes a lineup of 757, 202, 405, 964, 965 & 403 Models. Strobe candela options were represented by 3A, 4A, 5A, 6A, 7A & 8A models.

Models

Strobes

Model Candela Color Strobe Lens Color Voltage Replaced Replaced by
202-5A-001 15 Red Clear 24VDC
202-7A-001[1] 15/75 Red Clear 24VDC 202-7A-T
202-3A-001 30 Red Clear 24VDC
202-8A-001[2] 110 Red Clear 24VDC 202-8A-T
202-5A-101 15 White Clear 24VDC
202-7A-101 15/75 White Clear 24VDC
202-3A-101 30 White Clear 24VDC
202-8A-101[3] 110 White Clear 24VDC
202-5A-T[4] 15 Red Clear 24VDC G1R-V15
202-7A-T[5][6] 15/75 Red Clear 24VDC Still in production
202-3A-T[7] 30 Red Clear 24VDC G1R-V30
202-6A-T[8] 60 Red Clear 24VDC G1R-V60
202-4A-T 75 Red Clear 24VDC

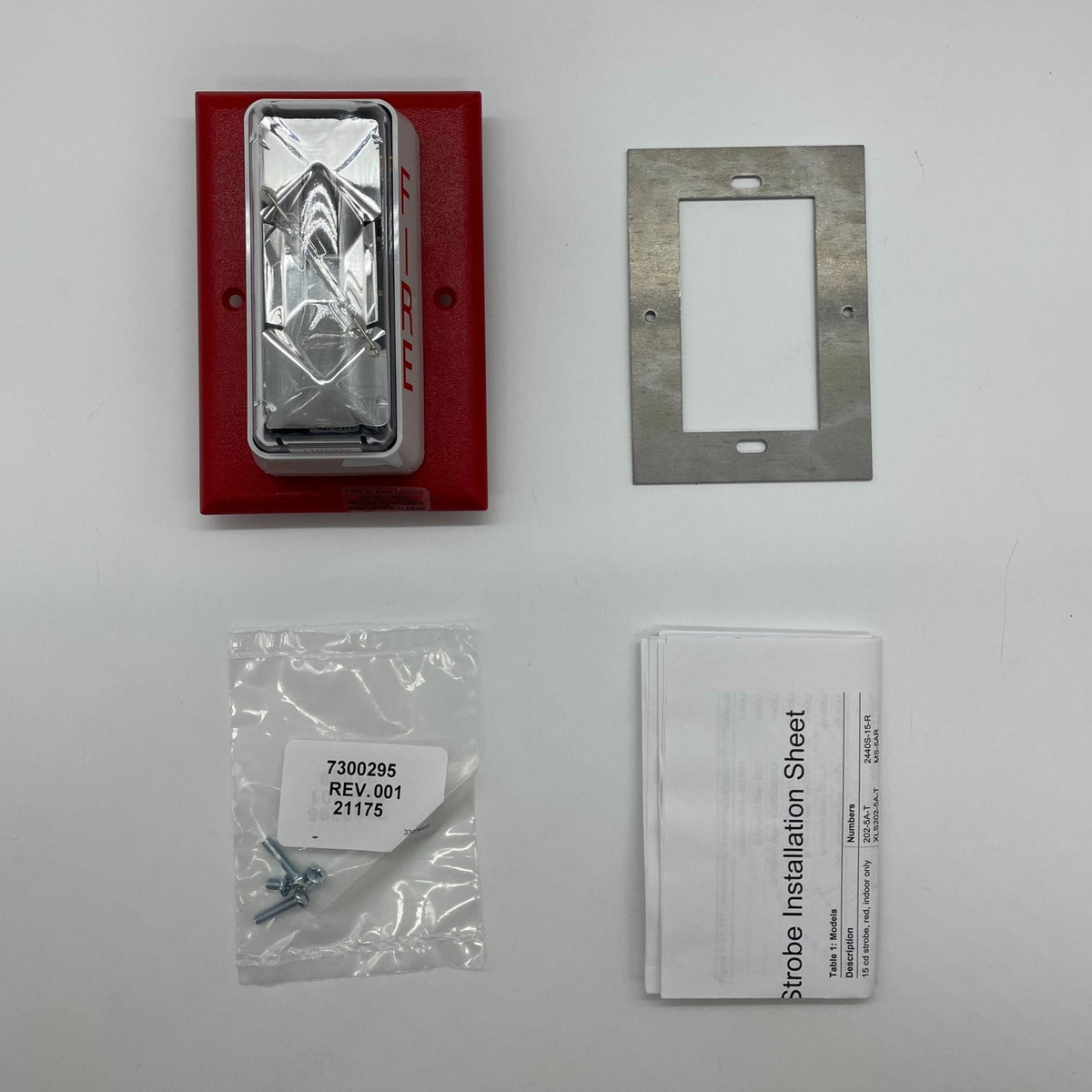

202-8A-T[9] 110 Red Clear 24VDC Still in production
202-5A-TW 15 White Clear 24VDC G1-V15
202-7A-TW[10] 15/75 White Clear 24VDC Still in production
202-3A-TW 30 White Clear 24VDC G1-V30
202-6A-TW[11] 60 White Clear 24VDC
202-4A-TW 75 White Clear 24VDC

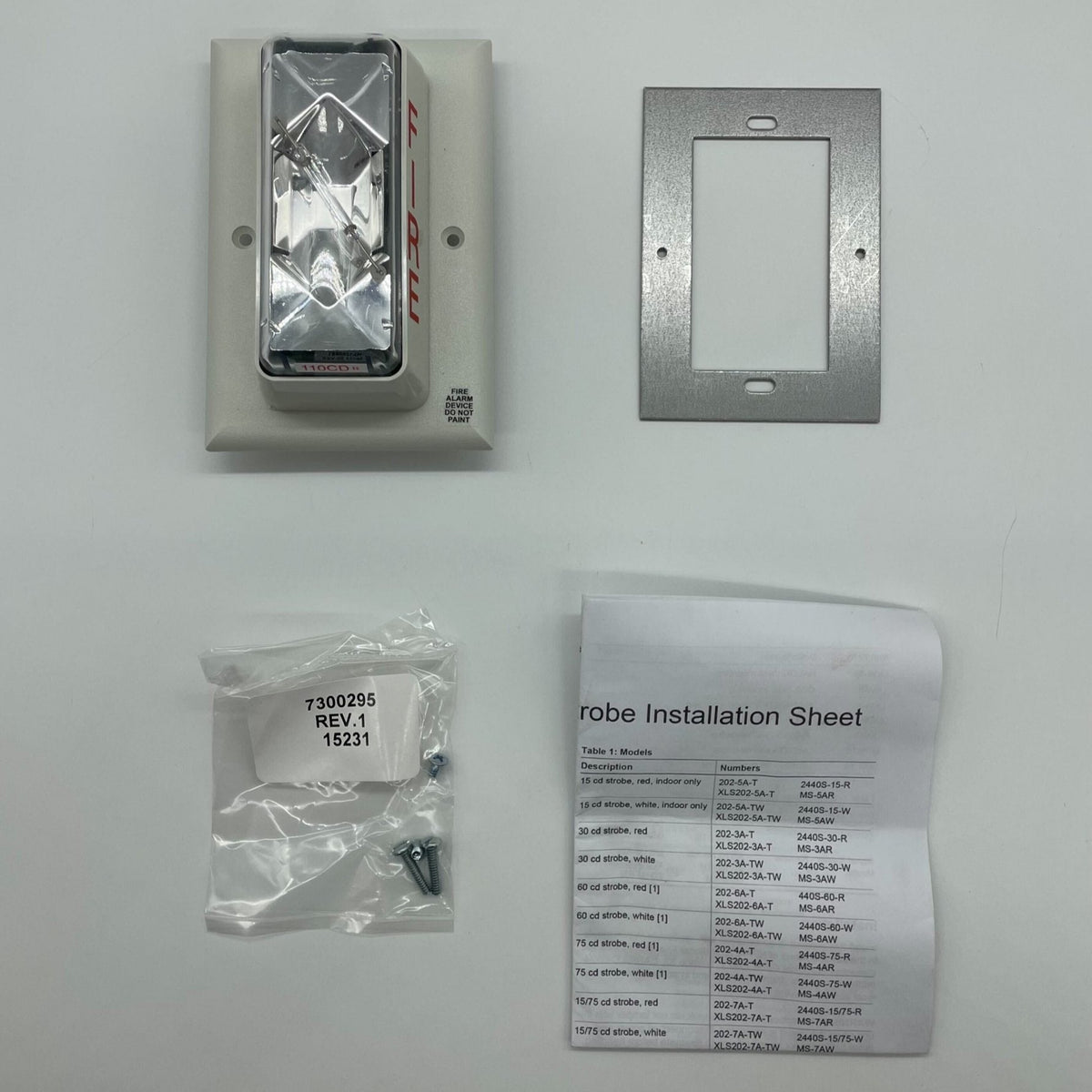

202-8A-TW[12] 110 White Clear 24VDC Still in production
202-15PS[13] 15 Red Clear 24VDC G1R-V15
202-75PS[14] 75 Red Clear 24VDC G1R-V75
405-7A-R 15/75 Red Clear 24VDC 405-7A-T
405-5A-T[15][16] 15 Red Clear 24VDC
405-7A-T[17] 15/75 Red Clear 24VDC
405-3A-T[18] 30 Red Clear 24VDC
405-6A-T[19] 60 Red Clear 24VDC
405-8A-T[20] 110 Red Clear 24VDC
405-5A-TW[21] 15 White Clear 24VDC
405-7A-TW[22] 15/75 White Clear 24VDC
405-3A-TW 30 White Clear 24VDC
405-6A-TW 60 White Clear 24VDC
405-8A-TW[23] 110 White Clear 24VDC
CS405-7A-T[24] 15/75 Red Clear 24VDC
CS405-8A-T[25] 110 Red Clear 24VDC
CS405-7A-TW 15/75 White Clear 24VDC
CS405-8A-TW 110 White Clear 24VDC
202-8A-TR 110 Red Red 24VDC
203-8A-T 110 Red Clear 120VAC
203-8A-TW 110 White Clear 120VAC
89SMSTRC-AQ 150 Grey Clear 24V AC/DC
89SMSTRA-AQ 90 Grey Amber 24V AC/DC
89SMSTRG-AQ 70 Grey Green 24V AC/DC
89SMSTRR-AQ 21 Grey Red 24V AC/DC
89SMSTRB-AQ 20 Grey Blue 24V AC/DC
89SMSTRC-N5 150 Grey Clear 120VAC
89SMSTRA-N5 90 Grey Amber 120VAC
89SMSTRG-N5 70 Grey Green 120VAC
89SMSTRR-N5 21 Grey Red 120VAC
89SMSTRB-N5 20 Grey Blue 120VAC
89STRC-AQ 150 Grey Clear 24VDC
89STRA-AQ 90 Grey Amber 24VDC
89STRG-AQ 70 Grey Green 24VDC
89STRR-AQ 21 Grey Red 24VDC
89STRB-AQ 20 Grey Blue 24VDC
89STRC-N5 150 Grey Clear 120VAC
89STRA-N5 90 Grey Amber 120VAC
89STRG-N5 70 Grey Green 120VAC
89STRR-N5 21 Grey Red 120VAC
89STRB-N5 20 Grey Blue 120VAC

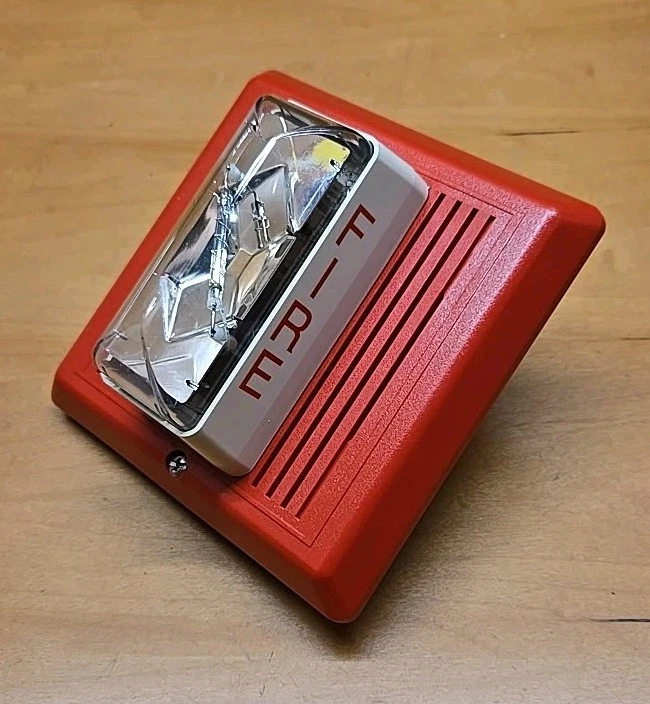

Horn/Strobes

Model Candela Coding Color Strobe Lens Color Replaced Replaced by
757-5A-HS[26] 15 Steady Red Clear 792-5A-006 757-5A-T
757-7A-HS[27] 15/75 Steady Red Clear 792-7A-006 757-7A-T
757-3A-HS 30 Steady Red Clear 792-3A-006 757-3A-T
757-8A-HS 110 Steady Red Clear 792-8A-006 757-8A-T
757-5A-HSW 15 Steady White Clear 792-5A-006 757-5A-TW
757-7A-HSW 15/75 Steady White Clear 792-7A-006 757-7A-TW
757-3A-HSW 30 Steady White Clear 792-3A-006 757-3A-TW
757-8A-HSW 110 Steady White Clear 792-8A-006 757-8A-TW

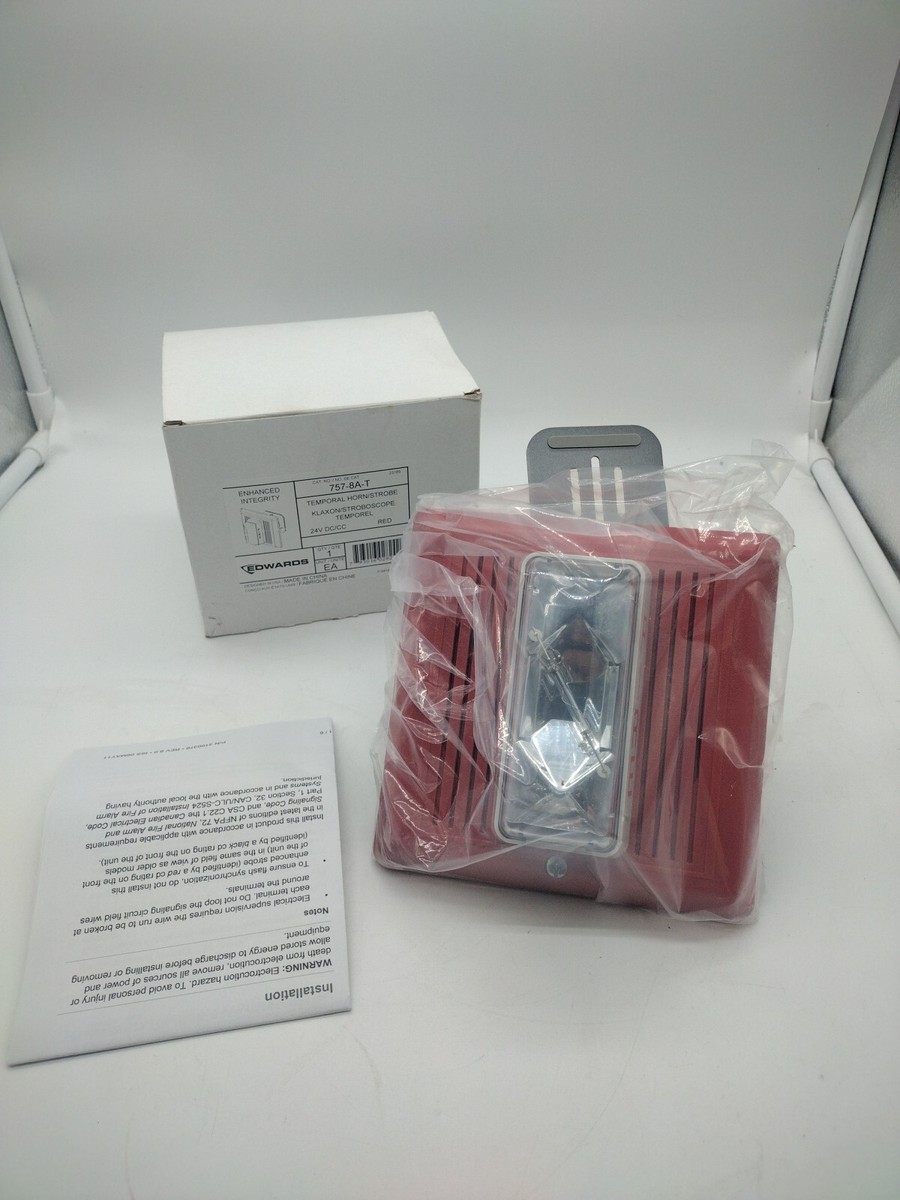

757-5A-T[28][29] 15 Temporal Red Clear 757H-15PS
757-5A-HS 		Still in production[30]
757-7A-T[31] 15/75 Temporal Red Clear 757-7A-HS Still in production
757-3A-T[32] 30 Temporal Red Clear 757-3A-HS Still in production
757-4A-T[33] 75 Temporal Red Clear 757H-75PS Still in production
757-8A-T[34] 110 Temporal Red Clear 757-8A-HS Still in production
757-5A-TW[35] 15 Temporal White Clear Still in production
757-7A-TW[36] 15/75 Temporal White Clear Still in production
757-3A-TW[37] 30 Temporal White Clear Still in production
757-4A-TW 75 Temporal White Clear Still in production
757-8A-TW[38] 110 Temporal White Clear Still in production
757H-15PS[39] 15 Temporal Red (Powersaver) Clear 757-5A-T
G1R-HV15 + G1RT-FIRE
757H-75PS[40] 75 Temporal Red (Powersaver) Clear 757-4A-T
G1R-HV75 + G1RT-FIRE
757H-15PSW 15 Temporal White (Powersaver) Clear 757-5A-T
G1-HV15 + G1T-FIRE
757H-75PSW 75 Temporal White (Powersaver) Clear 757-4A-T
G1-HV75 + G1T-FIRE
867STRC-AQ[41] 150 Steady Grey Clear 24V AC/DC

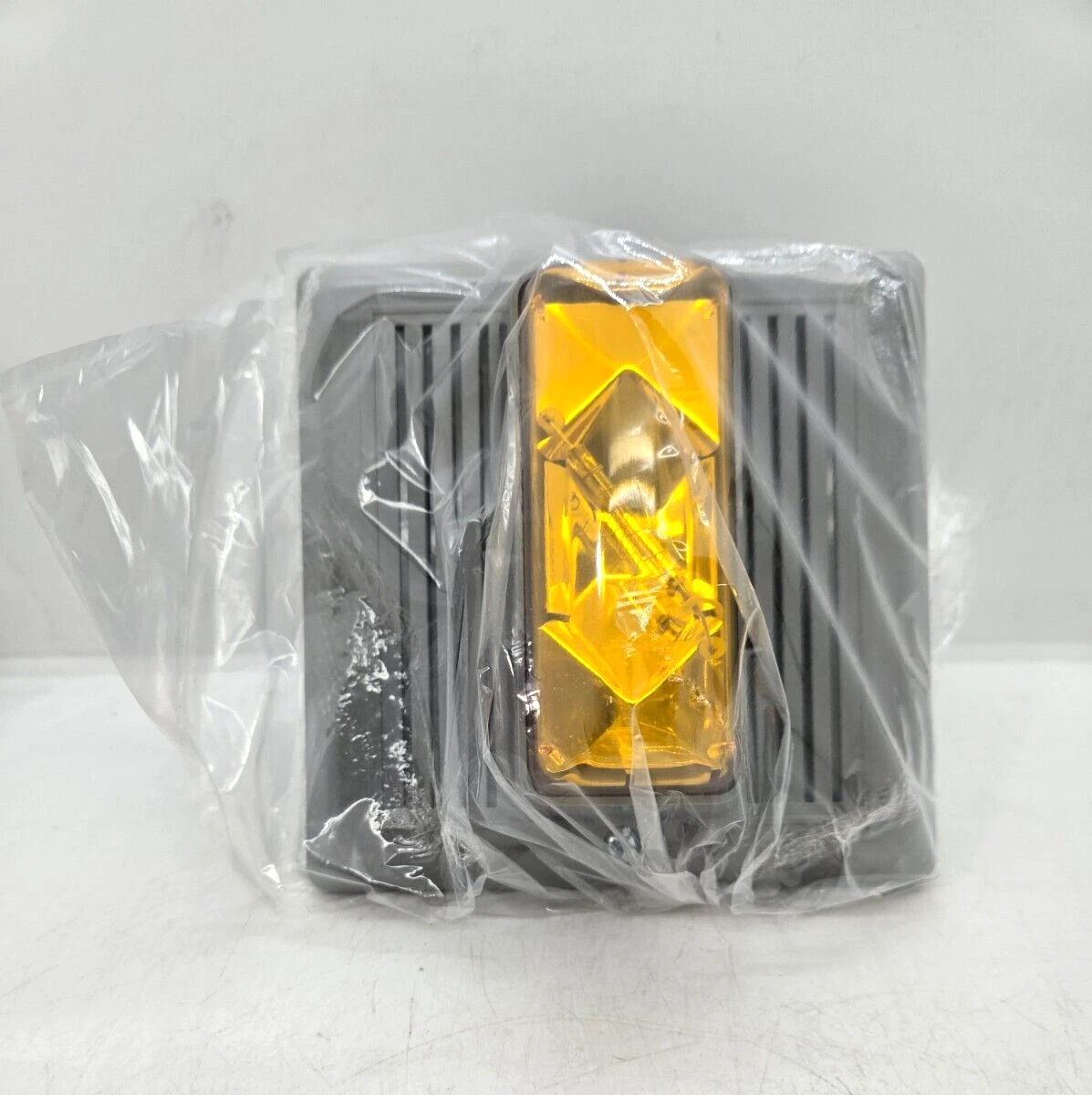

867STRA-AQ 90 Steady Grey Amber 24V AC/DC
867STRG-AQ 70 Steady Grey Green 24V AC/DC
867STRR-AQ 21 Steady Grey Red 24V AC/DC
867STRB-AQ 20 Steady Grey Blue 24V AC/DC
867STRC-N5 150 Steady Grey Clear 120VAC

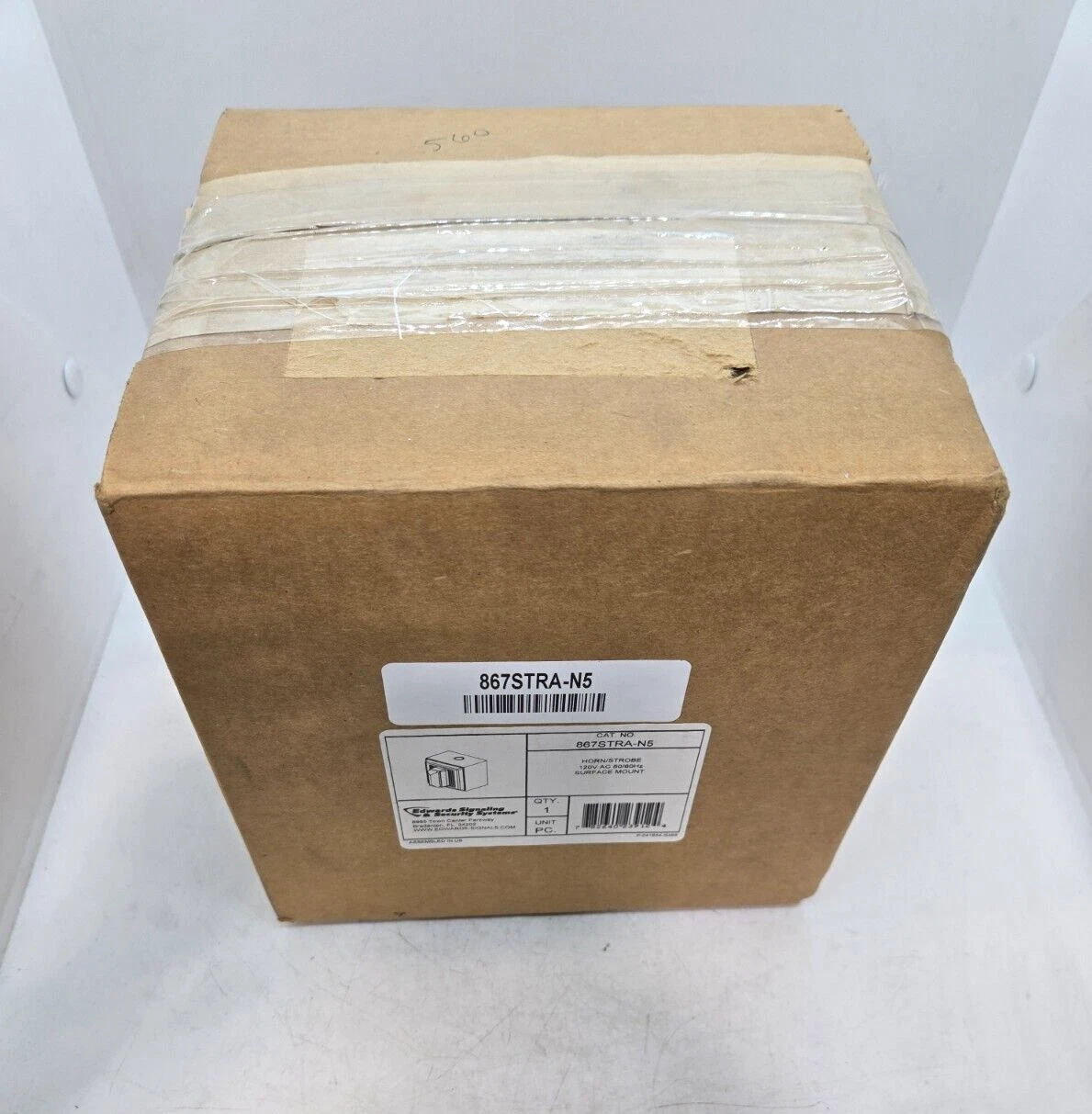

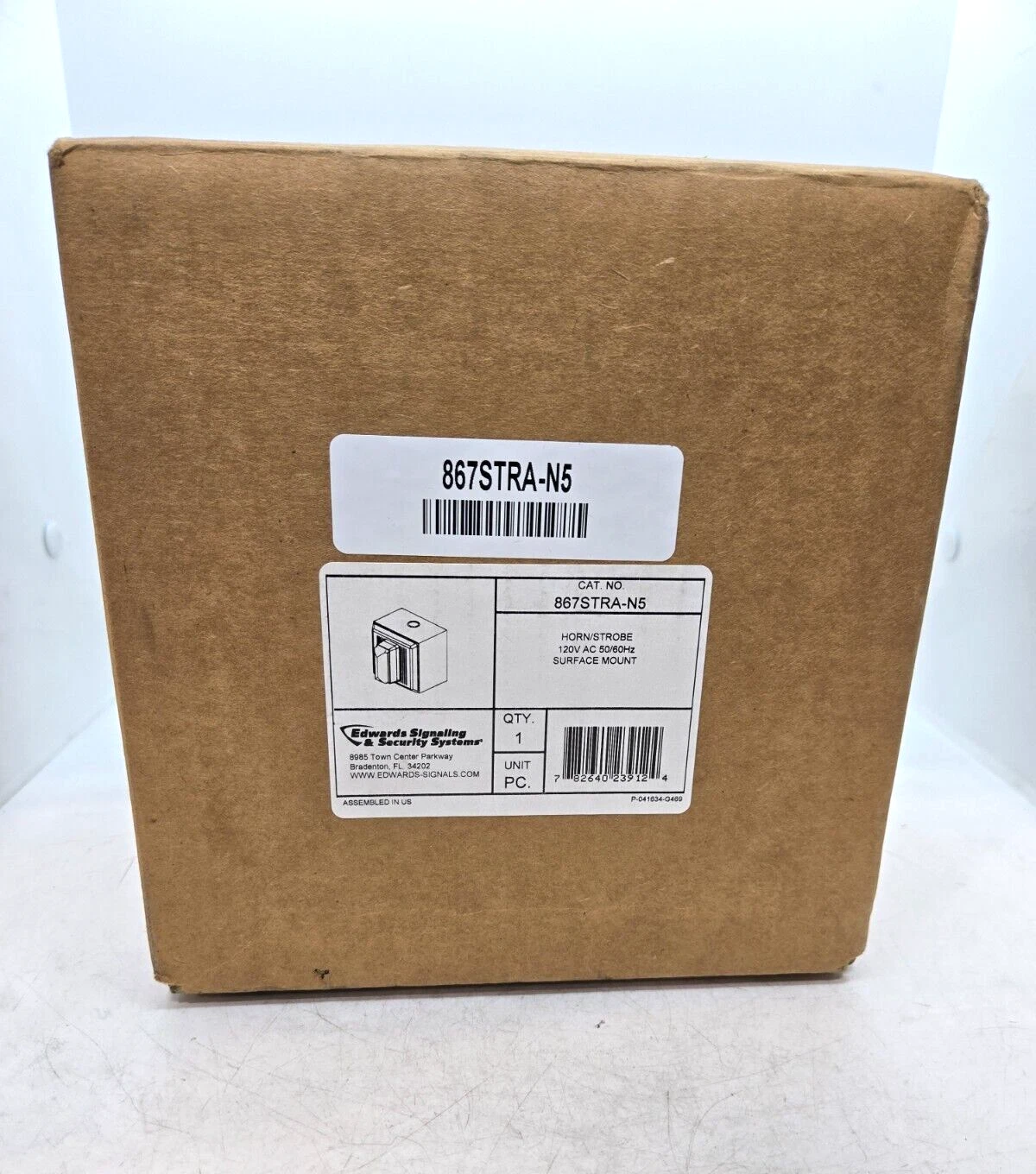

867STRA-N5[42][43][44][45][46][47][48] 90 Steady Grey Amber 120VAC
867STRG-N5 70 Steady Grey Green 120VAC
867STRR-N5 21 Steady Grey Red 120VAC
867STRB-N5 20 Steady Grey Blue 120VAC
868STRC-AQ 150 Steady Grey Clear 24V AC/DC
868STRA-AQ 90 Steady Grey Amber 24V AC/DC
868STRG-AQ 70 Steady Grey Green 24V AC/DC
868STRR-AQ 21 Steady Grey Red 24V AC/DC
868STRB-AQ 20 Steady Grey Blue 24V AC/DC
868STRC-N5 150 Steady Grey Clear 120VAC
868STRA-N5 90 Steady Grey Amber 120VAC
868STRG-N5 70 Steady Grey Green 120VAC
868STRR-N5 21 Steady Grey Red 120VAC
868STRB-N5 20 Steady Grey Blue 120VAC
869STRC-AQ 150 Steady Grey Clear 24V AC/DC
869STRA-AQ 90 Steady Grey Amber 24V AC/DC
869STRG-AQ 70 Steady Grey Green 24V AC/DC
869STRR-AQ 21 Steady Grey Red 24V AC/DC
869STRB-AQ 20 Steady Grey Blue 24V AC/DC
869STRC-N5 150 Steady Grey Clear 120VAC
869STRA-N5 90 Steady Grey Amber 120VAC
869STRG-N5 70 Steady Grey Green 120VAC
869STRR-N5 21 Steady Grey Red 120VAC
869STRB-N5 20 Steady Grey Blue 120VAC
869DSTRC-G1 150 Temporal Grey Clear 24VDC
869DSTRA-G1 90 Temporal Grey Amber 24VDC
869DSTRG-G1 70 Temporal Grey Green 24VDC
869DSTRR-G1 21 Temporal Grey Red 24VDC
869DSTRB-G1 20 Temporal Grey Blue 24VDC

Speaker/Strobes

Model Candela Volts RMS Color Mounting Replaced Replaced by
757-5A-SS25[49][50] 15 25 Red Wall Still in production
757-7A-SS25[51] 15/75 25 Red Wall Still in production
757-3A-SS25 30 25 Red Wall Still in production
757-4A-SS25 75 25 Red Wall G4RF-S2VM
757-8A-SS25[52] 110 25 Red Wall Still in production
757-5A-SS25W 15 25 White Wall Still in production
757-7A-SS25W[53] 15/75 25 White Wall Still in production
757-3A-SS25W 30 25 White Wall Still in production
757-4A-SS25W 75 25 White Wall G4F-S2VM
757-8A-SS25W[54] 110 25 White Wall Still in production
757-5A-SS70 15 70 Red Wall Still in production
757-7A-SS70[55] 15/75 70 Red Wall Still in production
757-3A-SS70[56] 30 70 Red Wall Still in production
757-4A-SS70 75 70 Red Wall G4RF-S7VM
757-8A-SS70[57] 110 70 Red Wall Still in production
757-5A-SS70W[58] 15 70 White Wall Still in production
757-7A-SS70W[59] 15/75 70 White Wall Still in production
757-3A-SS70W 30 70 White Wall Still in production
757-4A-SS70W 75 70 White Wall G4F-S7VM
757-8A-SS70W 110 70 White Wall Still in production
757-7A-RS25[60][61] 15/75 25 Red Wall Still in production
757-3A-RS25[62] 30 25 Red Wall Still in production
757-4A-RS25 75 25 Red Wall
757-8A-RS25[63] 110 25 Red Wall Still in production
757-7A-RS25W 15/75 25 White Wall Still in production
757-3A-RS25W 30 25 White Wall Still in production
757-4A-RS25W 75 25 White Wall
757-8A-RS25W[64] 110 25 White Wall Still in production
757-7A-RS70[65] 15/75 70 Red Wall Still in production
757-3A-RS70[66] 30 70 Red Wall Still in production
757-4A-RS70 75 70 Red Wall
757-8A-RS70[67] 110 70 Red Wall Still in production
757-7A-RS70W[68] 15/75 70 White Wall Still in production
757-3A-RS70W[69] 30 70 White Wall Still in production
757-4A-RS70W 75 70 White Wall
757-8A-RS70W[70] 110 70 White Wall Still in production

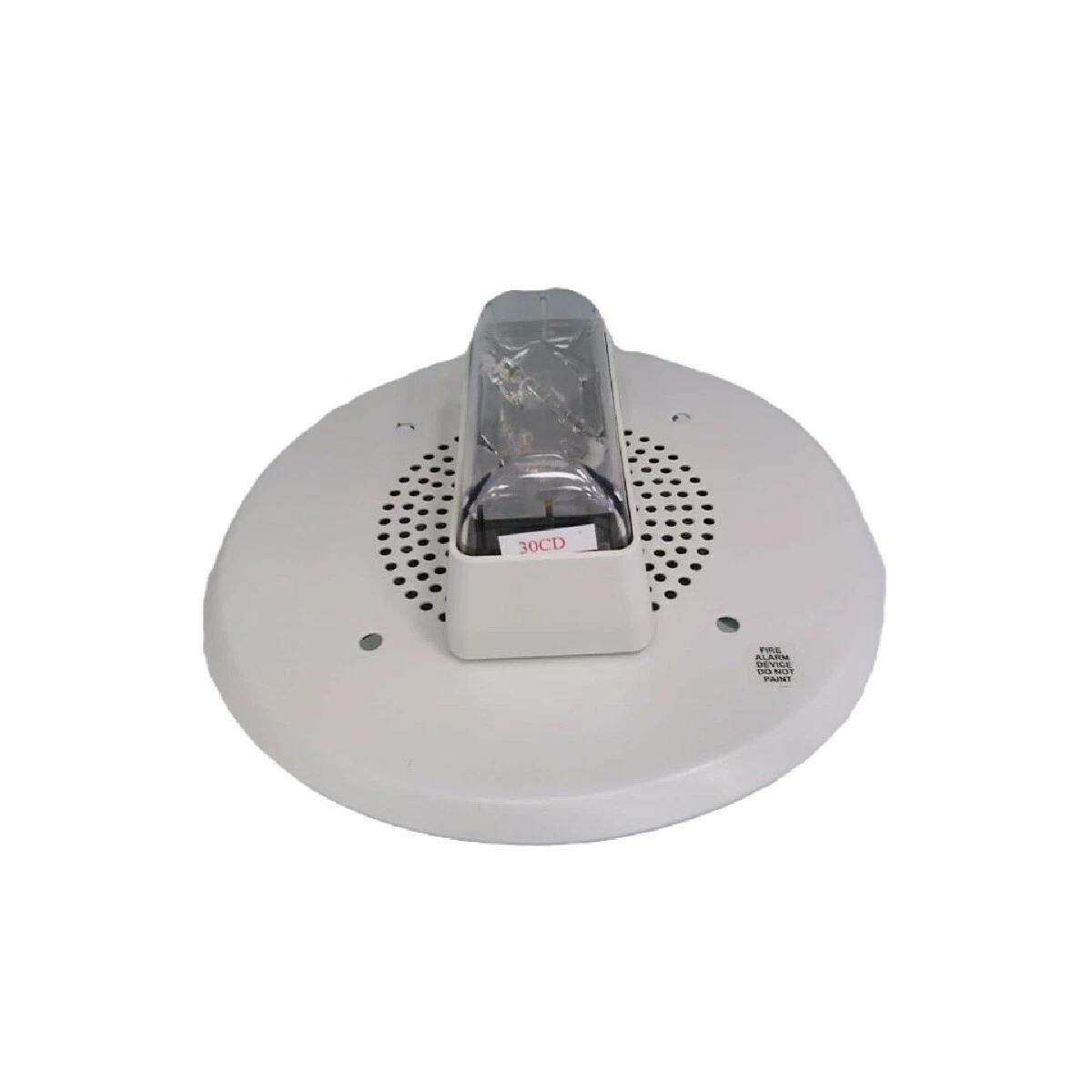

964-5A-4RR 15 25 Red Ceiling
964-7A-4RR 15/75 25 Red Ceiling
964-3A-4RR 30 25 Red Ceiling
964-4A-4RR 75 25 Red Ceiling
964-8A-4RR 110 25 Red Ceiling
964-5A-4RW 15 25 White Ceiling
964-7A-4RW 15/75 25 White Ceiling Still in production
964-3A-4RW 30 25 White Ceiling
964-4A-4RW 75 25 White Ceiling
964-8A-4RW 110 25 White Ceiling Still in production
964-5A-4SR 15 25 Red Ceiling
964-7A-4SR 15/75 25 Red Ceiling
964-3A-4SR 30 25 Red Ceiling
964-4A-4SR 75 25 Red Ceiling
964-8A-4SR 110 25 Red Ceiling
964-5A-4SW 15 25 White Ceiling
964-7A-4SW 15/75 25 White Ceiling
964-3A-4SW 30 25 White Ceiling
964-4A-4SW 75 25 White Ceiling
964-8A-4SW 110 25 White Ceiling
964-5A-8RR 15 25 Red Ceiling
964-7A-8RR 15/75 25 Red Ceiling
964-3A-8RR 30 25 Red Ceiling
964-4A-8RR 75 25 Red Ceiling
964-8A-8RR 110 25 Red Ceiling
964-5A-8RW 15 25 White Ceiling
964-7A-8RW 15/75 25 White Ceiling
964-3A-8RW 30 25 White Ceiling
964-4A-8RW 75 25 White Ceiling
964-8A-8RW 110 25 White Ceiling
964-5A-8SR 15 25 Red Ceiling
964-7A-8SR 15/75 25 Red Ceiling
964-3A-8SR 30 25 Red Ceiling
964-4A-8SR 75 25 Red Ceiling
964-8A-8SR 110 25 Red Ceiling
964-5A-8SW 15 25 White Ceiling
964-7A-8SW 15/75 25 White Ceiling
964-3A-8SW 30 25 White Ceiling
964-4A-8SW 75 25 White Ceiling
964-8A-8SW 110 25 White Ceiling
965-5A-4RR 15 70 Red Ceiling
965-7A-4RR 15/75 70 Red Ceiling
965-3A-4RR 30 70 Red Ceiling
965-4A-4RR 75 70 White Ceiling

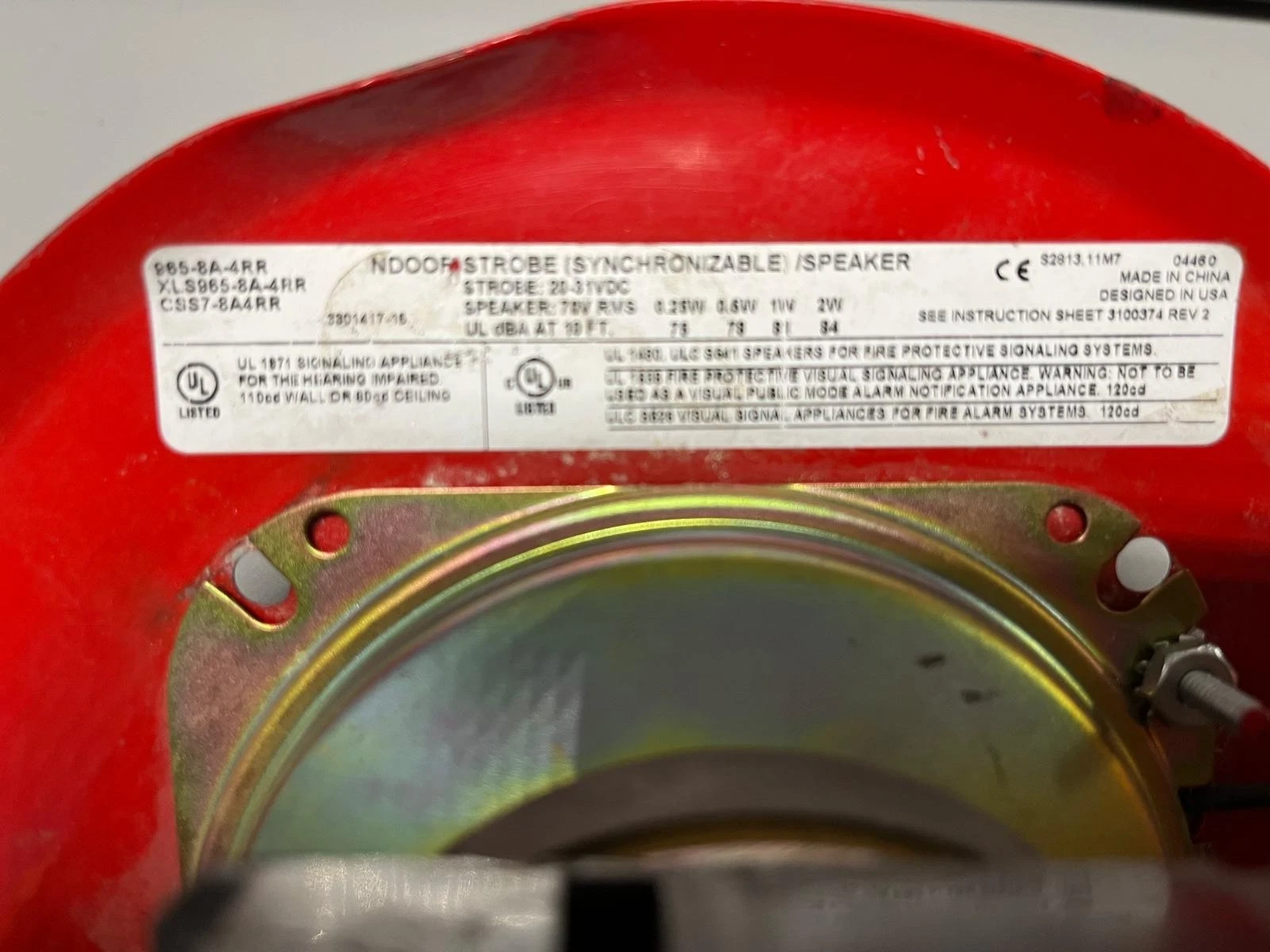

965-8A-4RR[71][72][73] 110 70 Red Ceiling
965-5A-4RW[74] 15 70 White Ceiling Still in production
965-7A-4RW[75] 15/75 70 White Ceiling Still in production
965-3A-4RW[76] 30 70 White Ceiling Still in production
965-4A-4RW 75 70 White Ceiling
965-8A-4RW[77][78] 110 70 White Ceiling Still in production
965-5A-4SR 15 70 Red Ceiling
965-7A-4SR 15/75 70 Red Ceiling
965-3A-4SR 30 70 Red Ceiling
965-4A-4SR 75 70 Red Ceiling
965-8A-4SR 110 70 Red Ceiling
965-5A-4SW 15 70 White Ceiling
965-7A-4SW 15/75 70 White Ceiling
965-3A-4SW 30 70 White Ceiling
965-4A-4SW 75 70 White Ceiling
965-8A-4SW 110 70 White Ceiling
965-5A-8RR 15 70 Red Ceiling
965-7A-8RR 15/75 70 Red Ceiling
965-3A-8RR 30 70 Red Ceiling
965-4A-8RR 75 70 Red Ceiling
965-8A-8RR 110 70 Red Ceiling
965-5A-8RW 15 70 White Ceiling
965-7A-8RW 15/75 70 White Ceiling
965-3A-8RW 30 70 White Ceiling
965-4A-8RW 75 70 White Ceiling
965-8A-8RW 110 70 White Ceiling
965-5A-8SR 15 70 Red Ceiling
965-7A-8SR 15/75 70 Red Ceiling
965-3A-8SR 30 70 Red Ceiling
965-4A-8SR 75 70 Red Ceiling
965-8A-8SR 110 70 Red Ceiling
965-5A-8SW 15 70 White Ceiling Still in production
965-7A-8SW 15/75 70 White Ceiling Still in production
965-3A-8SW 30 70 White Ceiling Still in production
965-4A-8SW 75 70 White Ceiling
965-8A-8SW 110 70 White Ceiling Still in production
757S2-15PS 15 25 Red Wall (Powersaver) G4RF-S2VM
757S2-75PS 75 25 Red Wall (Powersaver) G4RF-S2VM
757S7-15PS 15 70 Red Wall (Powersaver) G4RF-S7VM
757S7-75PS 75 70 Red Wall (Powersaver) G4RF-S7VM

Chime/Strobes

Model Candela Color Replaced Replaced by
757-5A-CS 15 Red G1RF-CVM + G1RT

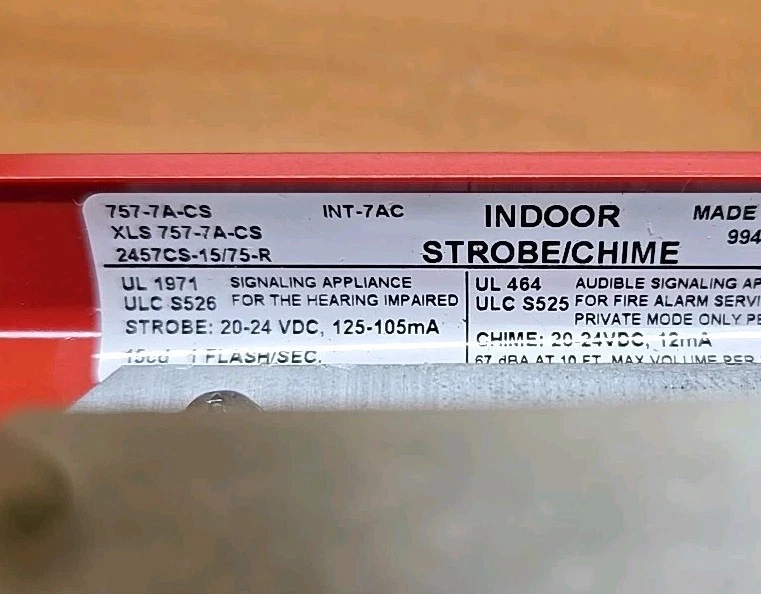

757-7A-CS[79][80][81][82][83][84] 15/75 Red G1RF-CV1575 + G1RT
757-3A-CS 30 Red G1RF-CVM + G1RT
757-8A-CS 110 Red G1RF-CVM + G1RT
757-5A-CSW 15 White G1F-CVM + G1T
757-7A-CSW 15/75 White G1F-CVM + G1T
757-3A-CSW 30 White G1F-CVM + G1T
757-8A-CSW 110 White G1F-CVM + G1T

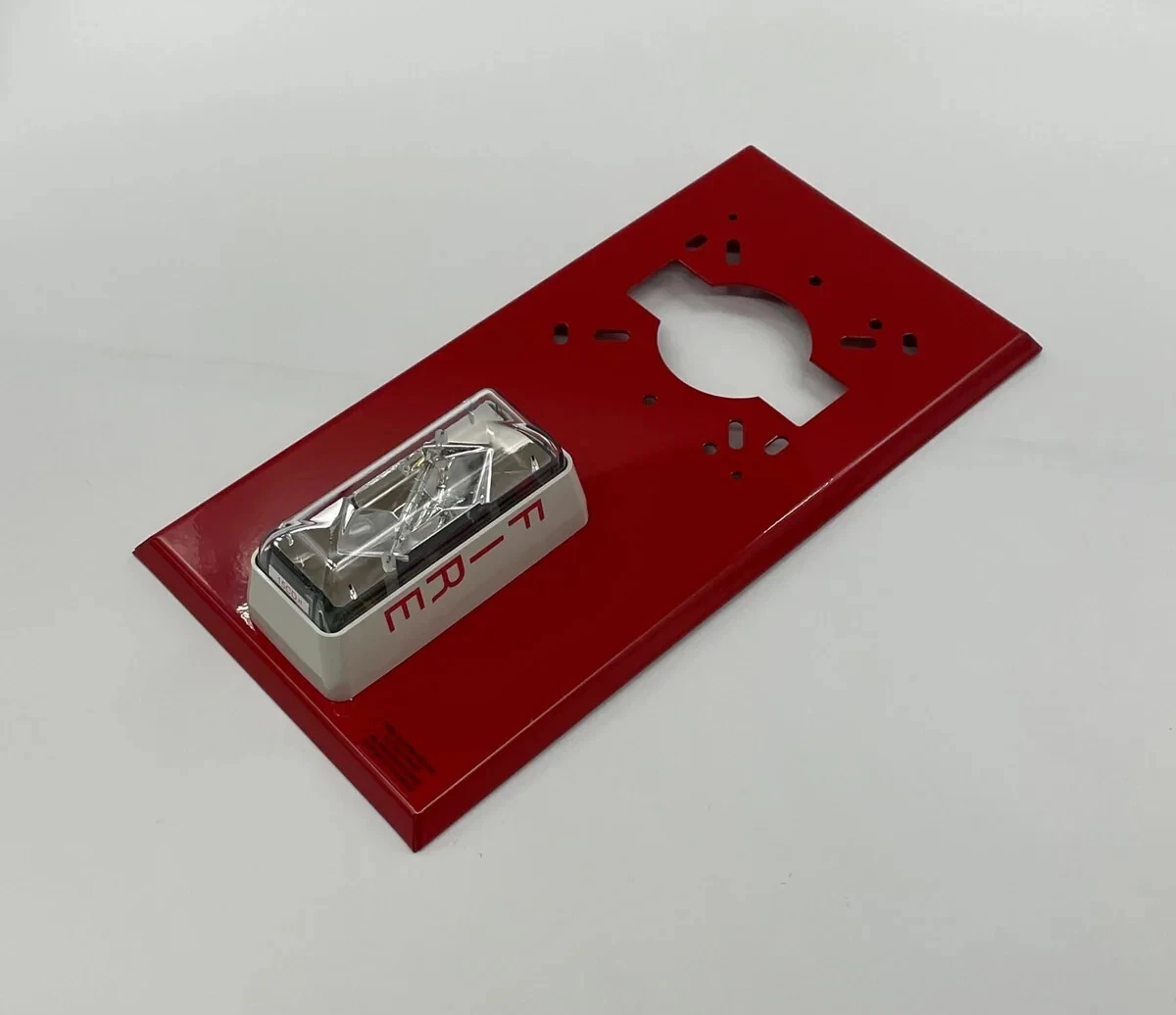

Retrofit Strobe Plates

Model Candela Color

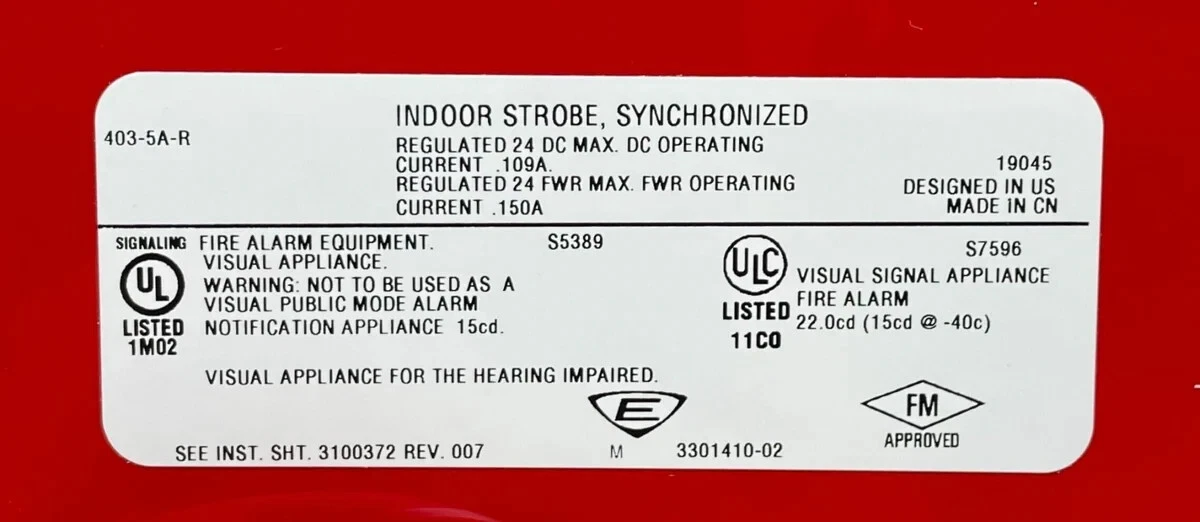

403-5A-R[85][86][87][88][89] 15 Red
403-7A-R[90][91] 15/75 Red

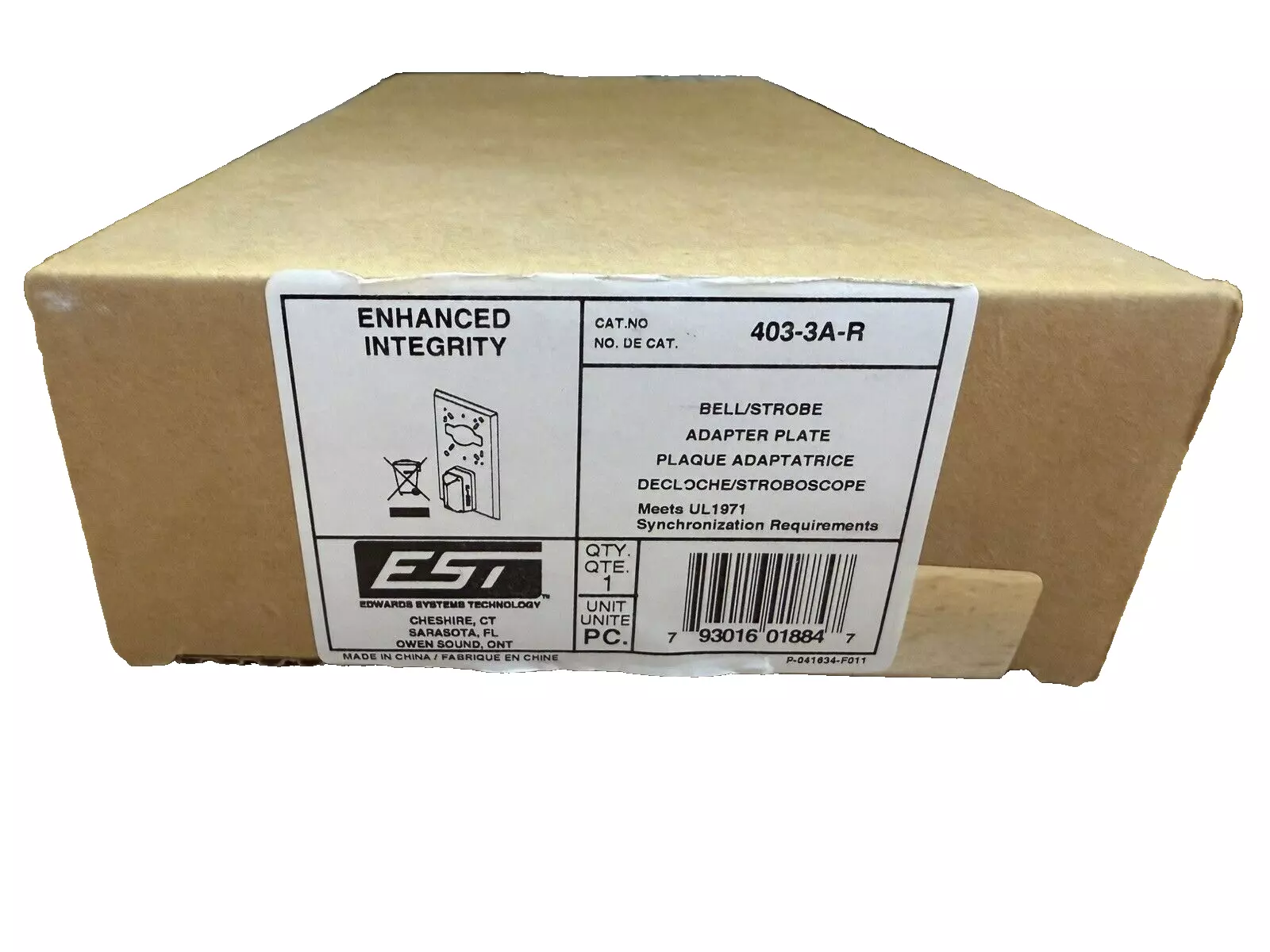

403-3A-R[92] 30 Red
403-4A-R 75 Red

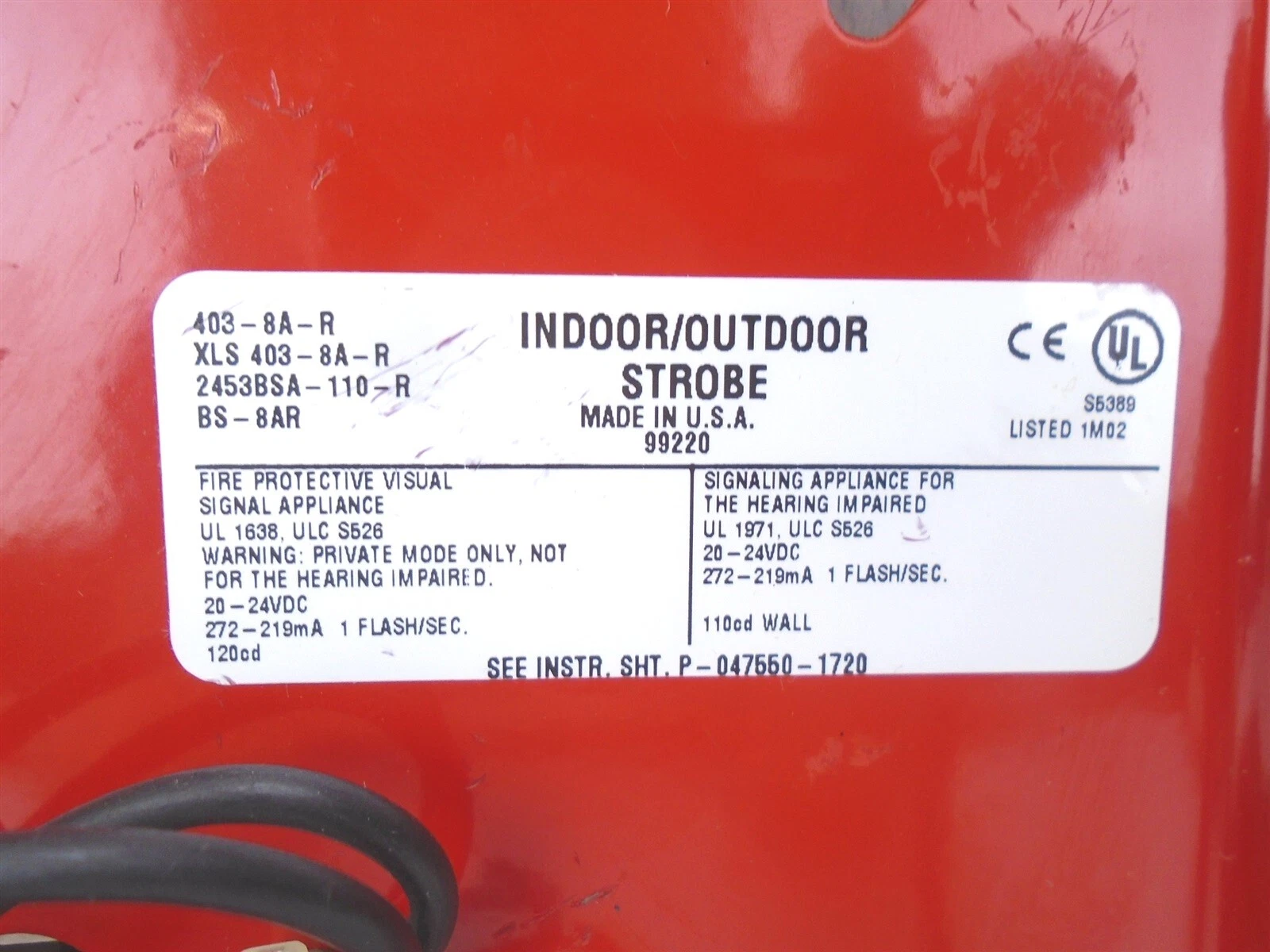

403-8A-R[93][94][95][96][97][98][99][100][101][102][103] 110 Red

References

  1. ↑ https://firealarms.tv/collection/est-202-7a-001/
  2. ↑ https://files.schuminweb.com/odds-and-ends/alarm-collection/full-size/edwards-202-8a-001-01.jpg
  3. ↑ https://files.schuminweb.com/odds-and-ends/alarm-collection/full-size/edwards-202-8a-101-01.jpg
  4. ↑ https://i.ebayimg.com/images/g/PIkAAOSw3Zll~LFY/s-l1600.jpg
  5. ↑ https://myeddie.edwardsfiresafety.com/Media/Catalog%20Sheets/E85001-0369%20--%20202%20Synchronized%20Strobe.pdf
  6. ↑ https://www.buyfirealarmparts.com/shop/est-202-7a-t.html
  7. ↑ https://i.ebayimg.com/images/g/KicAAOSwk~xct4Bb/s-l400.jpg
  8. ↑ https://i.ebayimg.com/images/g/~gsAAOSwRjJmIoXb/s-l400.jpg
  9. ↑ https://thefirealarmsupplier.com/cdn/shop/products/edwards-202-8a-t-678493.jpg?v=1720967671&width=1200
  10. ↑ https://firealarm.com/wp-content/uploads/2020/11/Edwards-EST-202-7A-TW-2.jpg
  11. ↑ https://i.ebayimg.com/images/g/C~MAAOSwQVxmIoKu/s-l400.jpg
  12. ↑ https://thefirealarmsupplier.com/cdn/shop/products/edwards-202-8a-tw-147650.jpg?v=1720968209&width=1200
  13. ↑ https://i.ebayimg.com/images/g/CrYAAOSwy5Ja4emb/s-l1200.jpg
  14. ↑ https://i.ebayimg.com/images/g/RSIAAOSwux5YXAQZ/s-l1200.jpg
  15. ↑ http://ponmaniinternational.com/wp-content/uploads/2016/03/405H.pdf
  16. ↑ https://i.ebayimg.com/images/g/Dh8AAOSw0pxnkAHH/s-l1200.jpg
  17. ↑ https://i.ebayimg.com/images/g/chUAAOSwoP9mkAIp/s-l1200.jpg
  18. ↑ https://i.ebayimg.com/images/g/IOQAAOSwMSpjdSzj/s-l1200.jpg
  19. ↑ https://i.ebayimg.com/images/g/owEAAOSwxLlnhTgQ/s-l1200.jpg
  20. ↑ https://i.ebayimg.com/images/g/gmYAAOSwG4llz-TF/s-l1200.jpg
  21. ↑ https://i.ebayimg.com/images/g/DB8AAOSwwuxmxgmf/s-l1200.jpg
  22. ↑ https://i.ebayimg.com/images/g/vswAAOSwAaZkGARM/s-l1200.jpg
  23. ↑ https://i.ebayimg.com/images/g/p1sAAOSwUU1jA-A4/s-l1200.png
  24. ↑ https://i.ebayimg.com/images/g/lnEAAOSwEu1i6uZ4/s-l1200.jpg
  25. ↑ https://i.ebayimg.com/images/g/F74AAOSw6WFm9BiC/s-l1200.png
  26. ↑ https://firealarms.tv/collection/est-757-5a-hs/
  27. ↑ https://m.youtube.com/watch?v=Xyb6FMMtBAU&pp=ygUJNzU3LTdBLUhT
  28. ↑ https://myeddie.edwardsfiresafety.com/Media/Catalog%20Sheets/E85001-0341%20--%20Temporal%20Horns%20and%20Horn-strobes.pdf
  29. ↑ https://i.ebayimg.com/images/g/3VsAAOSw~7Fl~KNs/s-l1200.png
  30. ↑ "Temporal Horns and Horn-strobes" (E85001-0341). Edwards (May 12, 2022).
  31. ↑ https://upload.wikimedia.org/wikipedia/commons/7/71/Edwards_EST_757-7A-T.jpg
  32. ↑ https://thefirealarmsupplier.com/products/edwards-757-3a-t
  33. ↑ https://thefirealarmsupplier.com/products/edwards-757-4a-t
  34. ↑ https://i.ebayimg.com/images/g/~8YAAOSwWjlnid7g/s-l1200.jpg
  35. ↑ https://i.ebayimg.com/images/g/pD8AAOSwMipnIWA7/s-l1200.jpg
  36. ↑ https://thefirealarmsupplier.com/products/edwards-757-7a-tw
  37. ↑ https://i.ebayimg.com/images/g/KfMAAOSw2MFkggpH/s-l1200.jpg
  38. ↑ https://thefirealarmsupplier.com/cdn/shop/products/edwards-757-8a-tw-111427.jpg?v=1719577609&width=1200
  39. ↑ https://firealarms.tv/collection/est-757h-15ps/
  40. ↑ https://firealarms.tv/collection/est-757h-75ps/
  41. ↑ https://www.kele.com/assets/view/e58569d198abe14fd3f8eefe3f9d26d9c7bdf409/868str-a-aq_product_datasheet.pdf
  42. ↑ https://i.ebayimg.com/images/g/c~4AAOSwaMNn4vGS/s-l1600.webp
  43. ↑ https://i.ebayimg.com/images/g/CW8AAOSwx3Rn4vGa/s-l1600.webp
  44. ↑ https://i.ebayimg.com/images/g/jKgAAOSwd6Fn4vGl/s-l1600.webp
  45. ↑ https://i.ebayimg.com/images/g/j0gAAOSwWTRn4vGt/s-l1600.webp
  46. ↑ https://i.ebayimg.com/images/g/hpYAAOSwVINn4vHC/s-l1600.webp
  47. ↑ https://i.ebayimg.com/images/g/l70AAOSwZxRn4vHL/s-l1600.webp
  48. ↑ https://i.ebayimg.com/images/g/vFAAAOSwZPRn4vGz/s-l1600.webp
  49. ↑ https://myeddie.edwardsfiresafety.com/Media/Catalog%20Sheets/E85001-0315%20--%20Integrity%20Speaker%20and%20Speaker-Strobe.pdf
  50. ↑ https://i.ebayimg.com/images/g/JrsAAOSwZhNnZZem/s-l1200.jpg
  51. ↑ https://www.buyfirealarmparts.com/shop/757-7a-ss25.html
  52. ↑ https://www.ebay.com/itm/156451959694?_skw=757-8A-SS25&itmmeta=01JJTZ889TDCE8W946HJ5XM6J2&hash=item246d43738e:g:st4AAOSwcYlnCBDA&itmprp=enc%3AAQAJAAAA4HoV3kP08IDx%2BKZ9MfhVJKneje5sclKUkz%2BOeYOk15hYsfR8WGn86JH4LkrTK4hqRz1UHsKZISQvRv810w65f5X15btkvVHJPTLYqitQL8LIl6WjaNvO2yyk1T0c8aWFjbfhyMzDhkTbZACYb86rr5ksiknX5yQuUYKzpLbLLNSMYxzgNJgrNCuDL4qv0zojWPOFJDO9EtvoxhVwB%2F5CzI44zGB0lkAv5R4Q59IB7ai%2FM21TggBebCak2xIT4%2FpjBeDEmQxbWWdQvXcMiCC3mqNKJQnEyH5kzns1Fju8DPhN%7Ctkp%3ABFBMgIWh35Zl
  53. ↑ https://thefirealarmsupplier.com/products/edwards-757-7a-ss25w
  54. ↑ https://thefirealarmsupplier.com/products/edwards-757-8a-ss25w
  55. ↑ https://thefirealarmsupplier.com/products/edwards-757-7a-ss70
  56. ↑ https://www.ebay.com/itm/175507877398
  57. ↑ https://m.youtube.com/watch?v=CqyQmRLUPcU&pp=ygULNzU3LThBLVNTNzA%3D
  58. ↑ https://i.ebayimg.com/images/g/5NAAAOSw8OtlOnHG/s-l1200.jpg
  59. ↑ https://thefirealarmsupplier.com/products/edwards-757-7a-ss70w
  60. ↑ https://thefirealarmsupplier.com/products/edwards-757-7a-rs25
  61. ↑ https://myeddie.edwardsfiresafety.com/Media/Catalog%20Sheets/E85001-0317%20--%20Integrity%20Re-entrant%20Speaker%20and%20Speaker-Strobe.pdf
  62. ↑ https://i.ebayimg.com/images/g/V1EAAOSwz05nDxav/s-l1200.png
  63. ↑ https://thefirealarmsupplier.com/products/edwards-757-8a-rs25
  64. ↑ https://thefirealarmsupplier.com/products/edwards-757-8a-rs25w
  65. ↑ https://thefirealarmsupplier.com/products/edwards-757-7a-rs70
  66. ↑ https://thefirealarmsupplier.com/products/edwards-757-3a-rs70
  67. ↑ https://i.ebayimg.com/images/g/LiwAAOSwqOFl0roO/s-l1200.jpg
  68. ↑ https://thefirealarmsupplier.com/products/edwards-757-7a-rs70w
  69. ↑ https://thefirealarmsupplier.com/products/edwards-757-3a-rs70w
  70. ↑ https://thefirealarmsupplier.com/products/edwards-757-8a-rs70w
  71. ↑ https://i.ebayimg.com/images/g/bjYAAOSwoHloHfWu/s-l1600.webp
  72. ↑ https://i.ebayimg.com/images/g/AacAAOSwSjdoHfWT/s-l1600.webp
  73. ↑ https://i.ebayimg.com/images/g/1bwAAOSwqlpoHfWd/s-l1600.webp
  74. ↑ https://thefirealarmsupplier.com/products/edwards-965-5a-4rw
  75. ↑ https://thefirealarmsupplier.com/products/edwards-965-7a-4rw
  76. ↑ https://i.ebayimg.com/images/g/H7sAAOSwSMVnj7VE/s-l1600.webp
  77. ↑ https://i.ebayimg.com/images/g/gvMAAOSw63dl1XAw/s-l1200.jpg
  78. ↑ https://i.ebayimg.com/images/g/ZZIAAOSwdytl1XAw/s-l1600.webp
  79. ↑ https://i.ebayimg.com/images/g/rT0AAeSweVBnxIzp/s-l960.webp
  80. ↑ https://i.ebayimg.com/images/g/p9kAAeSwnUVnxIzi/s-l960.webp
  81. ↑ https://i.ebayimg.com/images/g/i8gAAeSwUGxnxIz0/s-l960.webp
  82. ↑ https://i.ebayimg.com/images/g/wvIAAeSwsRdnxIz8/s-l960.webp
  83. ↑ https://i.ebayimg.com/images/g/kf8AAeSwNYxnxIzQ/s-l960.webp
  84. ↑ https://i.ebayimg.com/images/g/wJkAAeSwiO1nxIza/s-l960.webp
  85. ↑ https://i.ebayimg.com/images/g/jpwAAOSwUJlZ36hC/s-l960.webp
  86. ↑ https://i.ebayimg.com/images/g/OvQAAOSwwm9mwINC/s-l1600.webp
  87. ↑ https://i.ebayimg.com/images/g/UAIAAOSw9WJmwINC/s-l1600.webp
  88. ↑ https://i.ebayimg.com/images/g/xYgAAOSwsg5mwIND/s-l1600.webp
  89. ↑ https://i.ebayimg.com/images/g/2R4AAOSwY-1mwINC/s-l1600.webp
  90. ↑ https://i.ebayimg.com/images/g/mToAAOSwm85jytEl/s-l1600.webp
  91. ↑ https://i.ebayimg.com/images/g/F5cAAOSwTT5jytEd/s-l1600.webp
  92. ↑ https://i.ebayimg.com/images/g/50MAAOSwWzJnn~JG/s-l1600.webp
  93. ↑ https://i.ebayimg.com/images/g/buQAAOSweDdlVTsP/s-l1600.webp
  94. ↑ https://i.ebayimg.com/images/g/Km4AAOSwO0plVTsR/s-l1600.webp
  95. ↑ https://i.ebayimg.com/images/g/KZcAAOSw2pBlVTsN/s-l1600.webp
  96. ↑ https://i.ebayimg.com/images/g/V-MAAOSwKihlVTsS/s-l1600.webp
  97. ↑ https://i.ebayimg.com/images/g/pjUAAOSwI-xlVTsU/s-l1600.webp
  98. ↑ https://i.ebayimg.com/images/g/XUMAAOSwGJ1lVTsW/s-l1600.webp
  99. ↑ https://i.ebayimg.com/images/g/tVkAAOSwiQ1lVTsY/s-l1600.webp
  100. ↑ https://i.ebayimg.com/images/g/RR4AAOSwddxlVTsa/s-l1600.webp
  101. ↑ https://i.ebayimg.com/images/g/O7MAAOSwiR5lVTse/s-l1600.webp
  102. ↑ https://i.ebayimg.com/images/g/eX8AAOSwYHhlVTsg/s-l1600.webp
  103. ↑ https://i.ebayimg.com/images/g/3QgAAOSwFERlVTsh/s-l1600.webp
Retrieved from "https://wiki.thefirepanel.com/index.php?title=Edwards_Integrity_series&oldid=3530"
