Silent Knight SKE-450 series

Silent Knight SKE-450

Manufacturer	Silent Knight {"label": "Manufacturer", "field": "Silent Knight"}
Series	SKE-450 {"label": "Series", "field": "SKE-450"}
Rated Voltage	25V RMS, 70.7V RMS {"label": "Rated Voltage", "field": "25V RMS, 70.7V RMS"}
Introduced	2001 {"label": "Introduced", "field": "2001"}
Preceded by	SKE-300, SKE-426 {"label": "Preceded by", "field": "SKE-300, SKE-426"}

{
    "rows": [],
    "title": "Silent Knight SKE-450",
    "images": [
        "Silent Knight SKE-450.png"
    ]
}

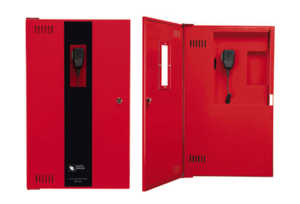

The SKE-450 is a voice evacuation control panel produced by Silent Knight.

History

The SKE-450 series was introduced in 2001, as an upgraded version of the SKE-426 (which had a very short run).

The Silent Knight SKE-450 is still being produced today, with a redesigned door to match the design of Silent Knight's recent products.

Specifications

The Silent Knight SKE-450 series features 50W of output power on either a 25V or 70.7V speaker circuit. The speaker circuit can be wired as Class A or B. The SKE-450 series also features a built-in supervised microphone that provides a system paging function and field message programming capability.

The system comes with 2 built-in messages (up to 30 seconds) and a 3rd message may be added (up to 45 seconds). Silent Knight also provides downloadable messages, free of charge.

The SKE-450 series has 2 alarm inputs and 2 Form-C relays for alarm and trouble.

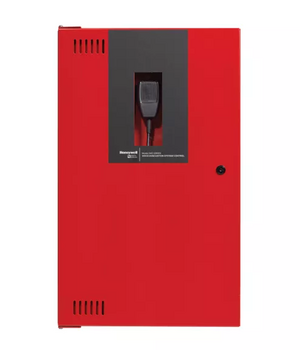

Silent Knight SKE-450 (New Style)

The SKE-450-ZN4/ZN6 comes equipped with a 4 or 6 zone splitter. Both splitters provide paging by zone or all call.

Each model has seven visual indicators to display alarm and different trouble conditions.

Models

Silent Knight SKE-450 Model Chart

Model	Description
SKE-450	Standard Voice Panel
SKE-450-ZN4	Voice Panel w/ 4 Zone Splitter
SKE-450-ZN6	Voice Panel w/ 6 Zone Splitter
SKE-V70	25V to 70.7V Circuit Voltage Converter
SKE-SRM	Supervised Remote Microphone

References

1. https://buildings.honeywell.com/us/en/products/by-category/fire-life-safety/public-address-and-voice-alarm/audio-system-controllers/ske-series-voice-evacuation-system#overview
2. https://prod-edam.honeywell.com/content/dam/honeywell-edam/hbt/en-us/documents/literature-and-specs/datasheets/350794.pdf
3. https://web.archive.org/web/20011109191414/http://silentknight.com/htmfiles/fire/SKE450.htm
4. https://web.archive.org/web/20011024220942/http://silentknight.com:80/htmfiles/pressrelease.htm

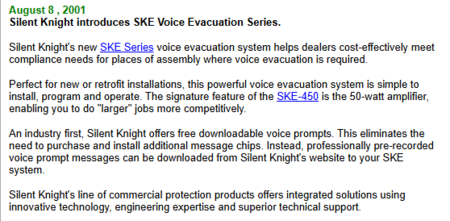

   Silent Knight's SKE-450 announcement from August 8th, 2001.
